SLMPRO1

Flush Face Post and Panel Signage System

The SLMPRO1 post and double panel system features a 1" cabinet style frame that attaches two panels with no visible retainers and no exposed fasteners for a frameless appearance. A polystyrene core 7/8" thick is chemically bonded to the panels for increased strength and durability. The frame assembly slides into slotted 2-1/4" square posts which carry the frame flush. Concealed locking squares hold the frame secure.


Perfect for Site Identification and Wayfinding

Our two panel all aluminum sign systems are designed to offer enhanced visual impact in a sturdy, dimensional non-illuminated format. They provide small to large–size signs intended for primary and secondary site identification, directional and informational applications.

Customizable Signage Options

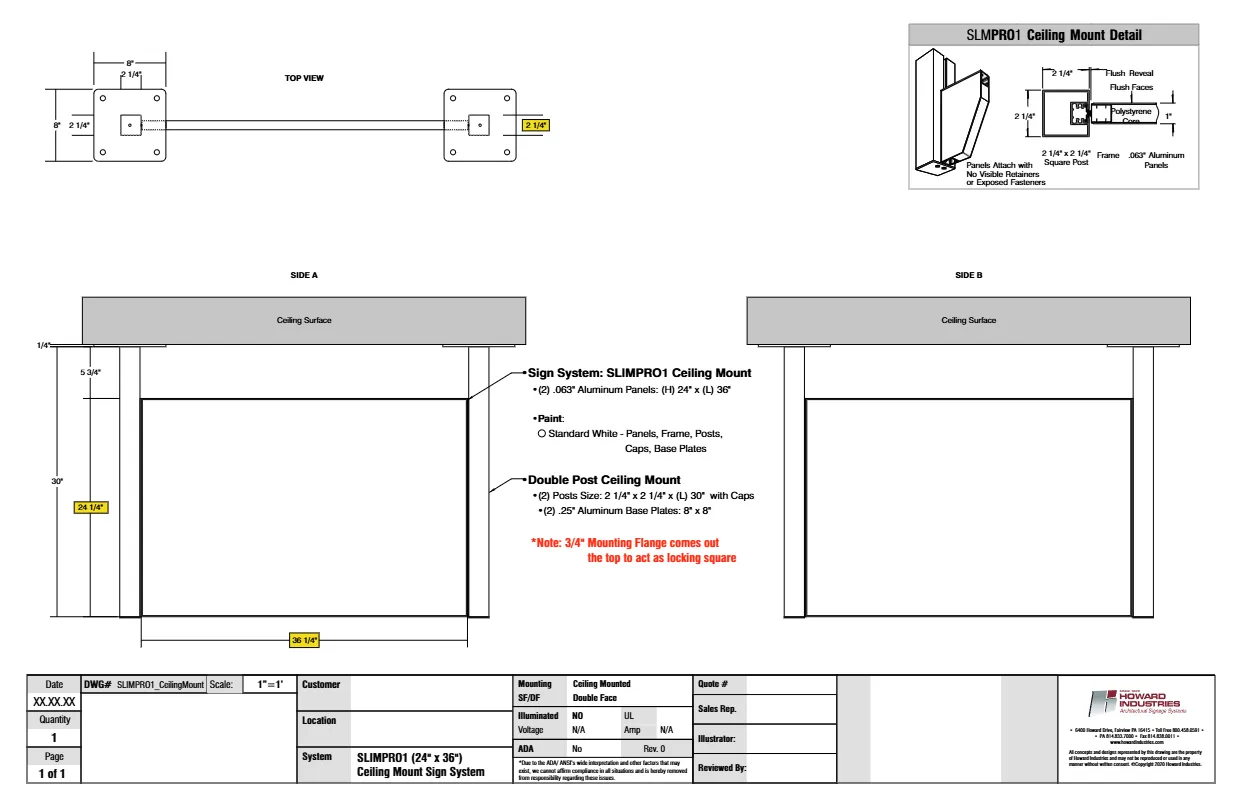

These signs are available in double post, flag, ceiling, and wall mount configurations. Choose from our 9 Standard Paint Colors (Satin Finish) or take advantage of our color matching capabilities and/or custom color options; all stock material finish is off-the-shelf primer white.



Often Used For

  • Directional Signage
  • Parking Signage
  • Regulatory Signage
  • Secondary Site Identification
slmpro1 penn state
Tech Specs

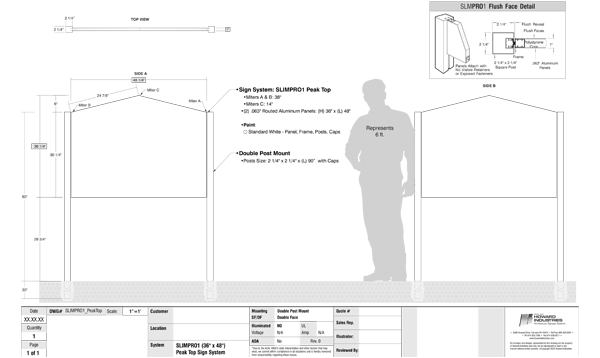

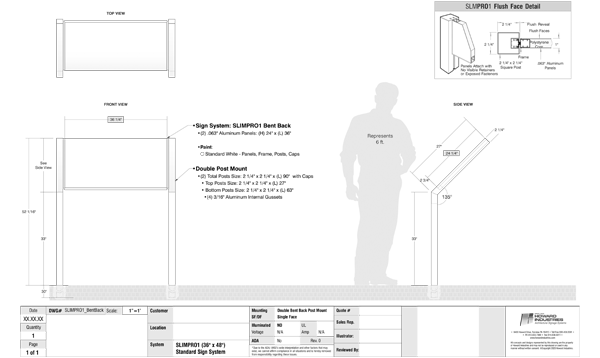

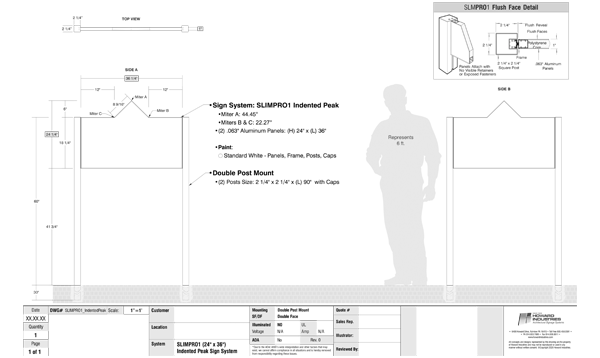

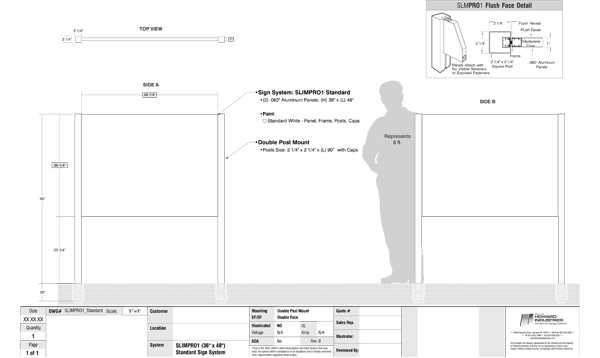

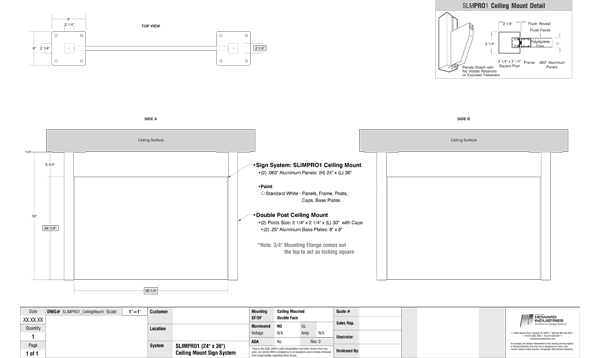

Drawings

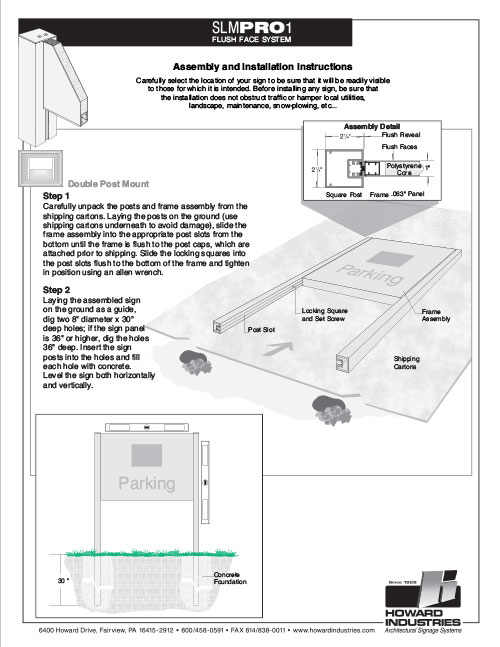

Installation
Videos

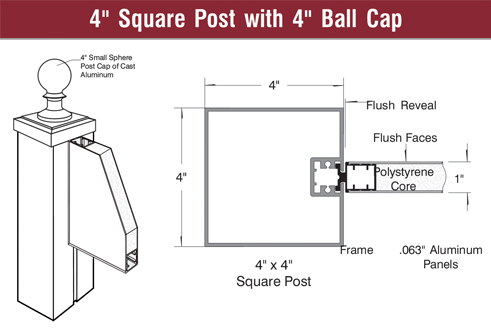

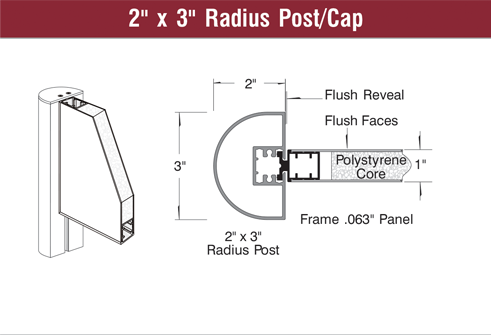

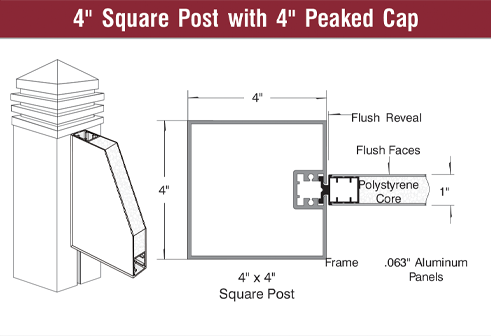

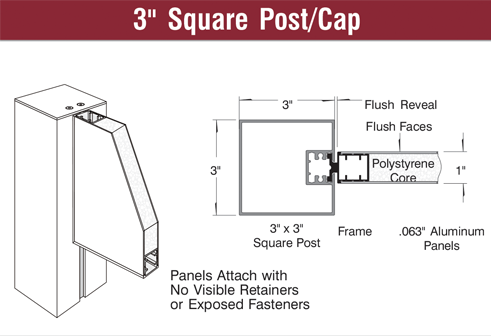

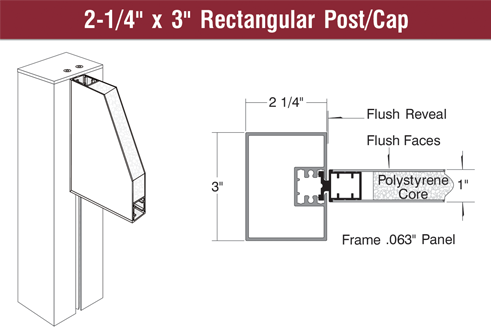

Post and Post Caps

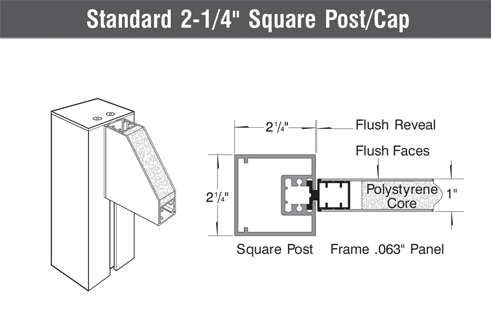

SLMPRO1 Technical Detail

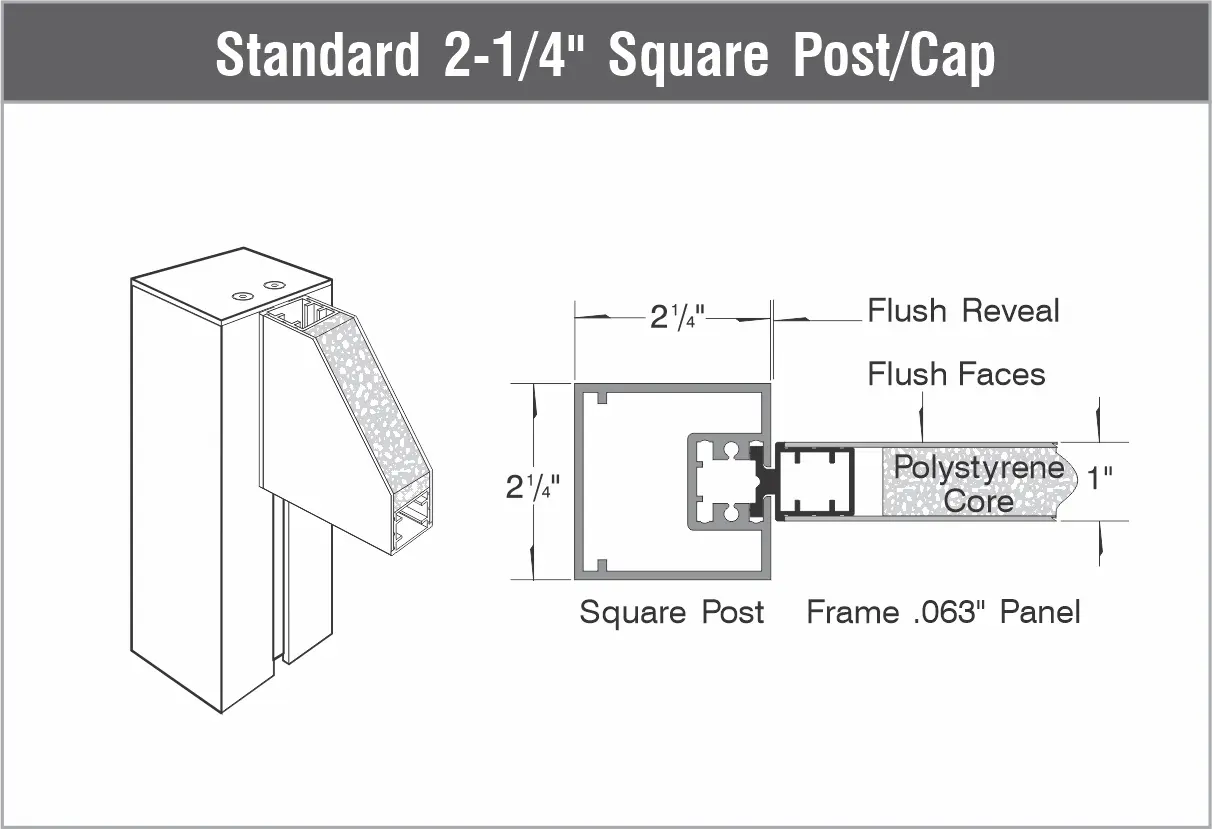

  1. Standard 2-1/4" square post
  2. Sign system offers a flush reveal
  3. Injected molded post cap
  4. SLMPRO1 top/bottom and side mounting frame
  5. .063" Aluminum message panel mounted with no visible retainer or fasteners
  6. 7/8" Insulating polystyrene core
  7. Locking Square with screw set

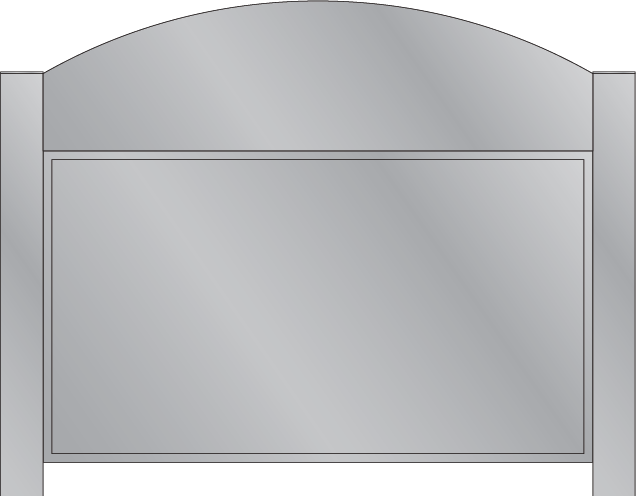

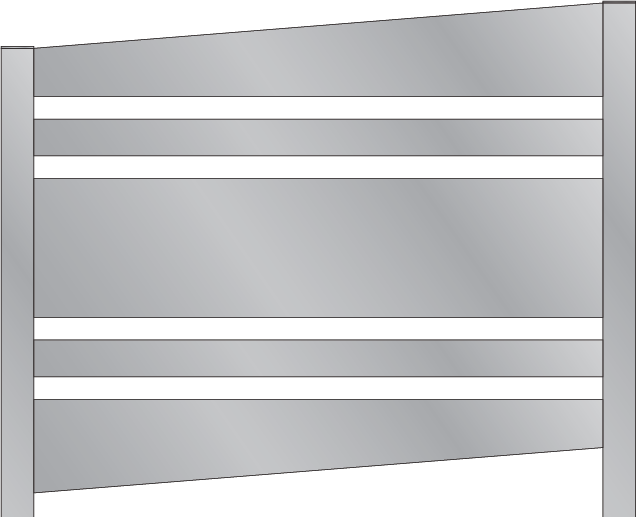

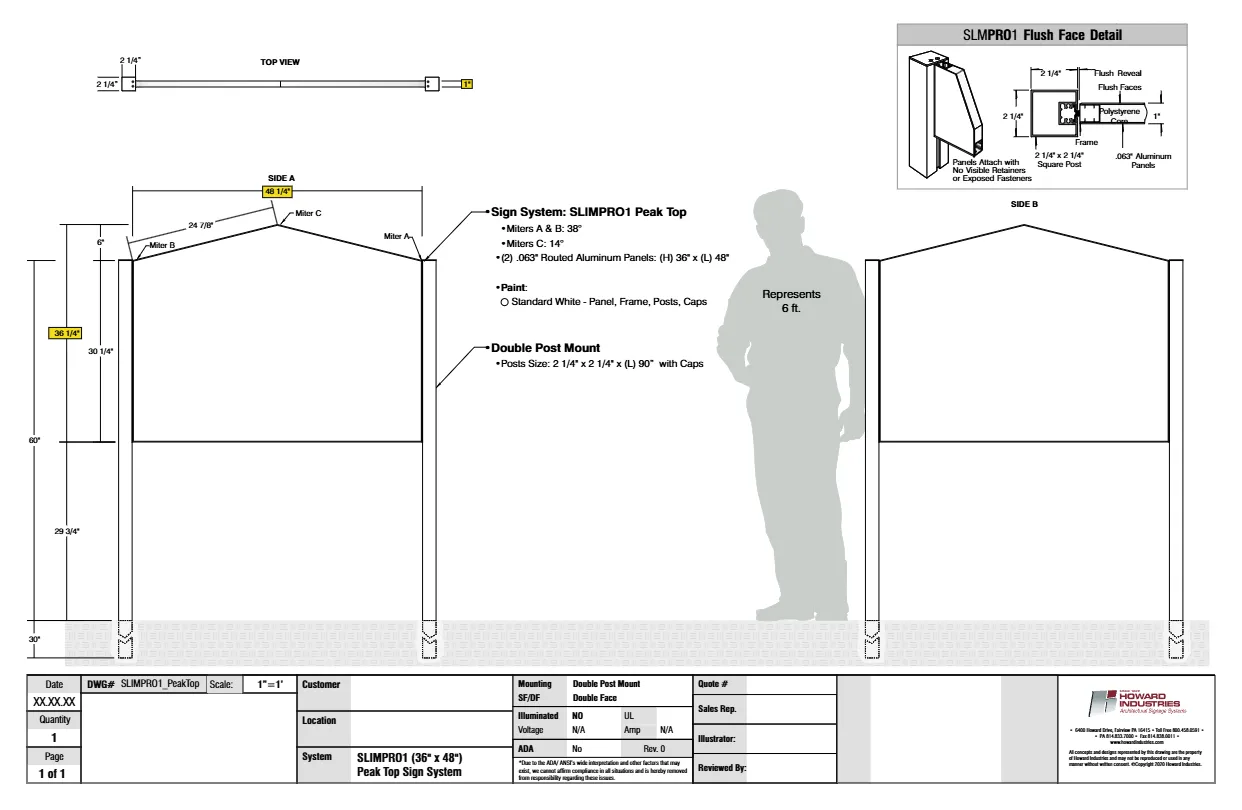

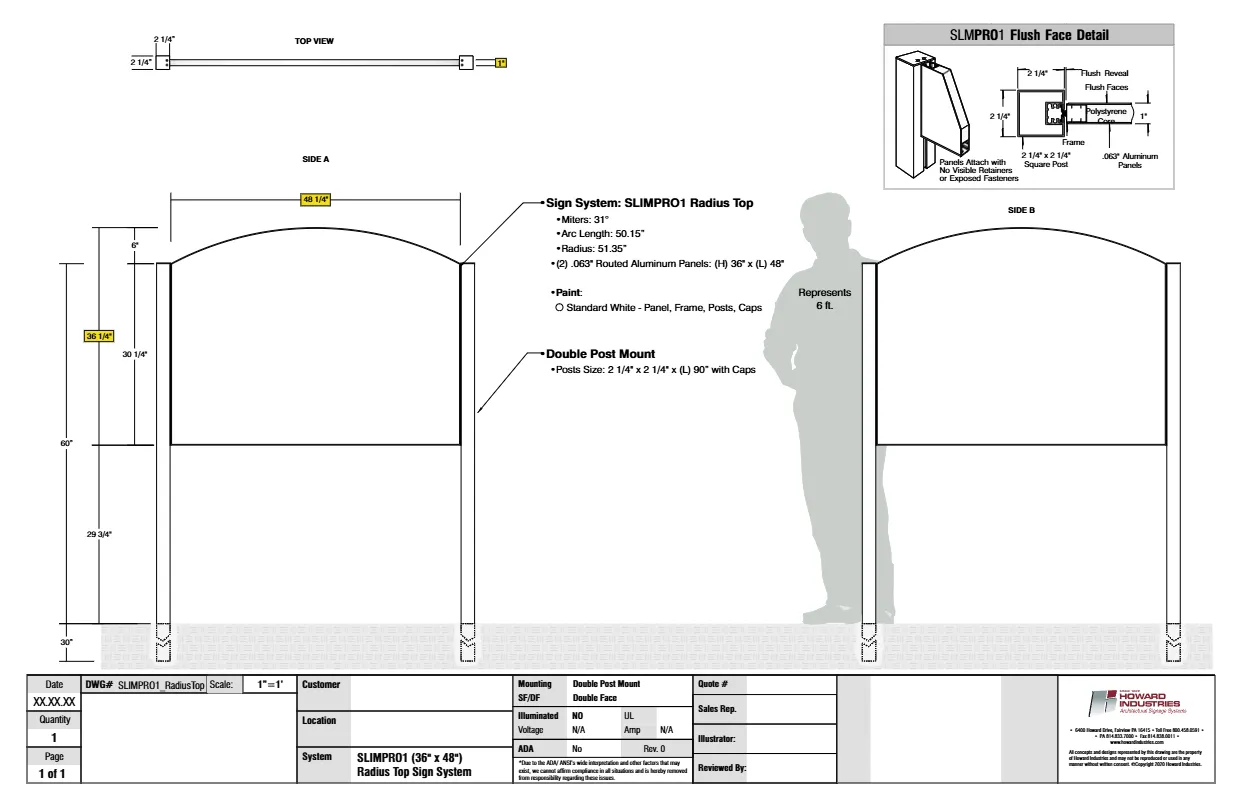

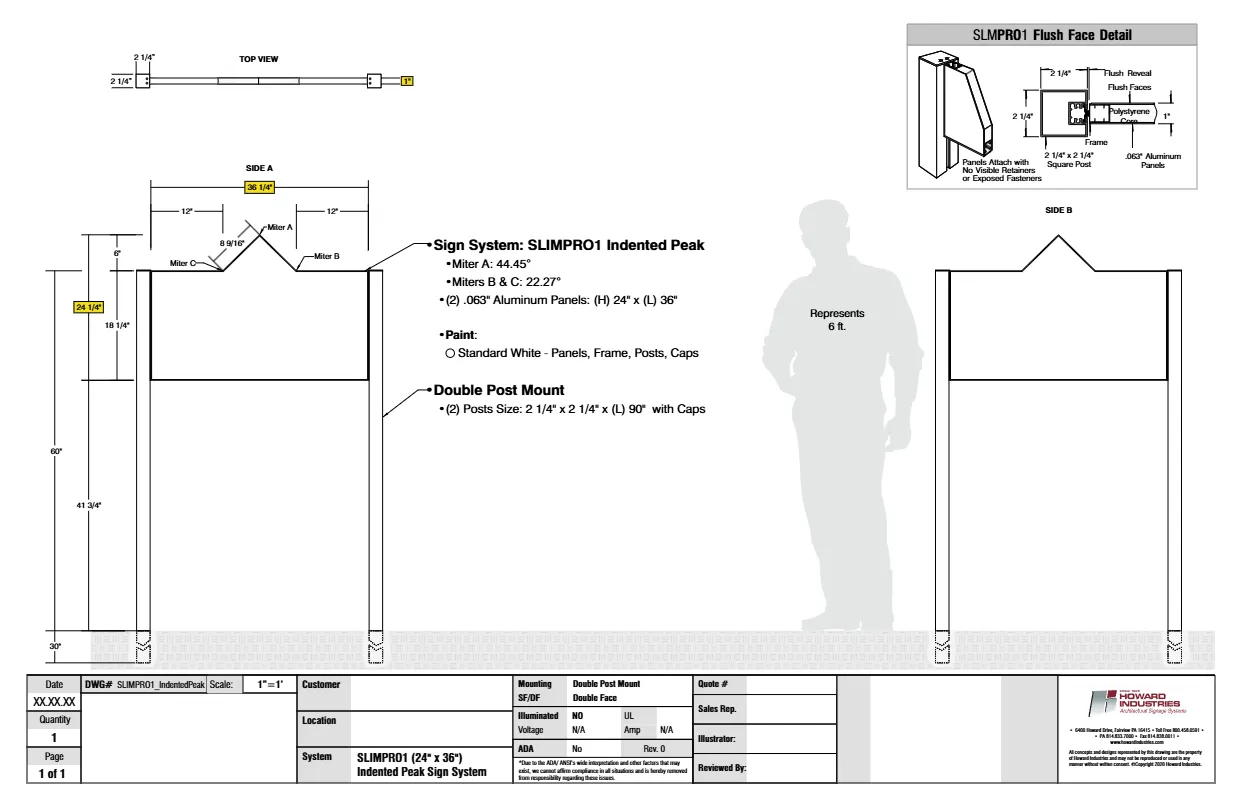

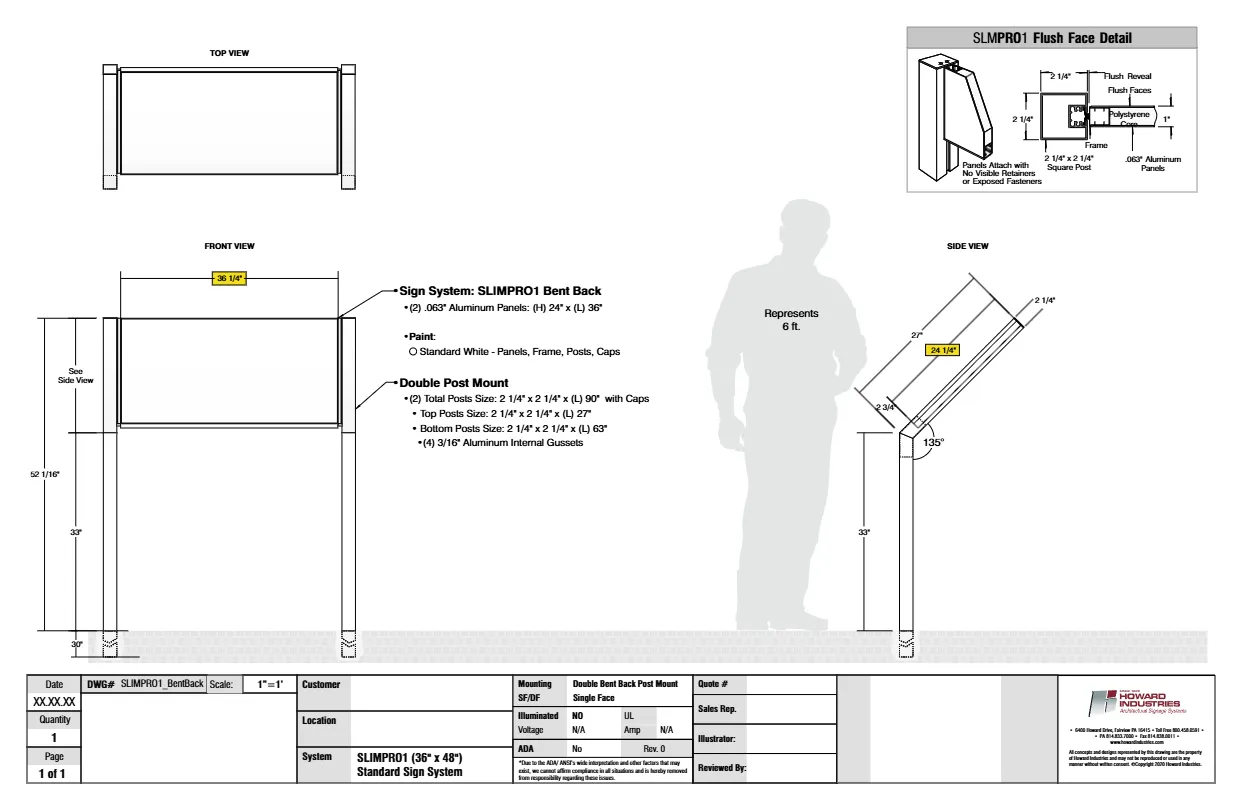

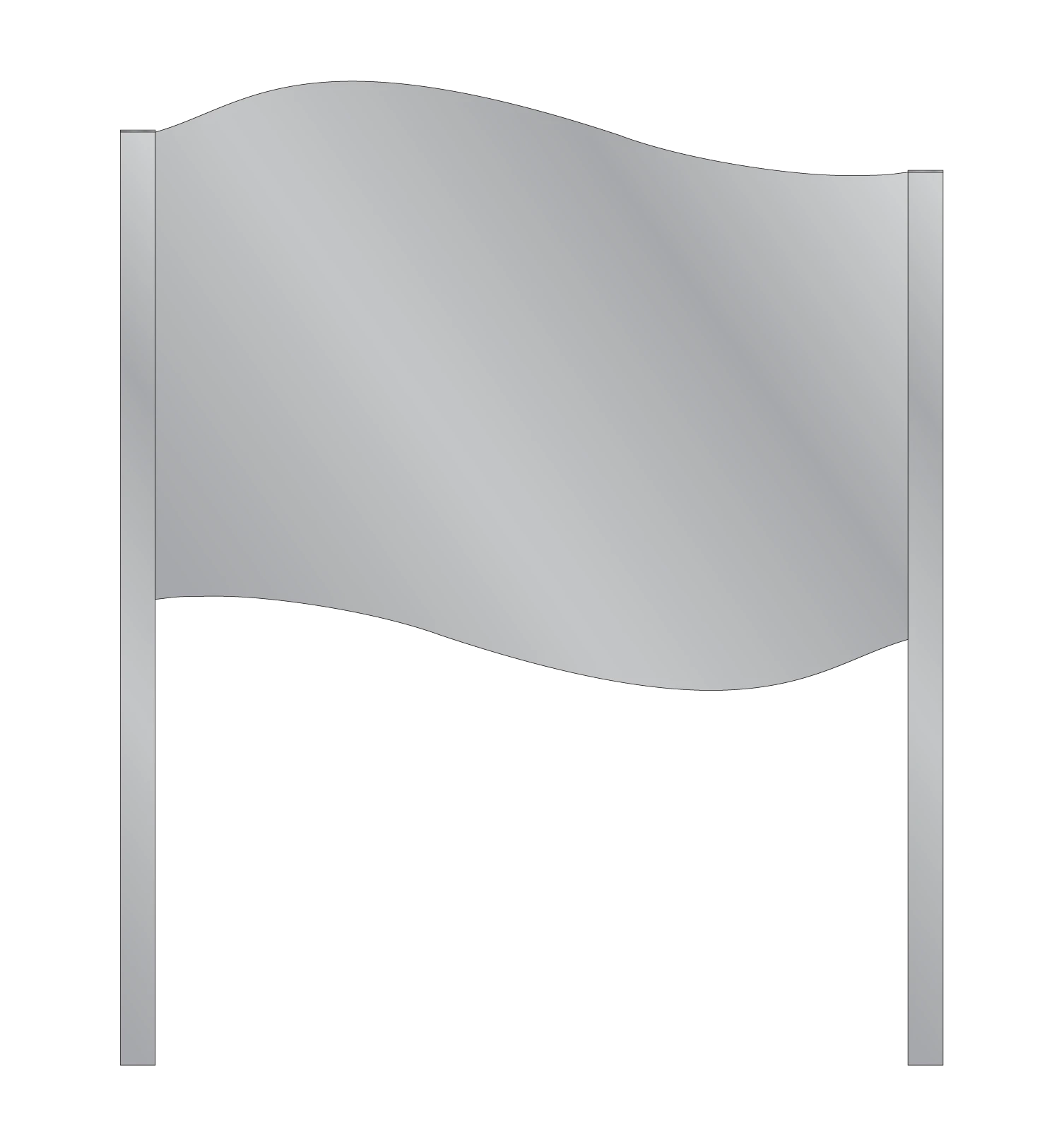

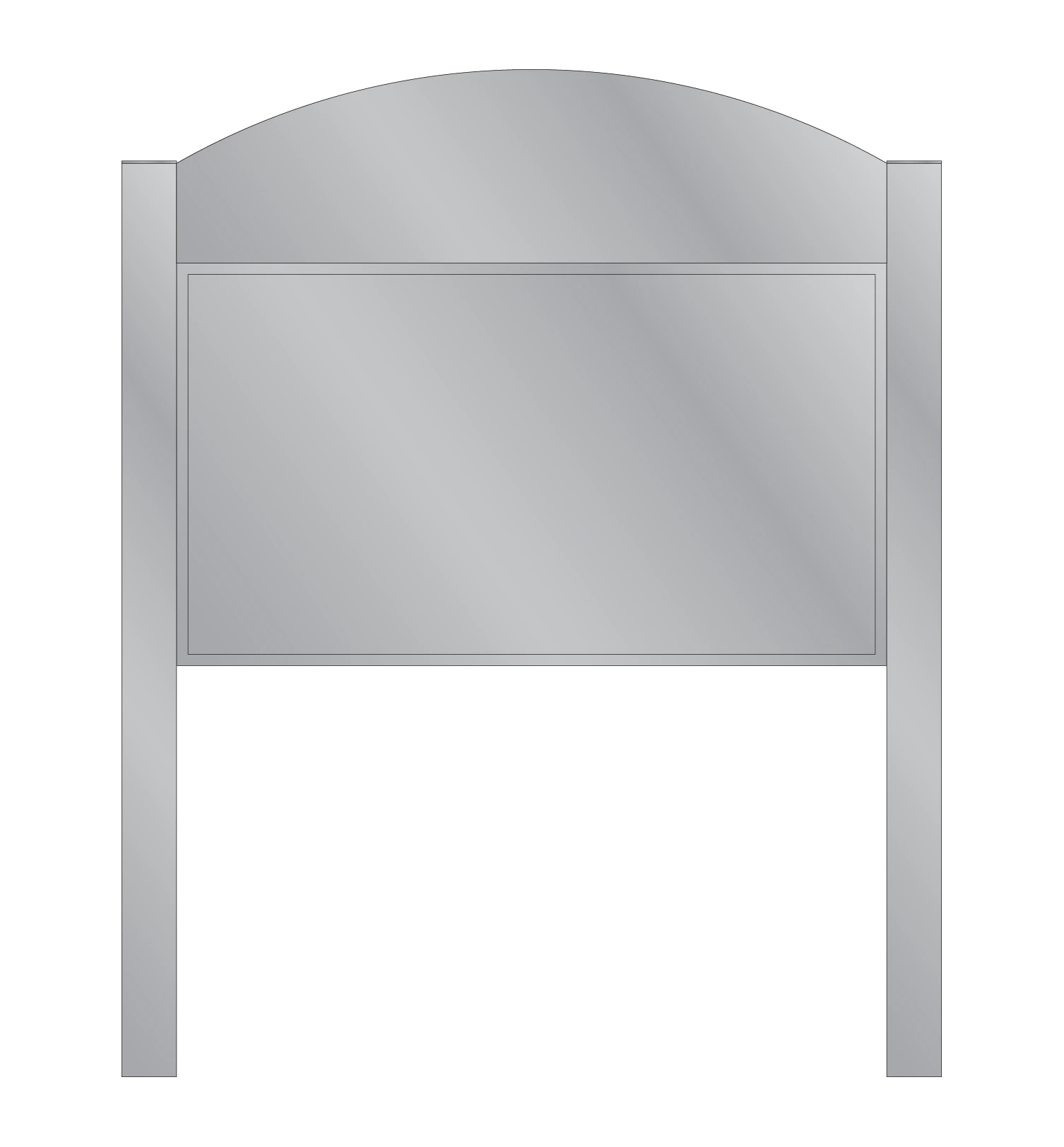

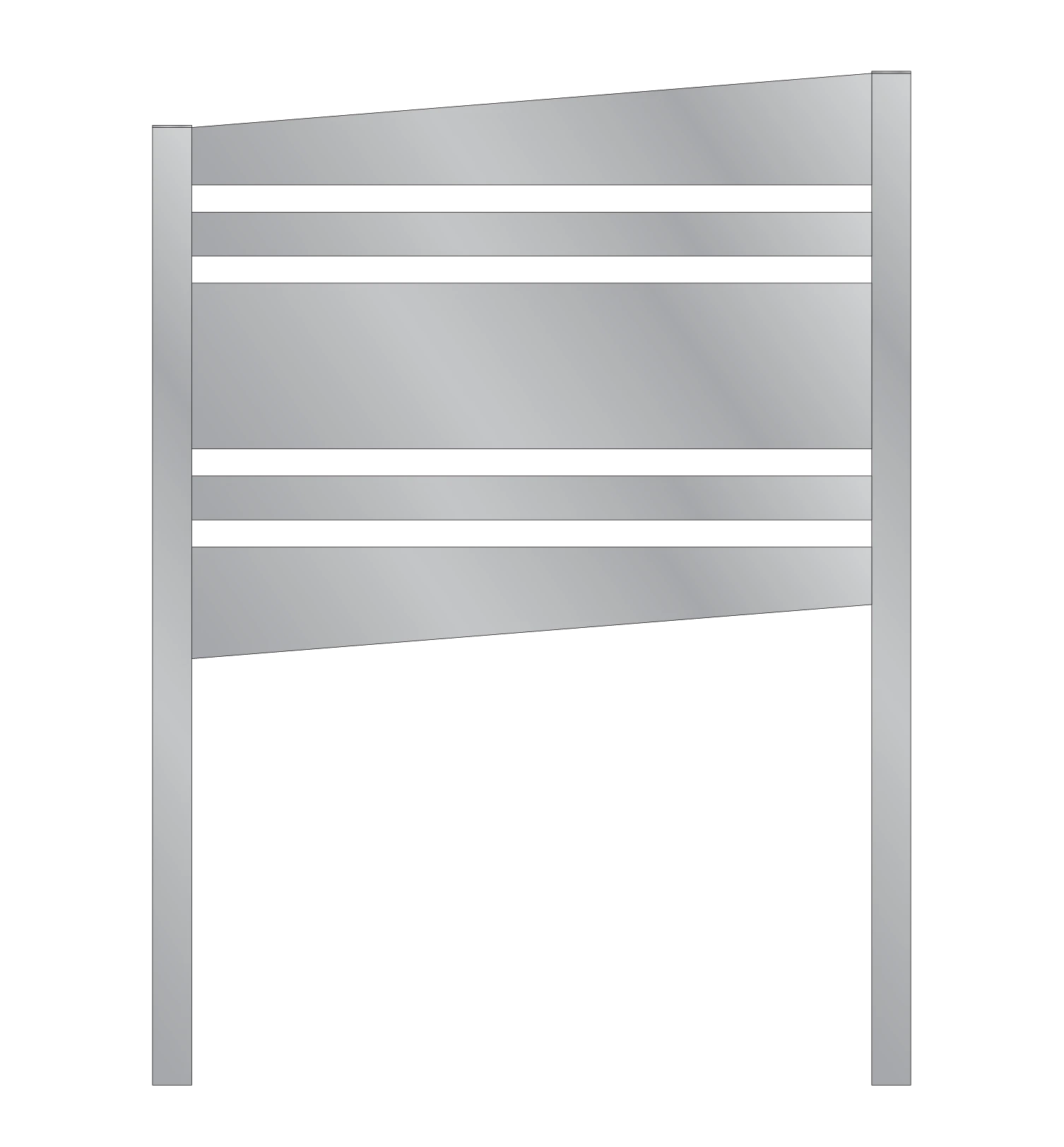

Popular Sign Tops

Max Size:
36" x 60"

Mounting Options:

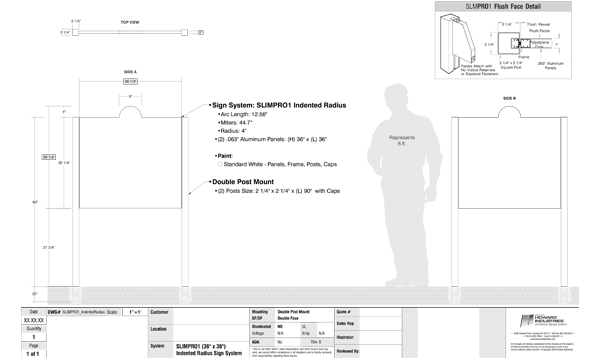

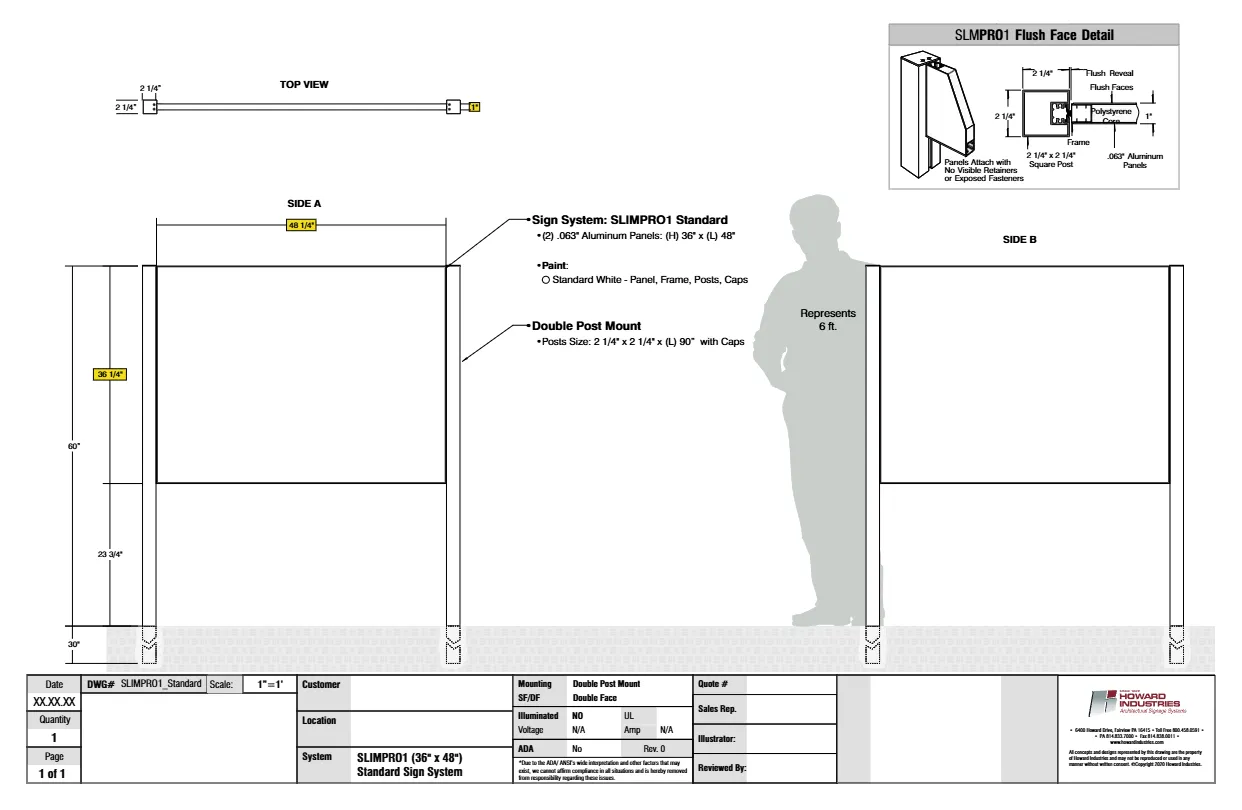

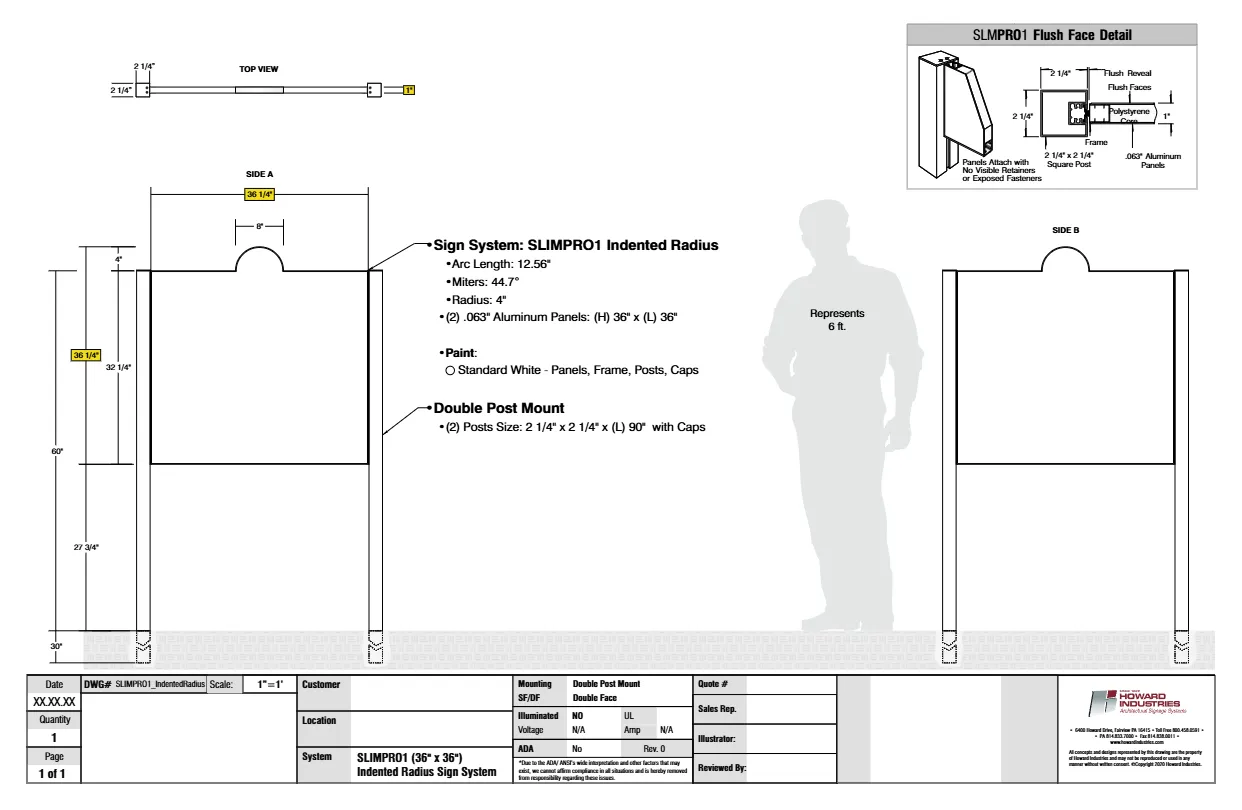

Double Post
Center Post

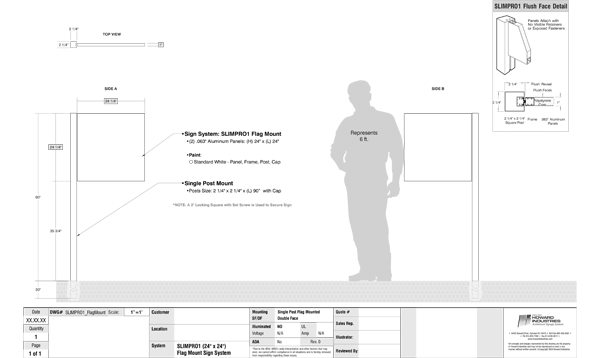

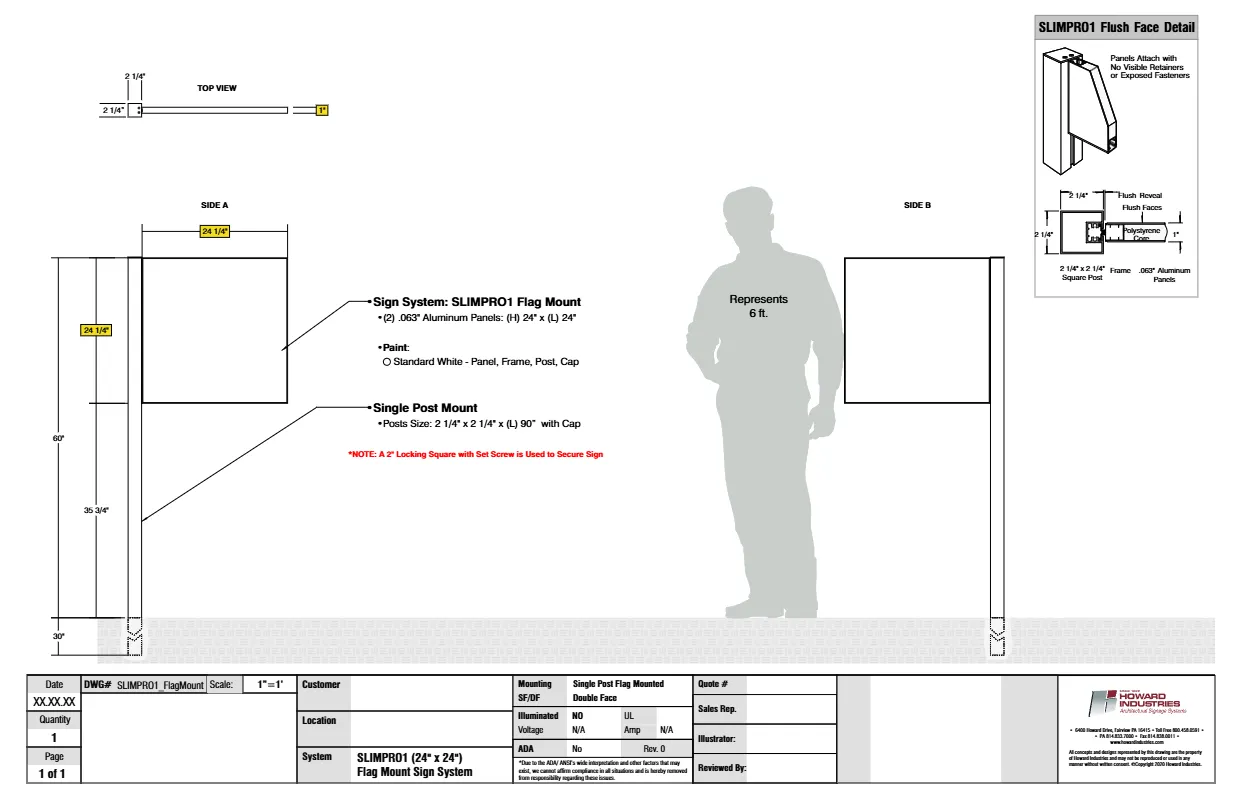

Flag

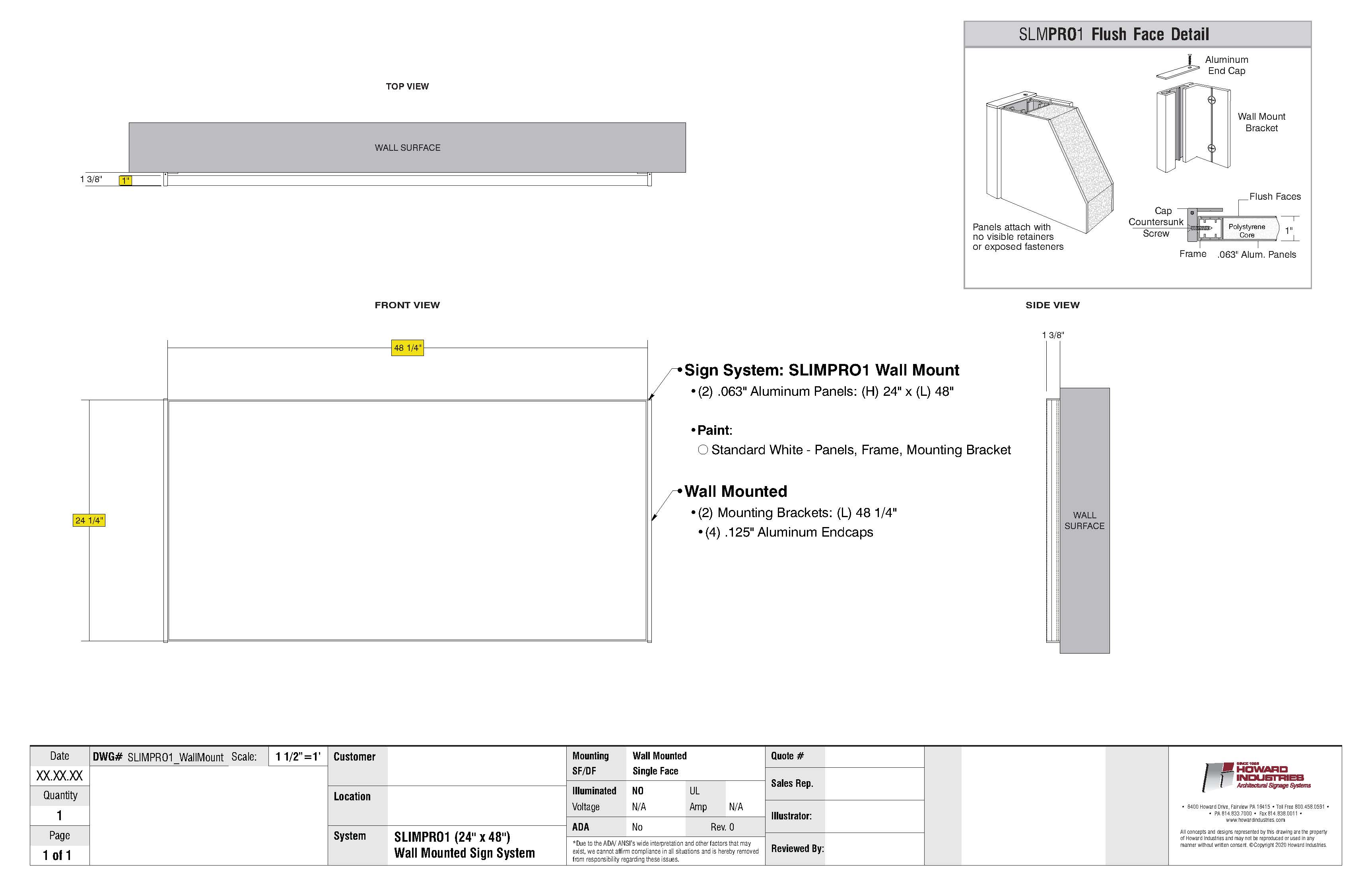

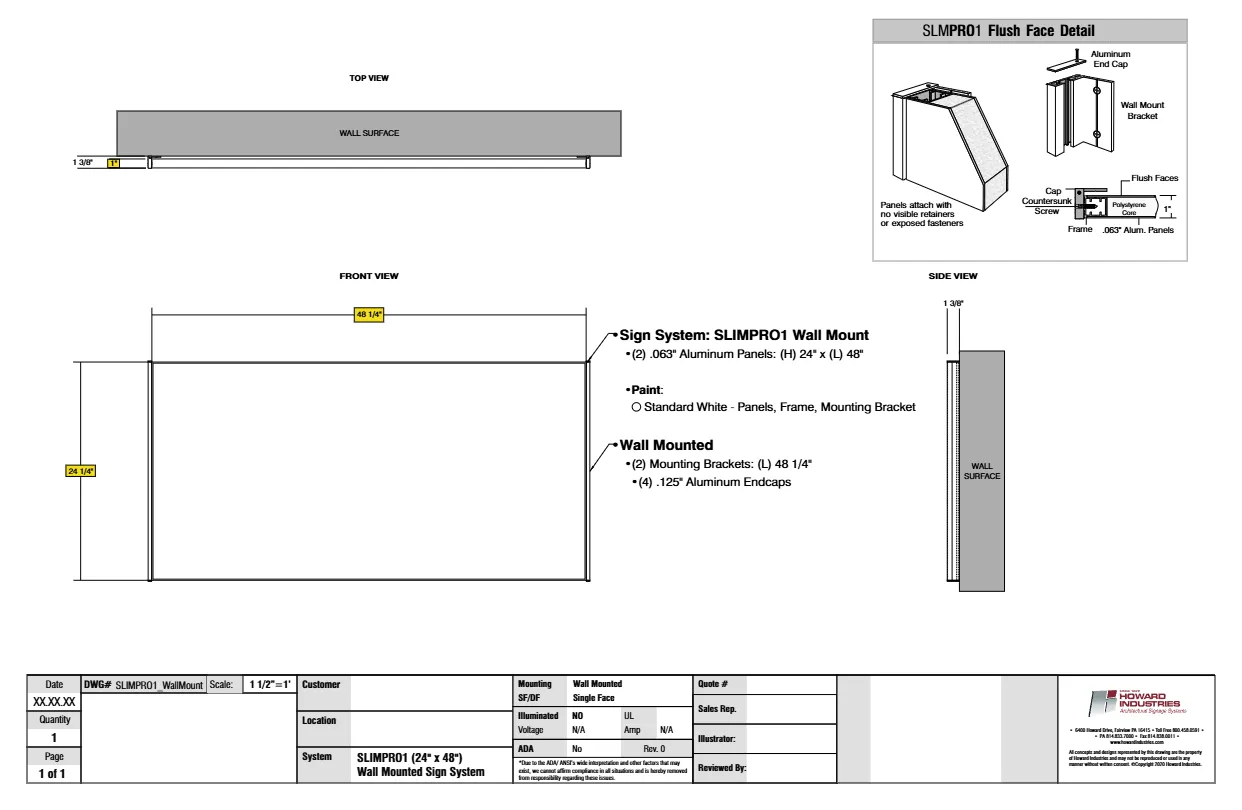

Wall

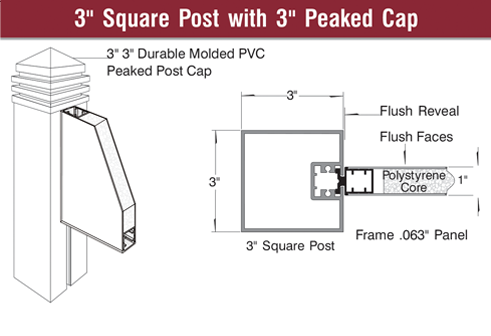

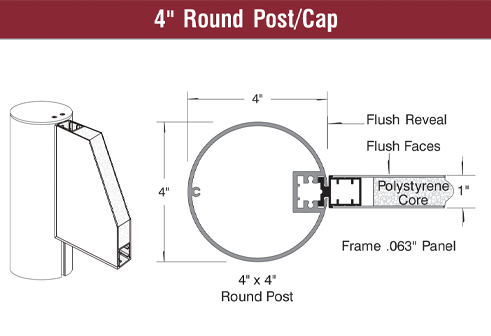

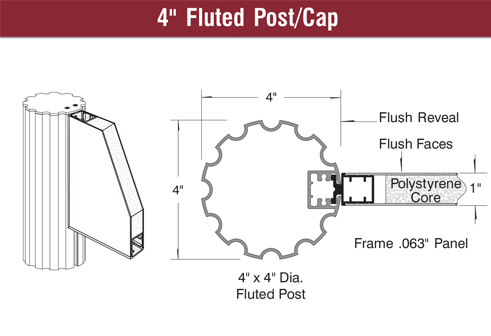

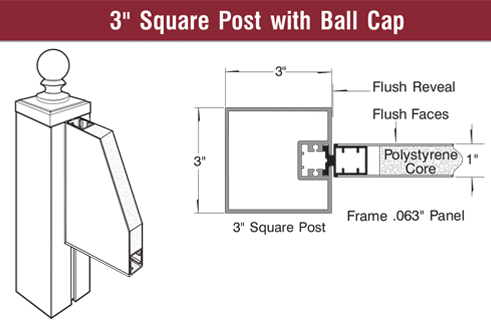

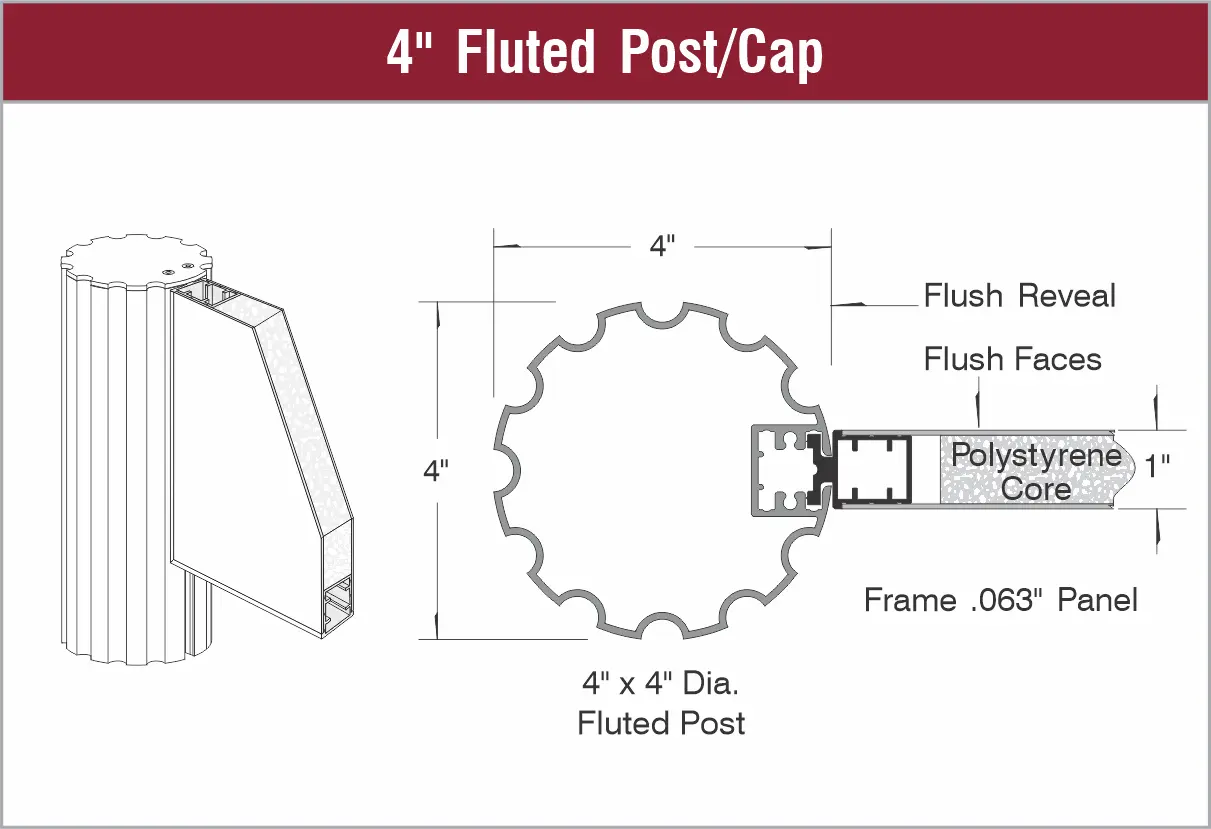

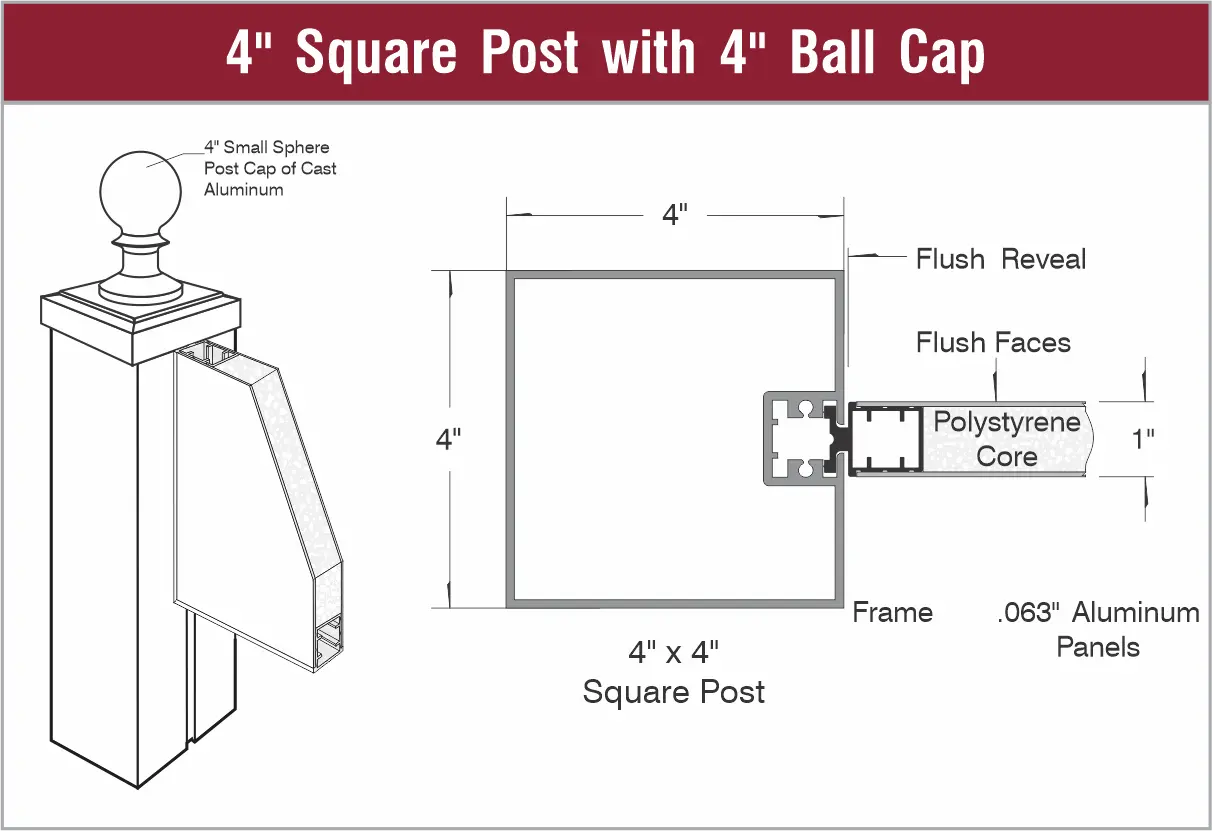

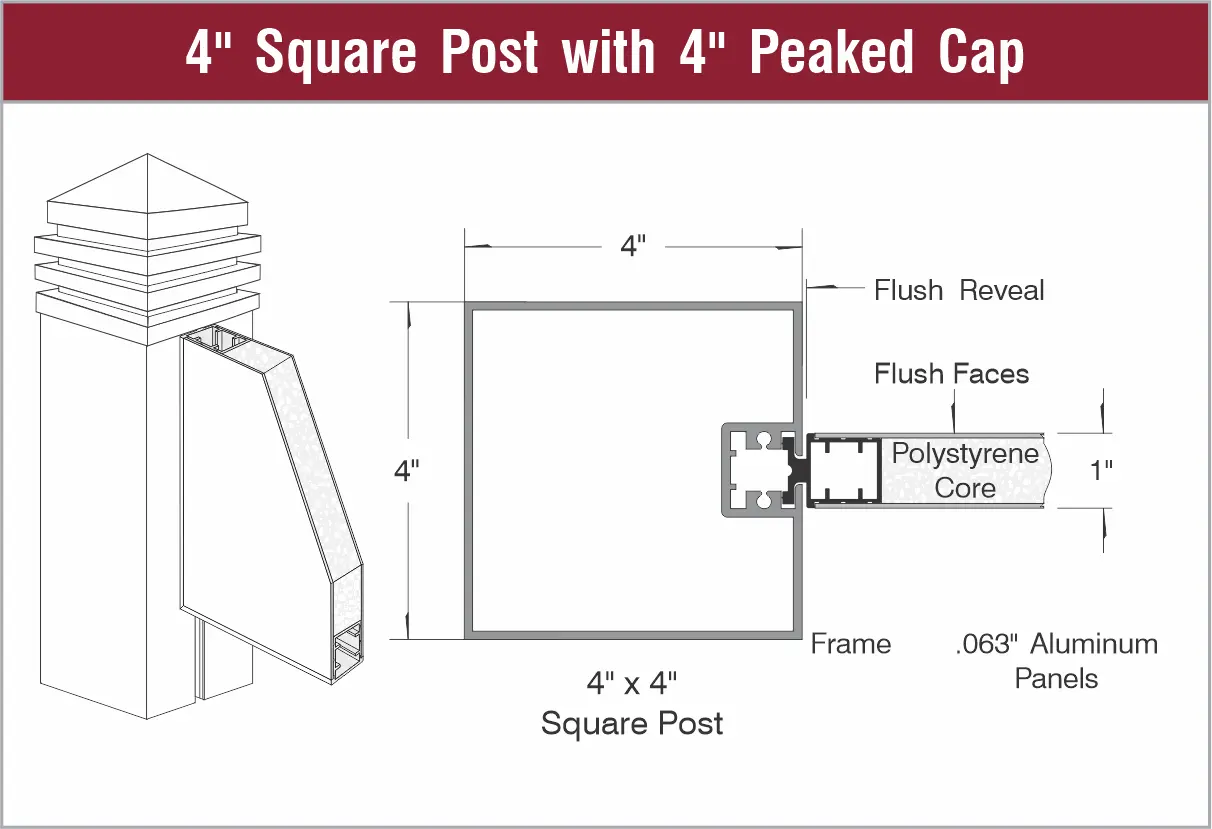

Decorative Post Caps
