HED I-FLEX

Illuminated or Non-Illuminated

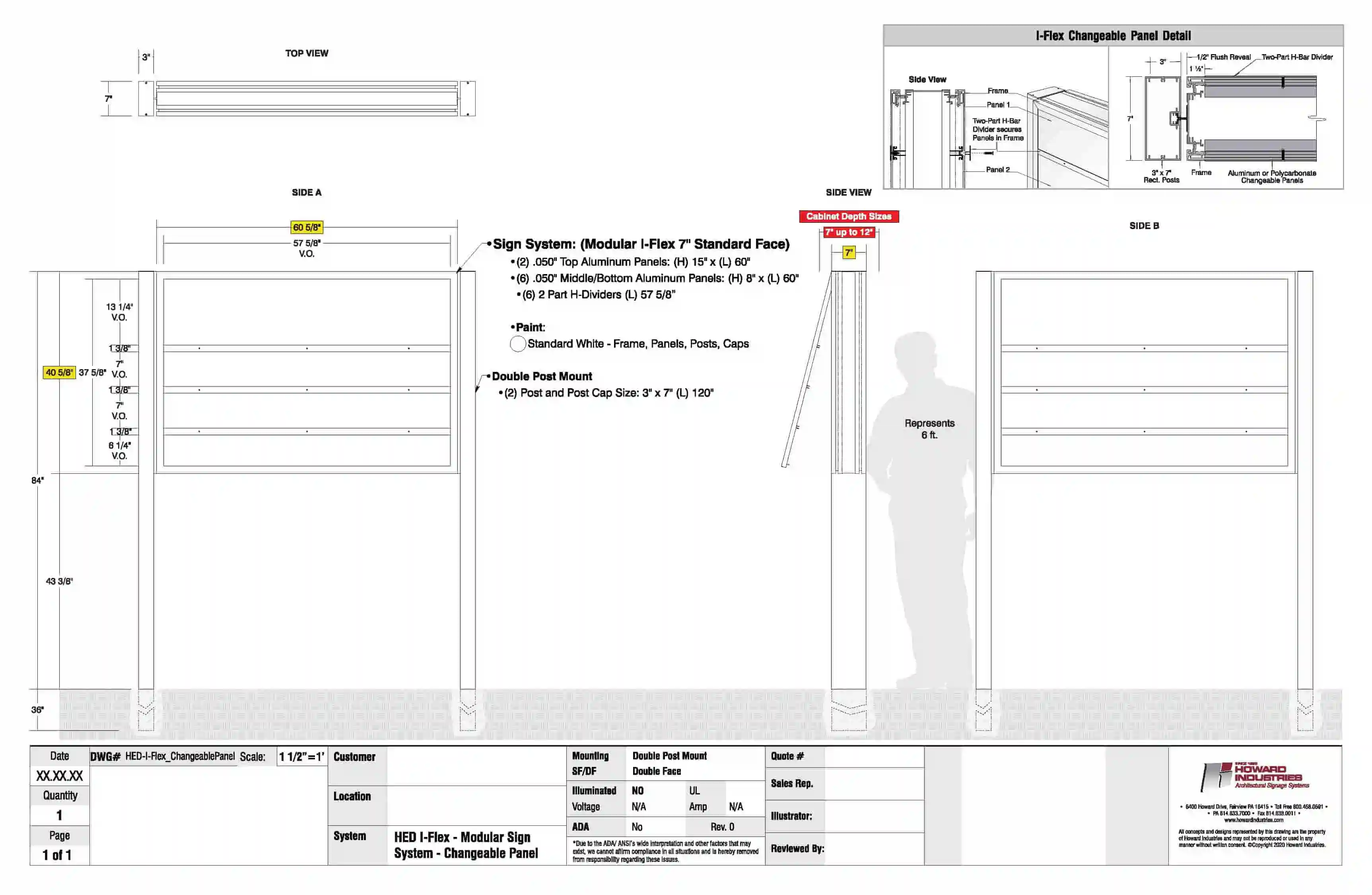

Introducing the most recent addition to our exterior signage systems — the HED I-FLEX versatile signage cabinet. This revolutionary sign system offers both flush and standard face alternatives, non-illuminated and illuminated capabilities, a myriad of cabinet depths increasing from 6” part H-bar divider, changeable seamless aluminum “Slide Panels” and twin hinge backlit changeable message system capabilities.

Large Scale Signs For Large Visual Impact

The HED I-FLEX provides large scale signs for primary and secondary site identification, directions and information. The HED I-FLEX system is adaptable for post and panel, wall mounted and pylon signs with internal posts and skirted bases. Like many of our other HED sign systems, the HED I-FLEX ’s frame can be fabricated into custom shapes for added allure. All stock material finish is off-the-shelf primer white or take advantage of our color matching capabilities and/or custom color options.



Often Used For

  • Directional Signage
  • Primary Site Identification
  • Secondary Site Identification
  • Tenant Listing

Lifting pins for larger signs available upon request

iflex stmarys
Tech Specs

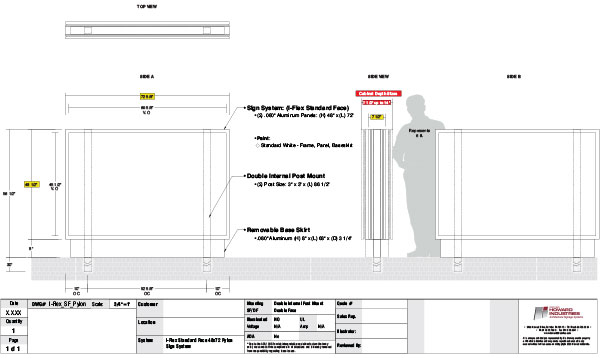

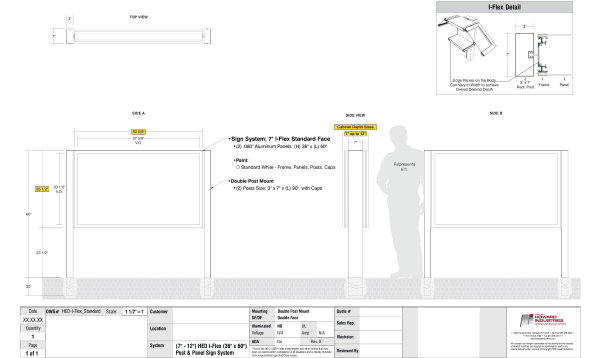

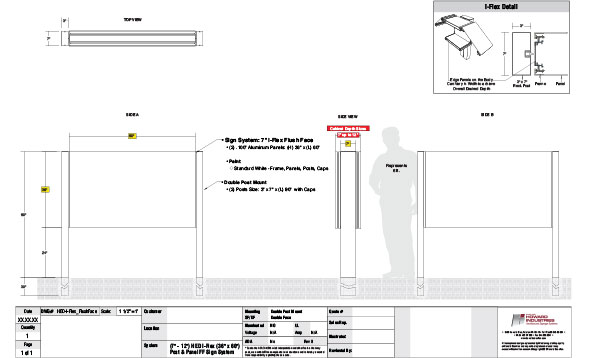

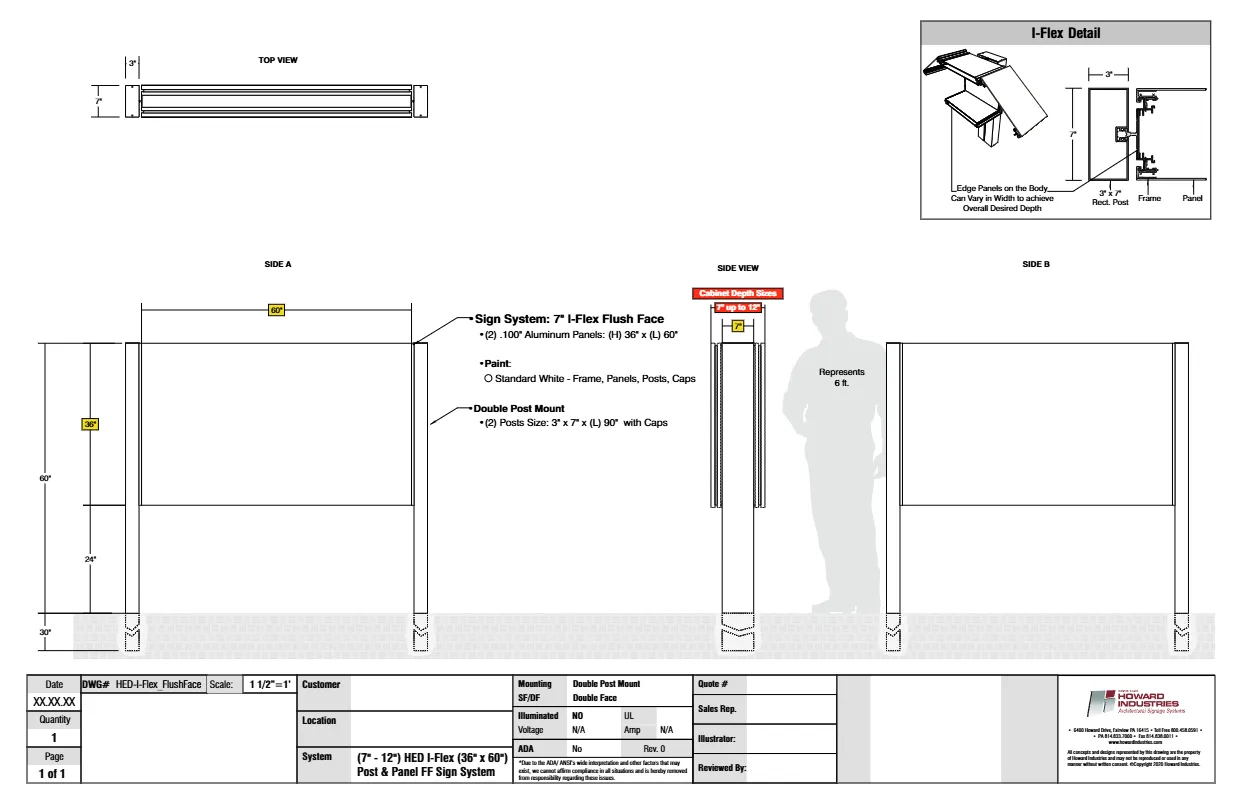

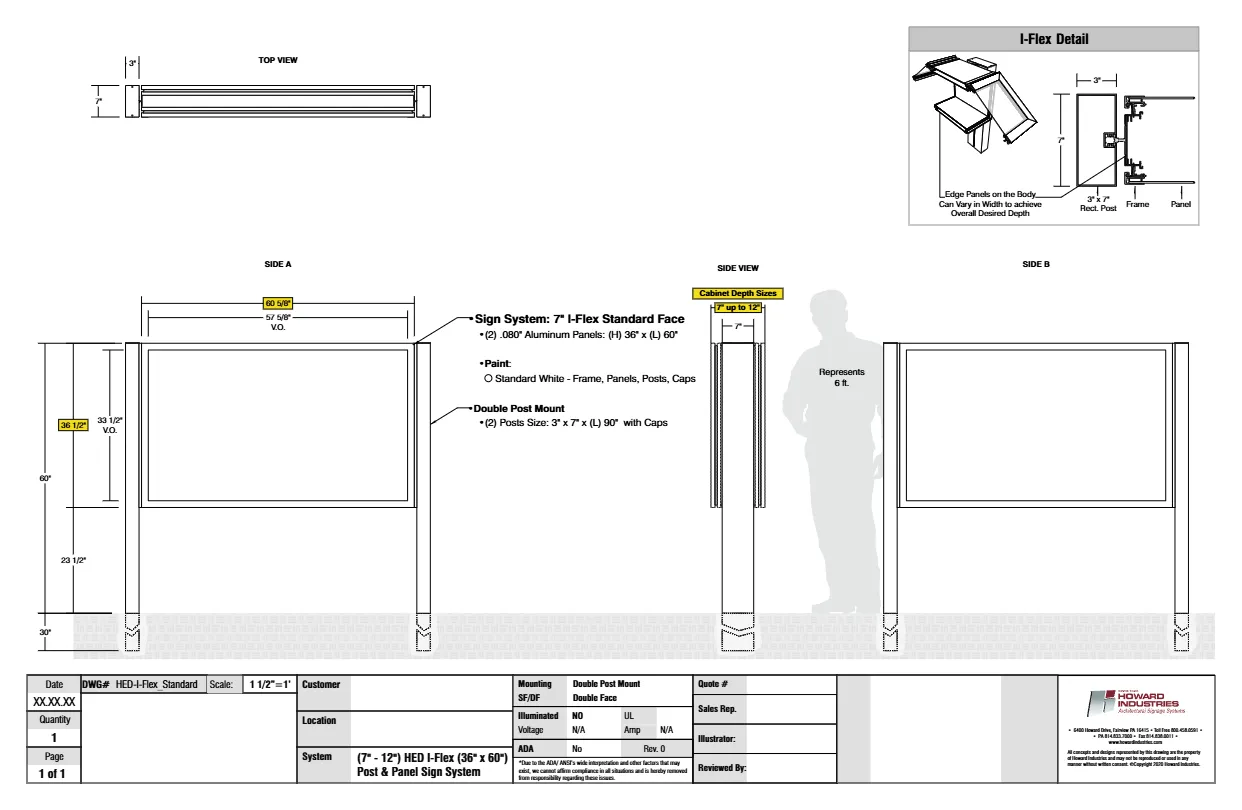

Drawings

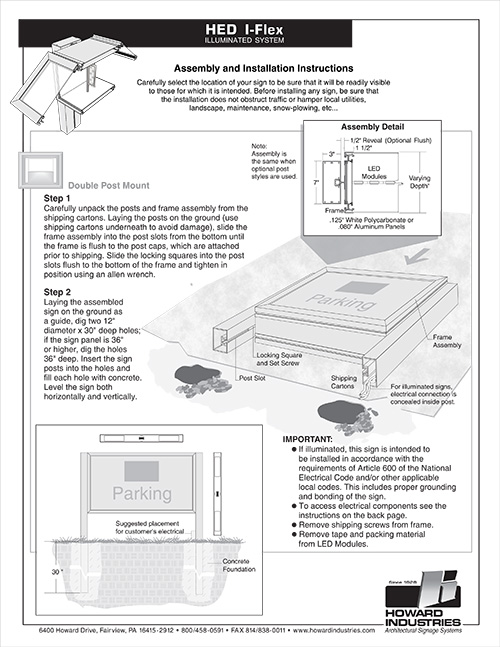

Installation
Accessories

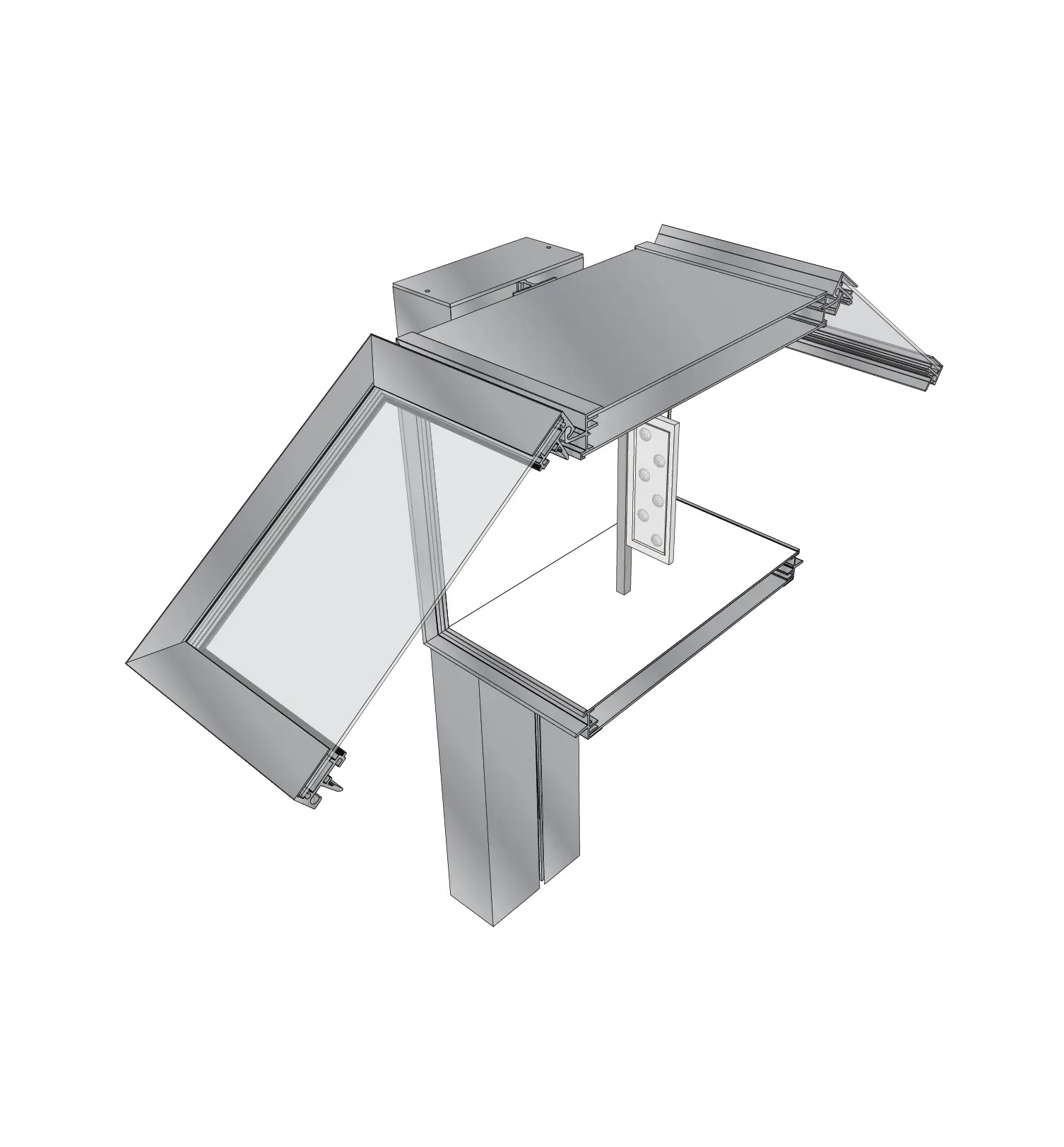

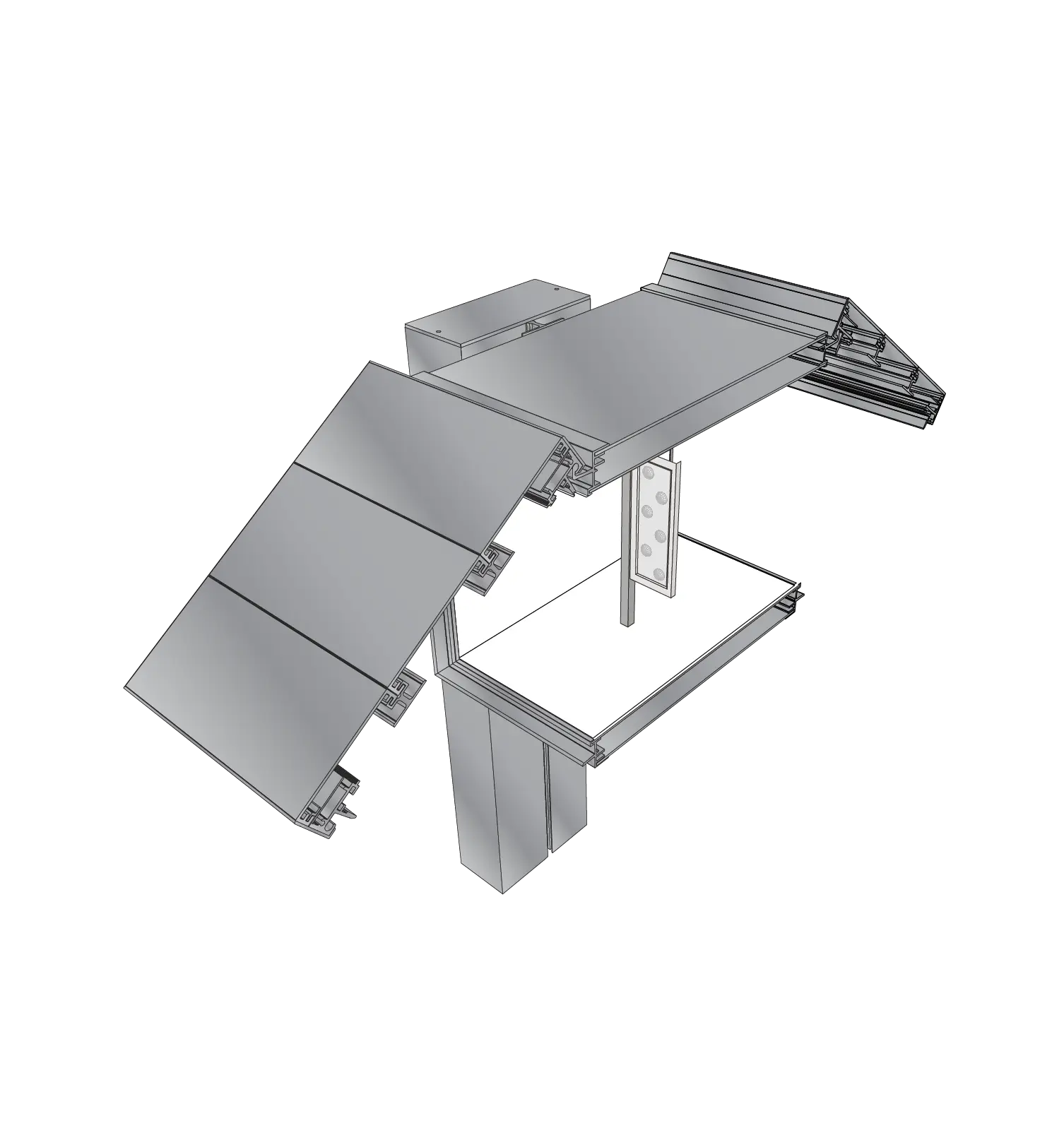

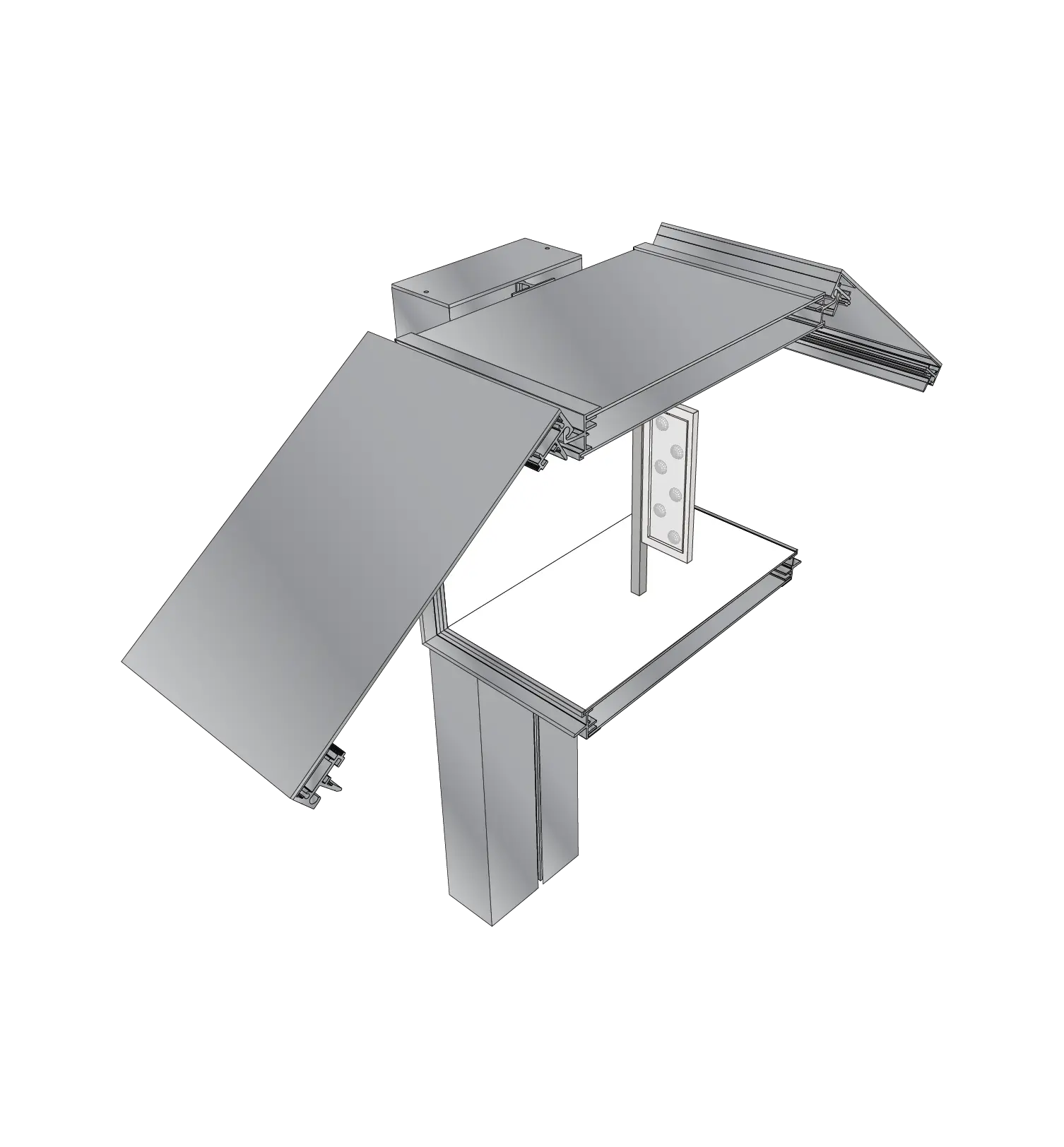

HED I-Flex Technical Detail

  1. Standard 4" x 7" radius or 3" x 7" rectangular post
  2. Post slot offers optional flush or 1/2" reveal
  3. Aluminum post cap
  4. I-FLEX .100" aluminum body panel
  5. I-FLEX hinge body extrusion
  6. .080" – .100" Aluminum or polycarbonate panel
  7. Energy efficient LED units
  8. Locking square with set screw

Popular Sign Options

Max Size:
48" x 144"

Mounting Options:
Double External Post

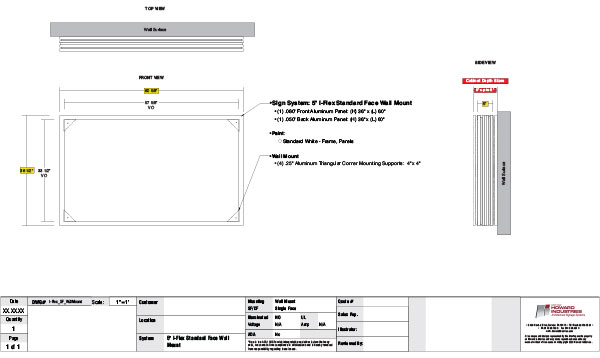

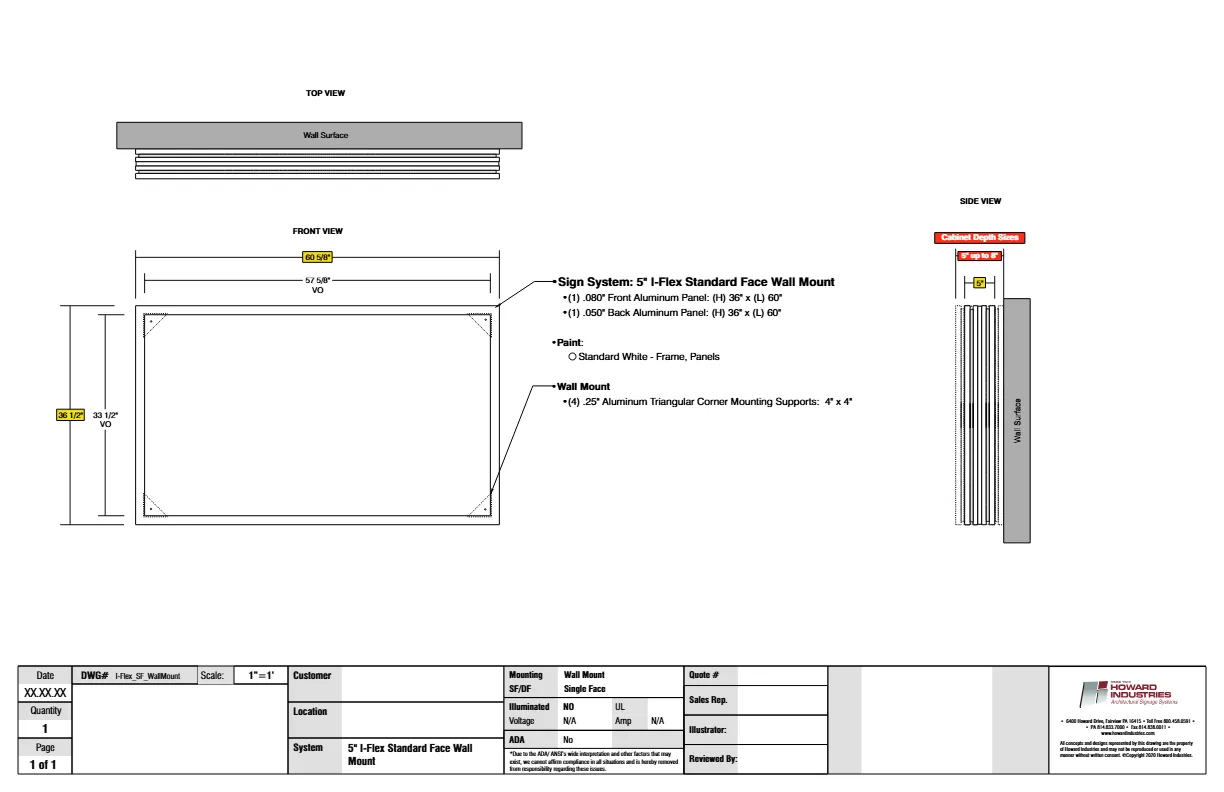

Wall

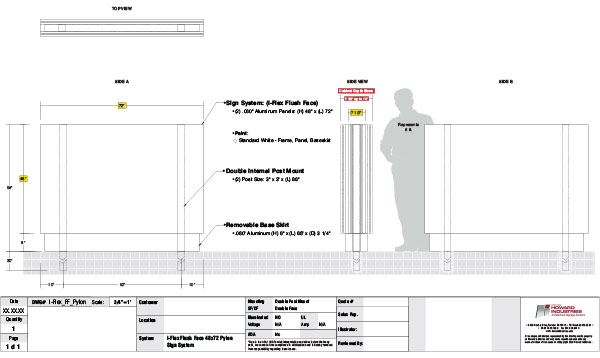

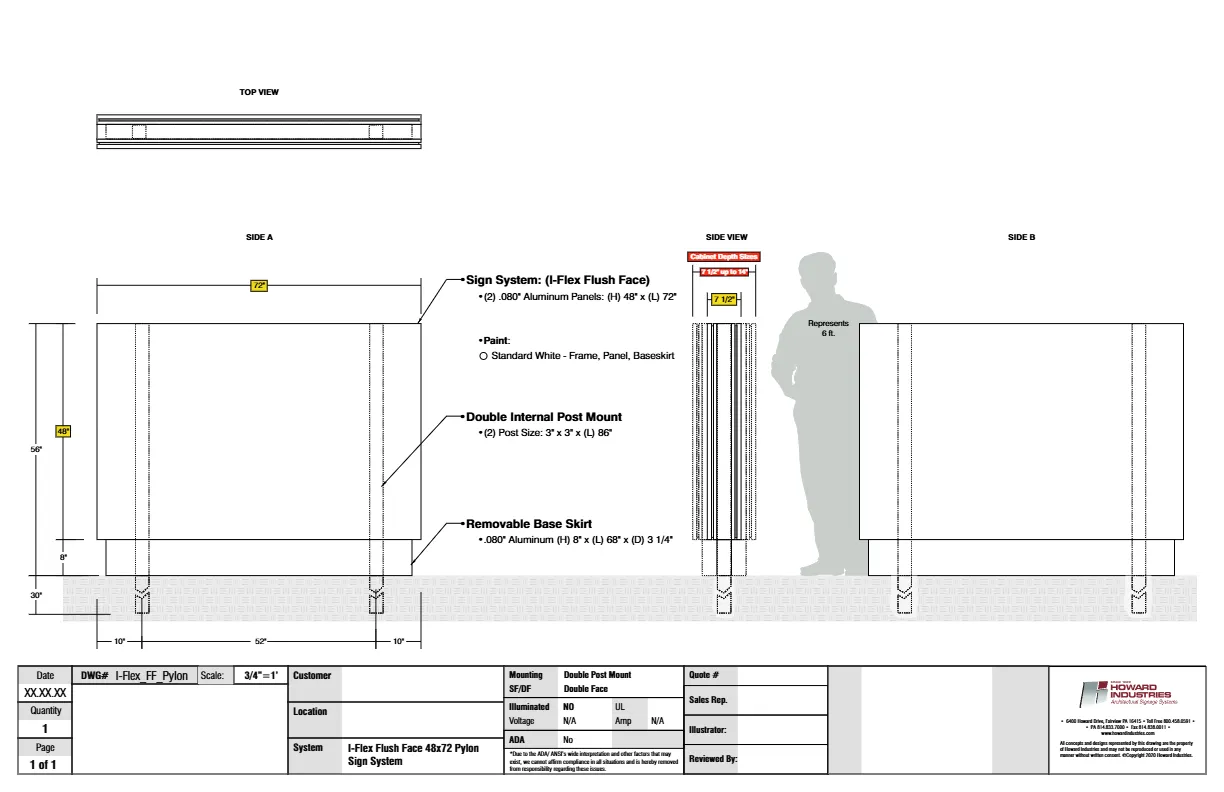

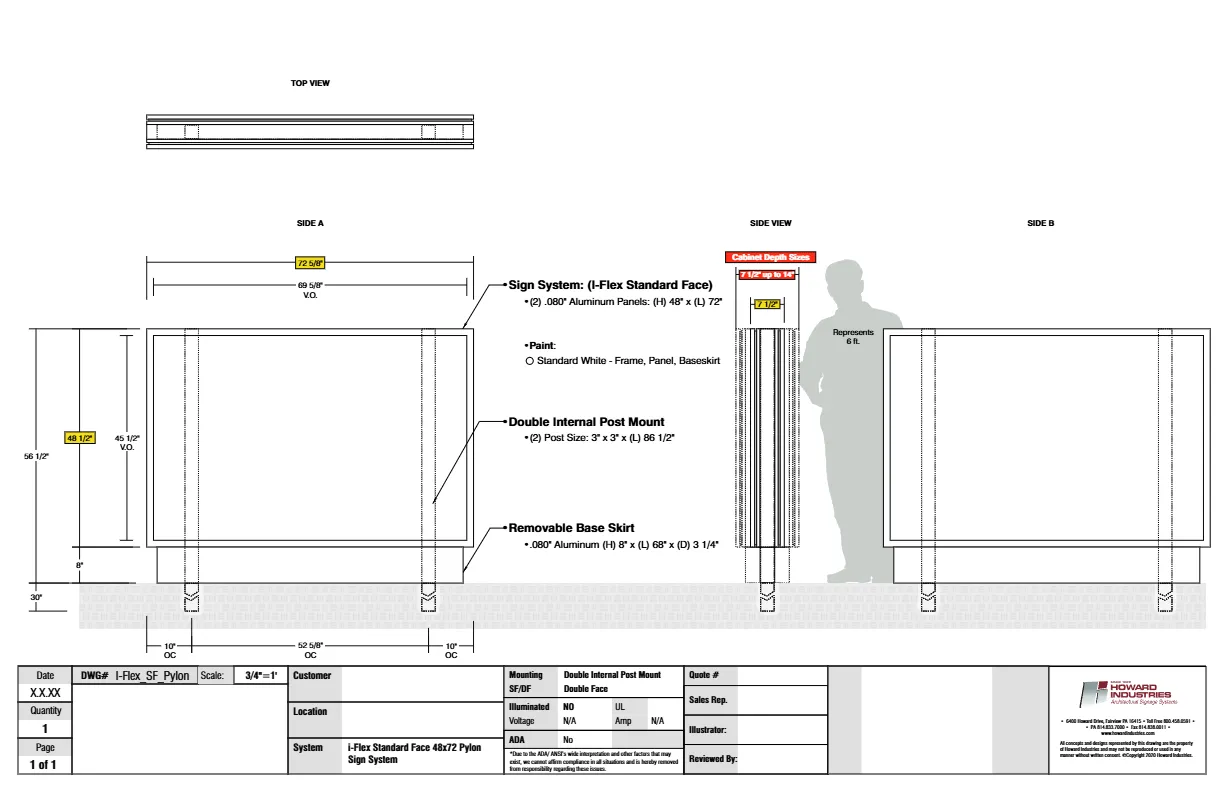

Pylon

Three Styles to Choose From

Illuminated signs with aluminum message panels are available with routed copy in three finishes:

Acrylic Backed Copy

acrylic backed copy

Copy is recessed from sign face

Push Thru Flush Copy

push thru flush

Copy is flush with sign face

Push Thru Extended Copy

push thru extended

Copy extends 1/8" beyond sign face
