HED I-70 (Flush Face)

Illuminated or Non-Illuminated

The HED I-70 Flush Face sign system provides either an illuminated or non-illuminated option for primary or secondary site identification, wayfinding, or directional signage. The system creates a strong visual impact with its seamless design and hidden fasteners. Choose to mount the sign on our post extrusion or to a masonry base with an added decorative base skirt, either option will create a timeless look. All stock material finish is off-the-shelf primer white or take advantage of our color matching capabilities and/or custom color options.

Aluminum Faces with a Heavy Gauge Frame

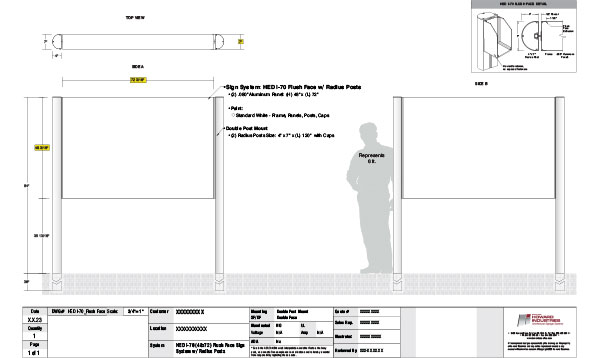

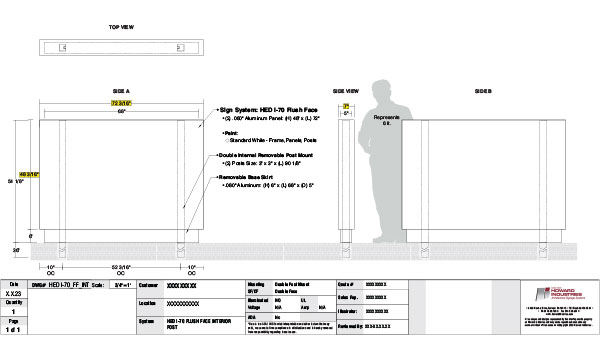

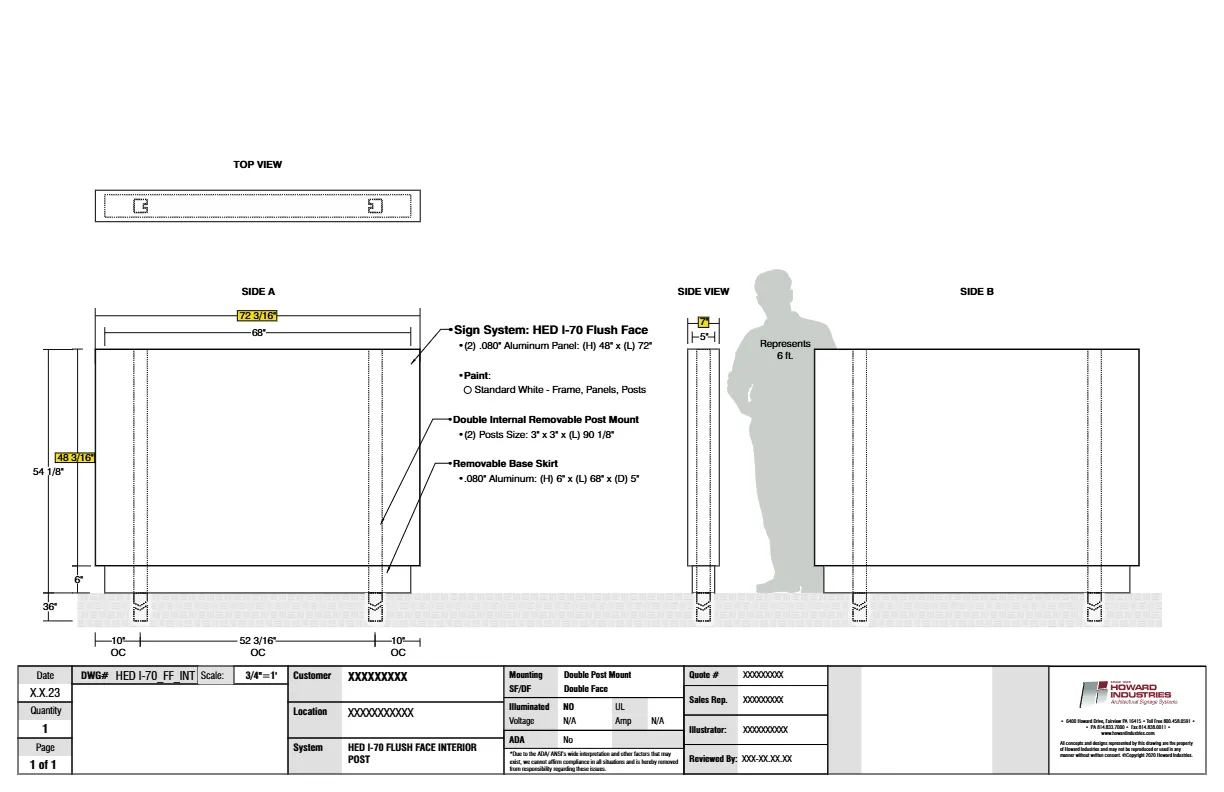

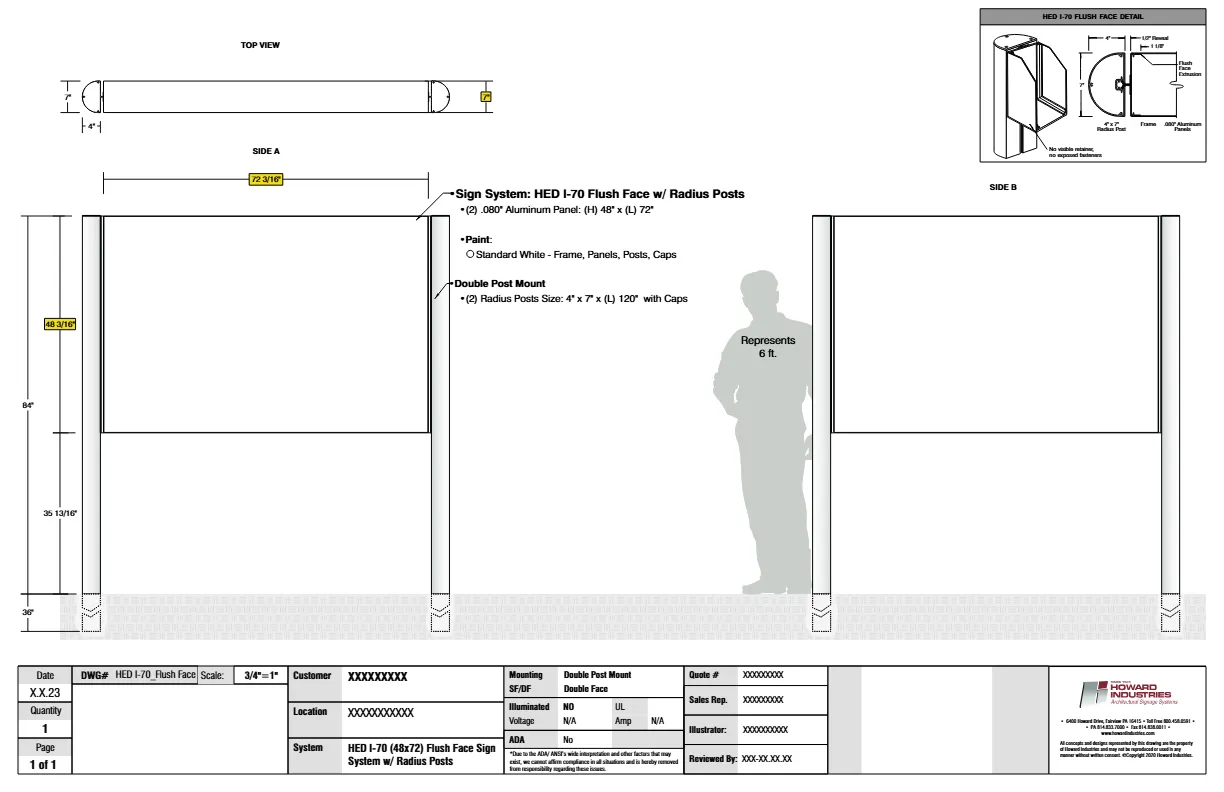

The HED I-70 Flush Face sign system has two chemically bonded aluminum face panels with a 7" wide heavy gauge, extruded aluminum cabinet style frame. When choosing the exterior post mounting option, the two side frames contain a mounting extrusion, allowing it to slide into either a slotted 3" x 7" rectangular posts or 4" x 7" radius posts. The cabinet is then held in place with concealed locking squares within the chosen post style. Both post styles allow for an adjustable reveal of 1/4", 1/2" or to carry the frame flush. Internal posts are an option as well and can have welded baseplates or they can be removeable.


Often Used For

  • Directional Signage
  • Primary Site Identification
  • Secondary Site Identification
  • Wayfinding Signage

Lifting pins for larger signs available upon request

hed i70 custom engineering
Tech Specs

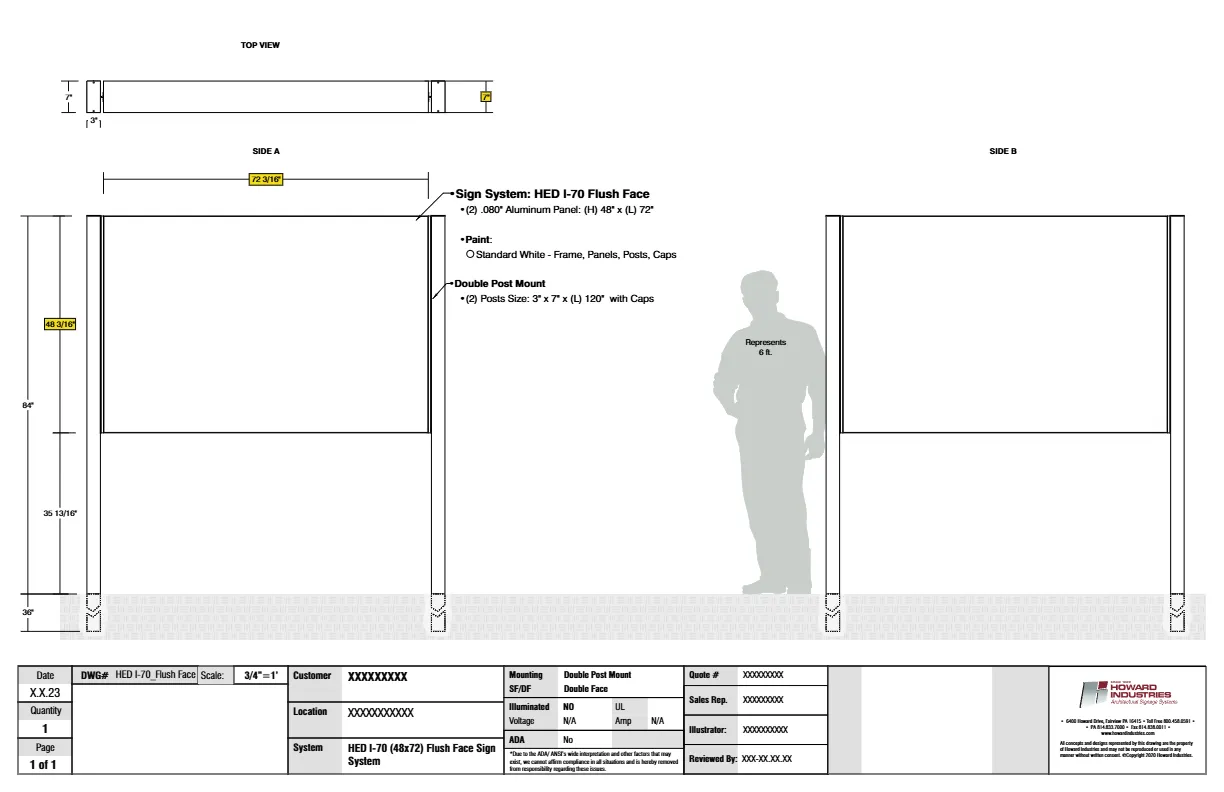

HED I-70 Technical Detail

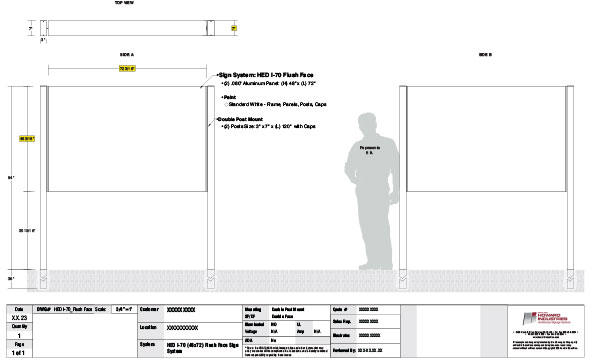

  1. Standard 3" x 7" rectangular post
  2. Post slot offers optional flush or 1/2" reveal
  3. Injection molded post cap
  4. Corner key
  5. HED I-70 top/bottom frame
  6. HED I-70 mounting frame
  7. .080" Aluminum message panel
  8. Energy efficient LED units
  9. Locking square with set screw

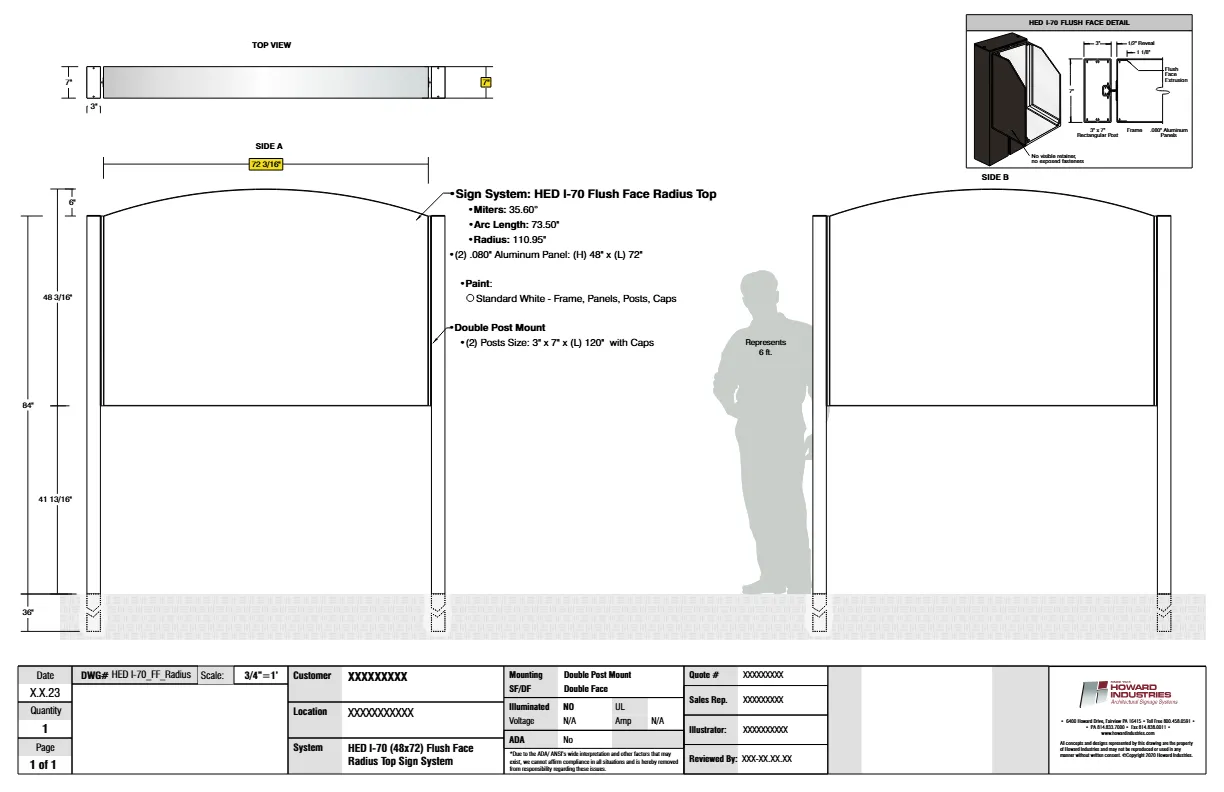

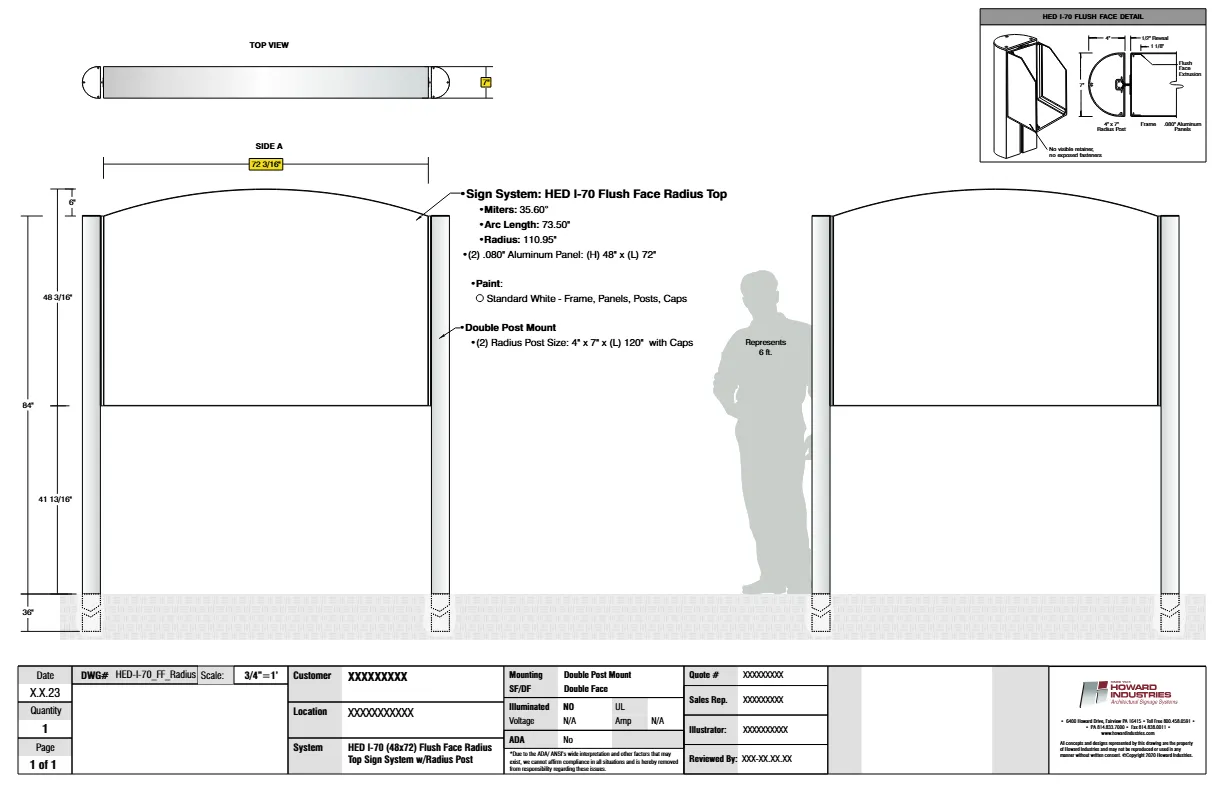

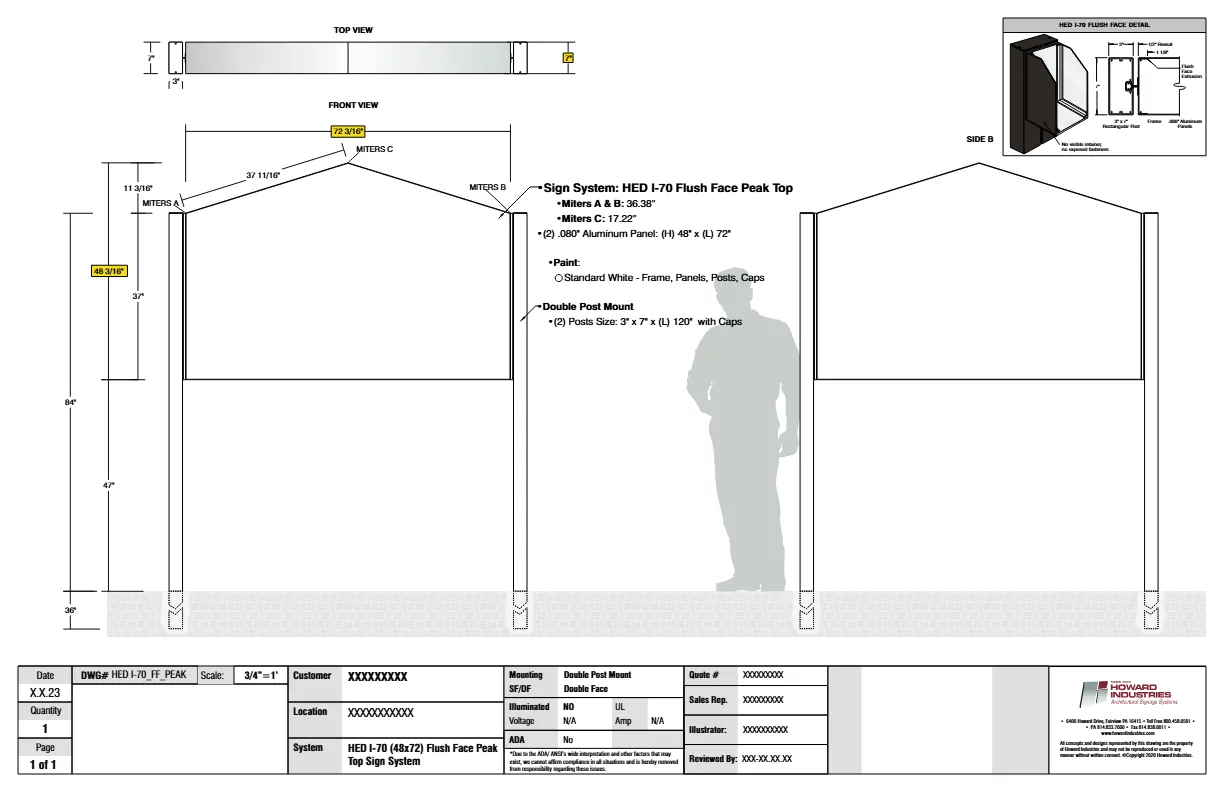

Popular Sign Tops

 Max Size:
48" x 144"

Mounting Options:
Double Post
