Flush Face Post and Panel Sign System

The HED-225 post and double panel system features a 2-1/4" cabinet style frame that attaches two panels with no visible retainers and no exposed fasteners for a frameless appearance. A 2" polystyrene core is chemically bonded to the panels for increased strength and durability. The frame assembly slides into slotted 2-1/4" square posts which carry the frame flush or with a 1/2" reveal. Concealed locking squares hold the frame secure. This two panel all aluminum sign system is designed to offer strong visual impact in a non-illuminated format.

Often Used For

  • Directional Signage
  • Parking Signage
  • Regulatory Signage
  • Secondary Site Identification

Customizable to Fit Your Signage Needs

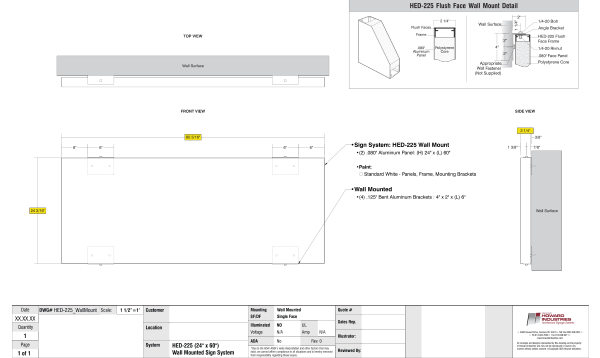

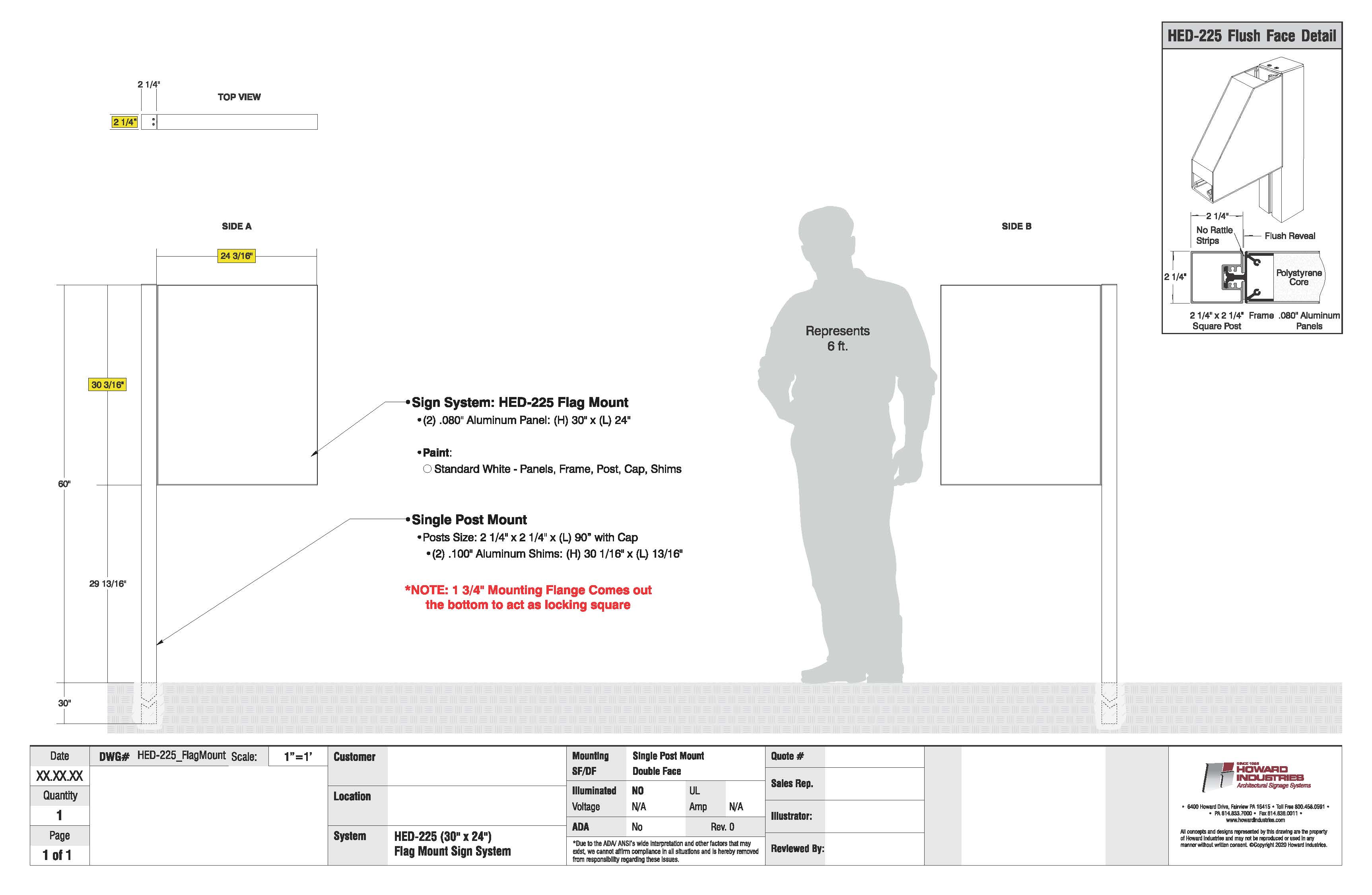

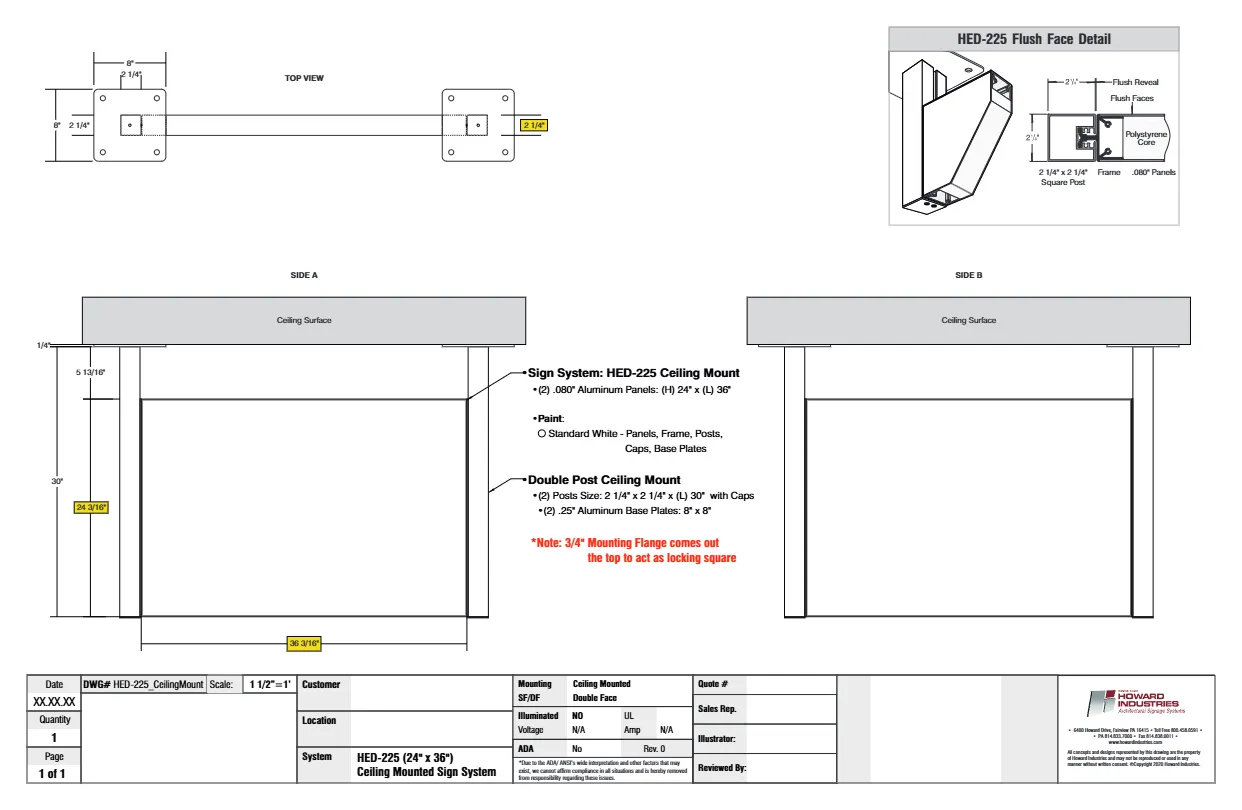

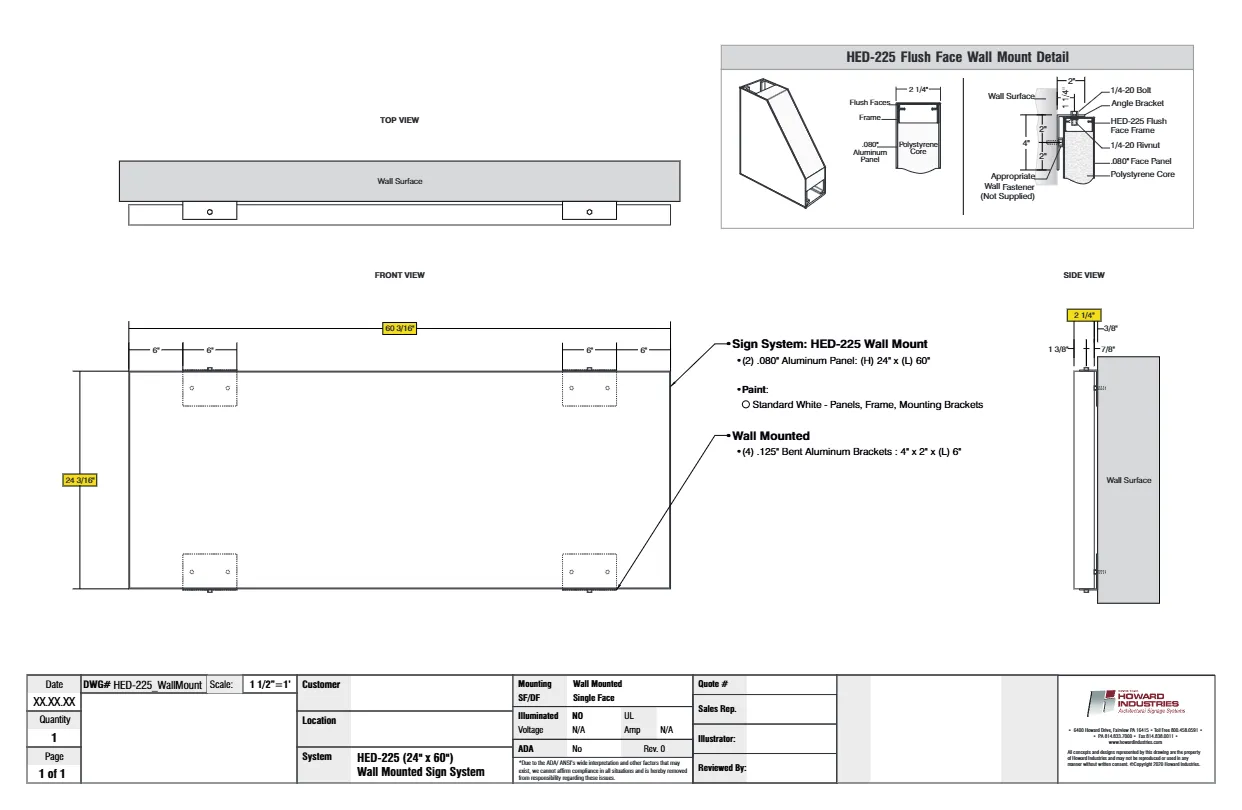

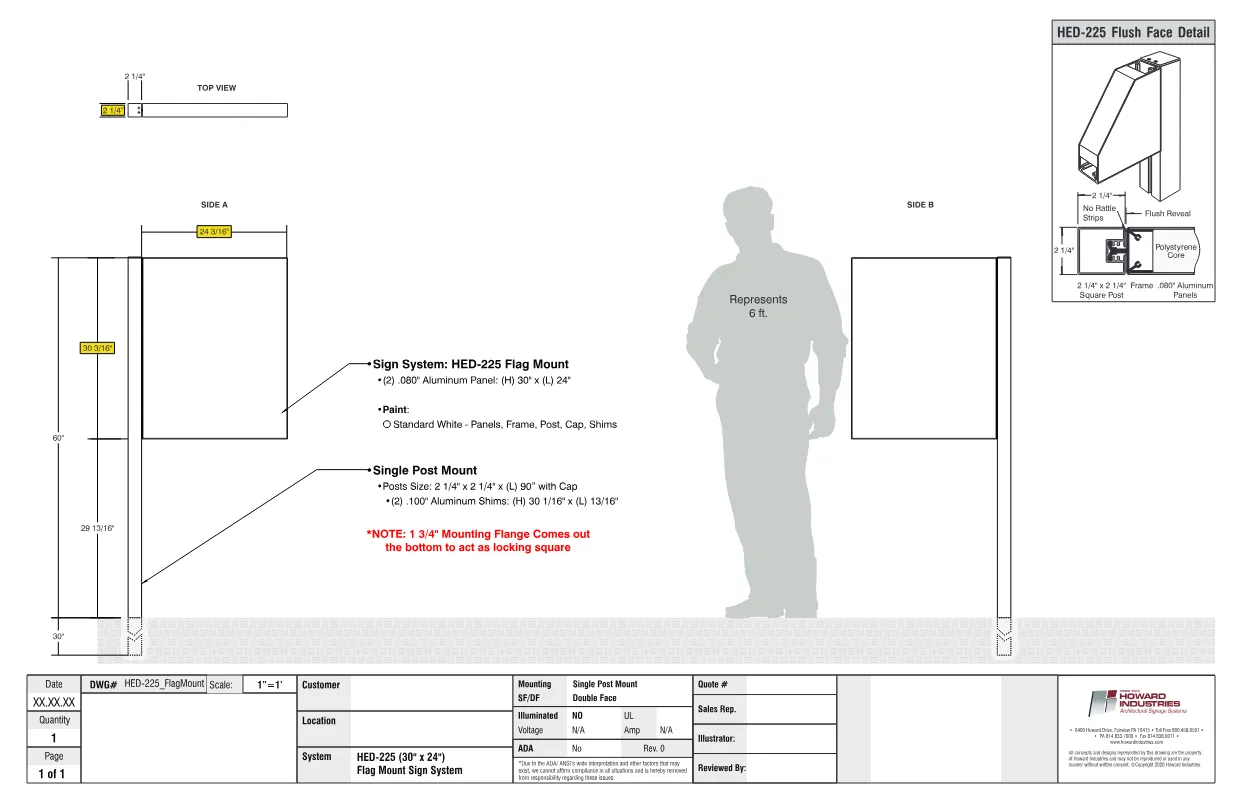

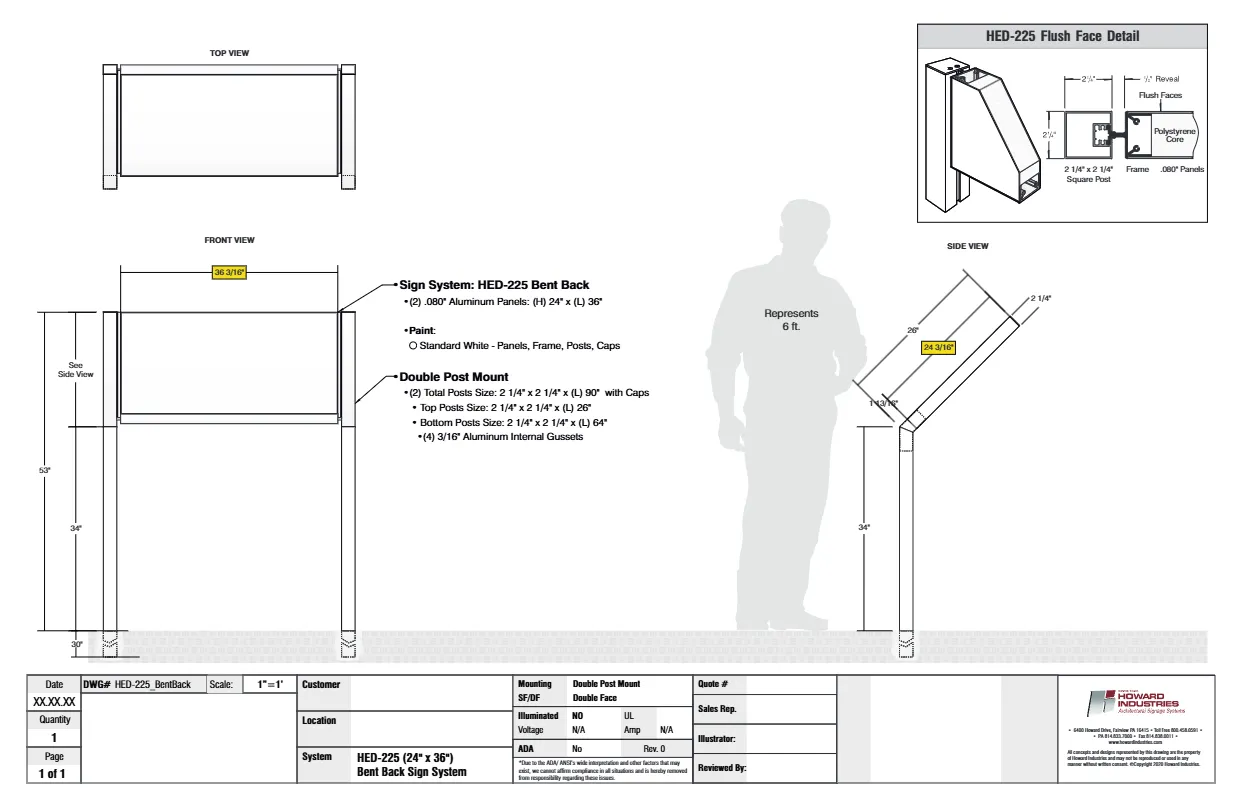

These signs are available in double post, flag, center post, bent-back, ceiling, and wall mount configurations. All stock material finish is off-the-shelf primer white or take advantage of our color matching capabilities and/or custom color options.

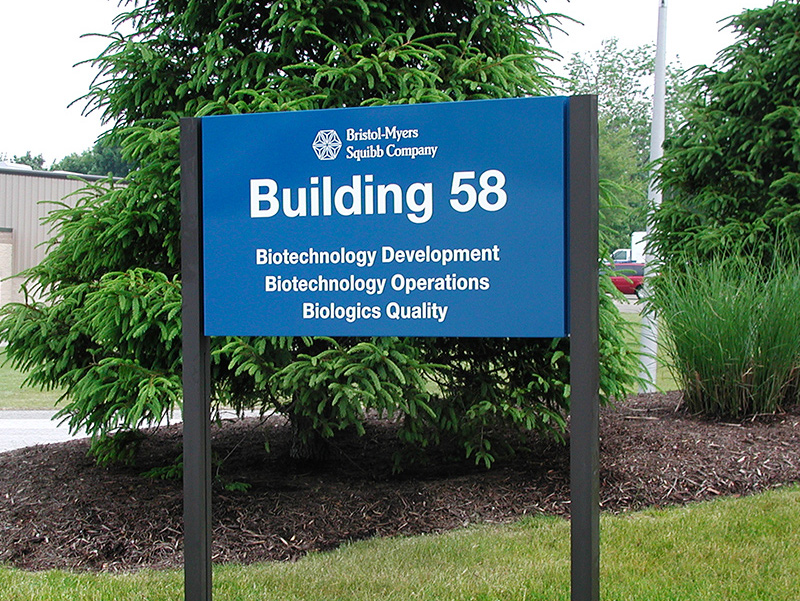

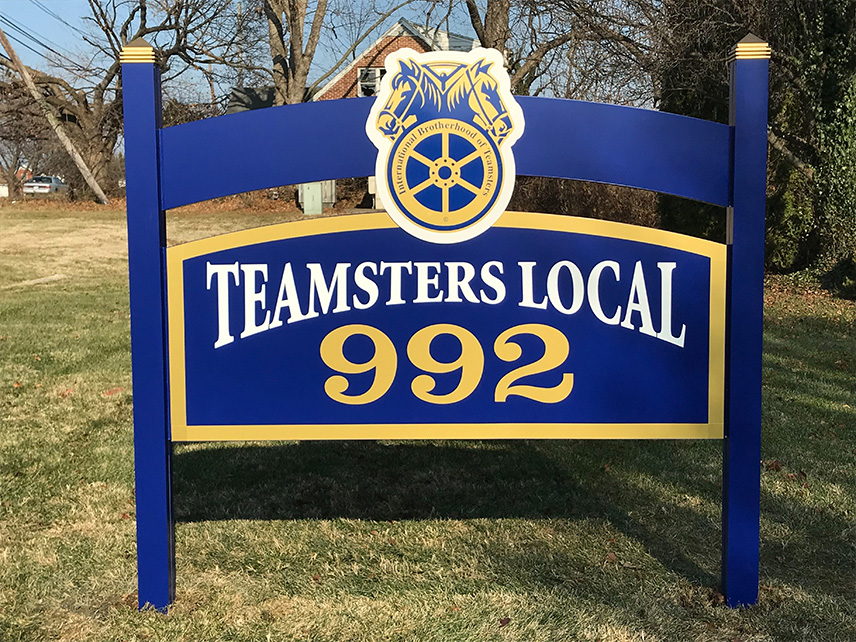

hed 225 teamsters
Tech Specs

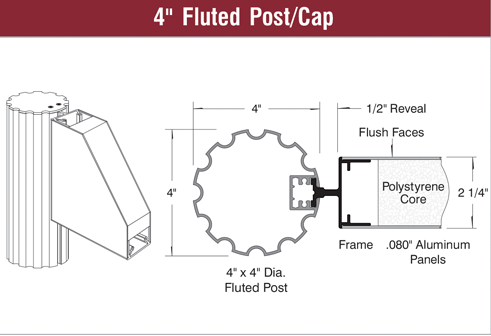

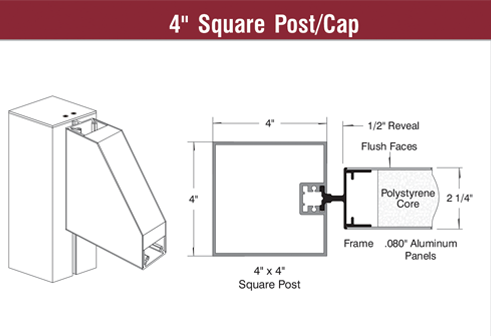

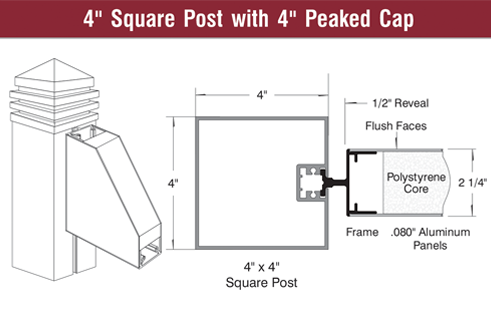

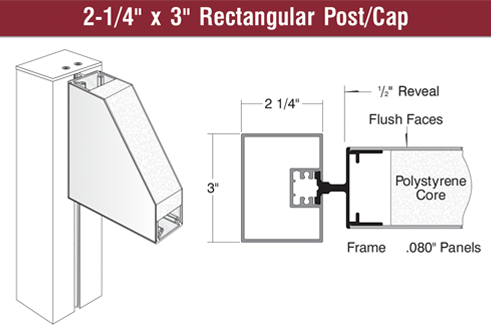

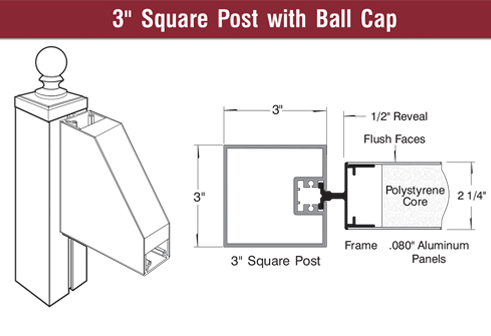

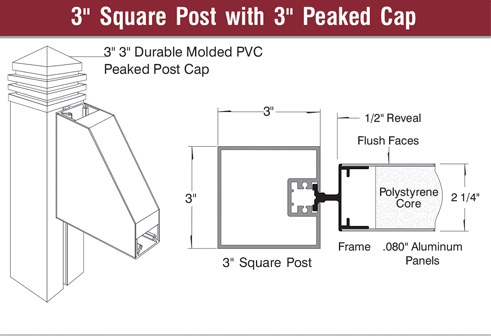

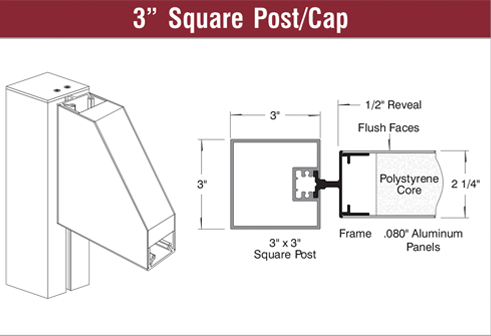

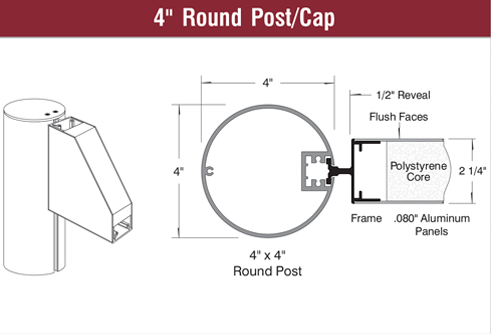

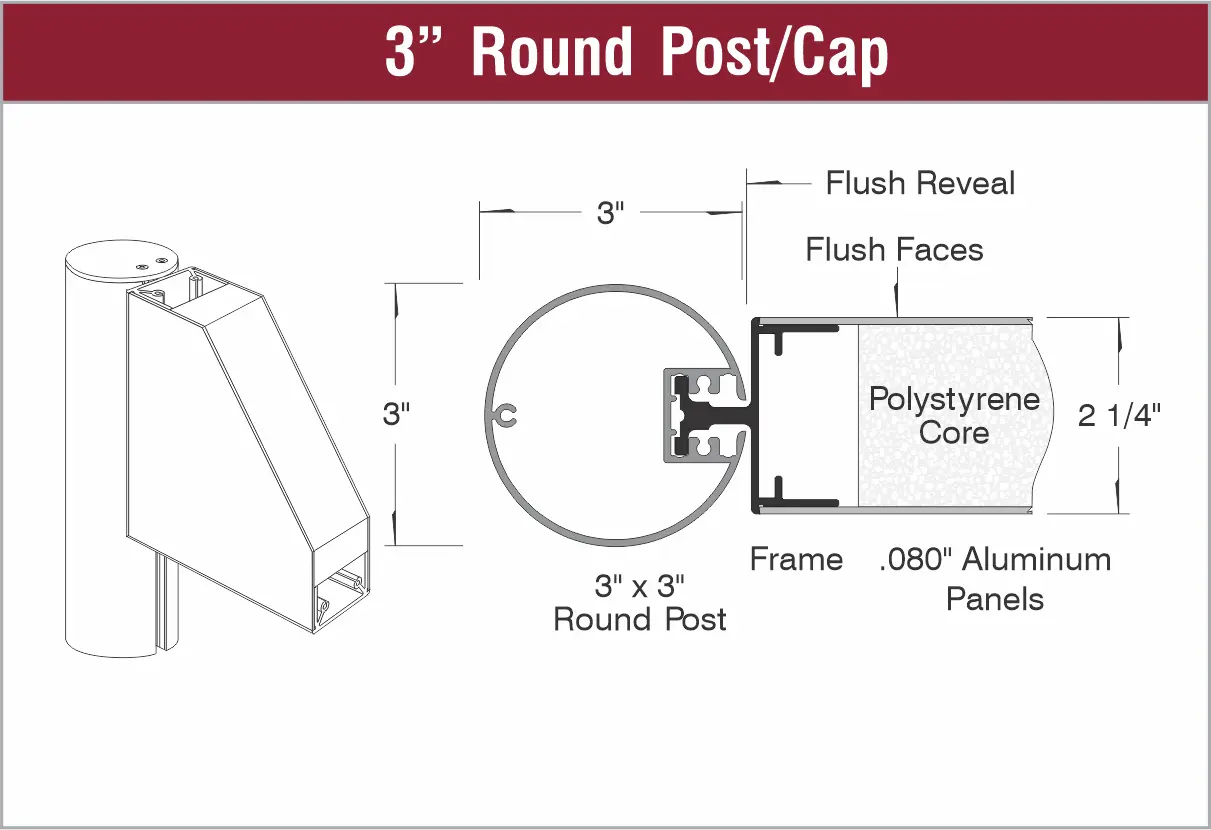

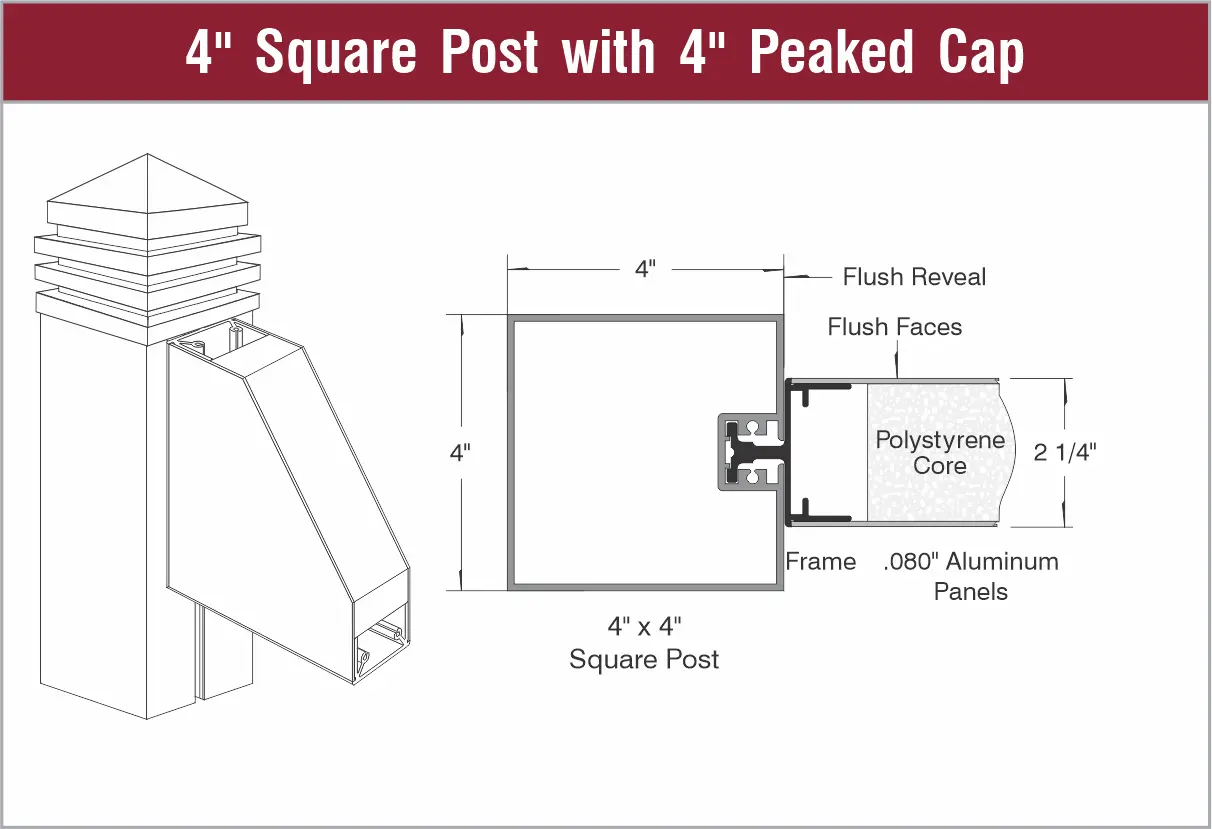

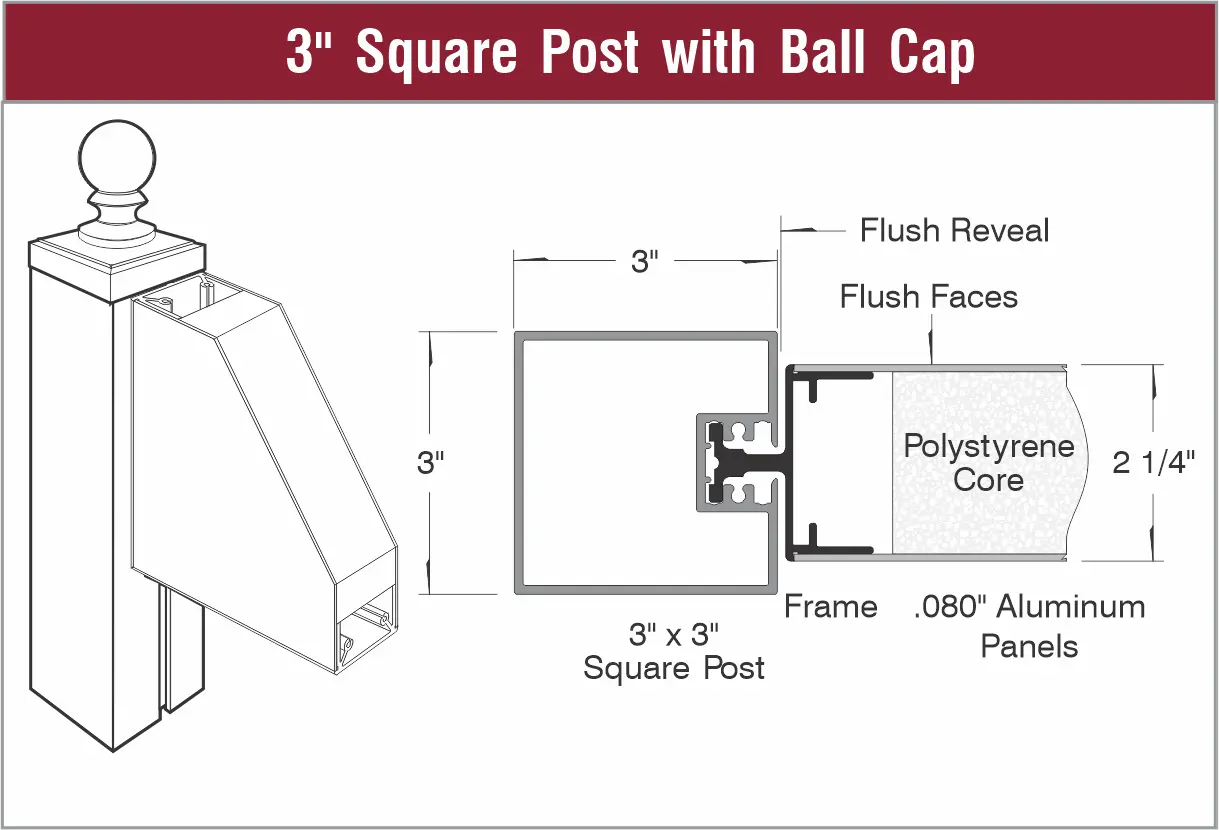

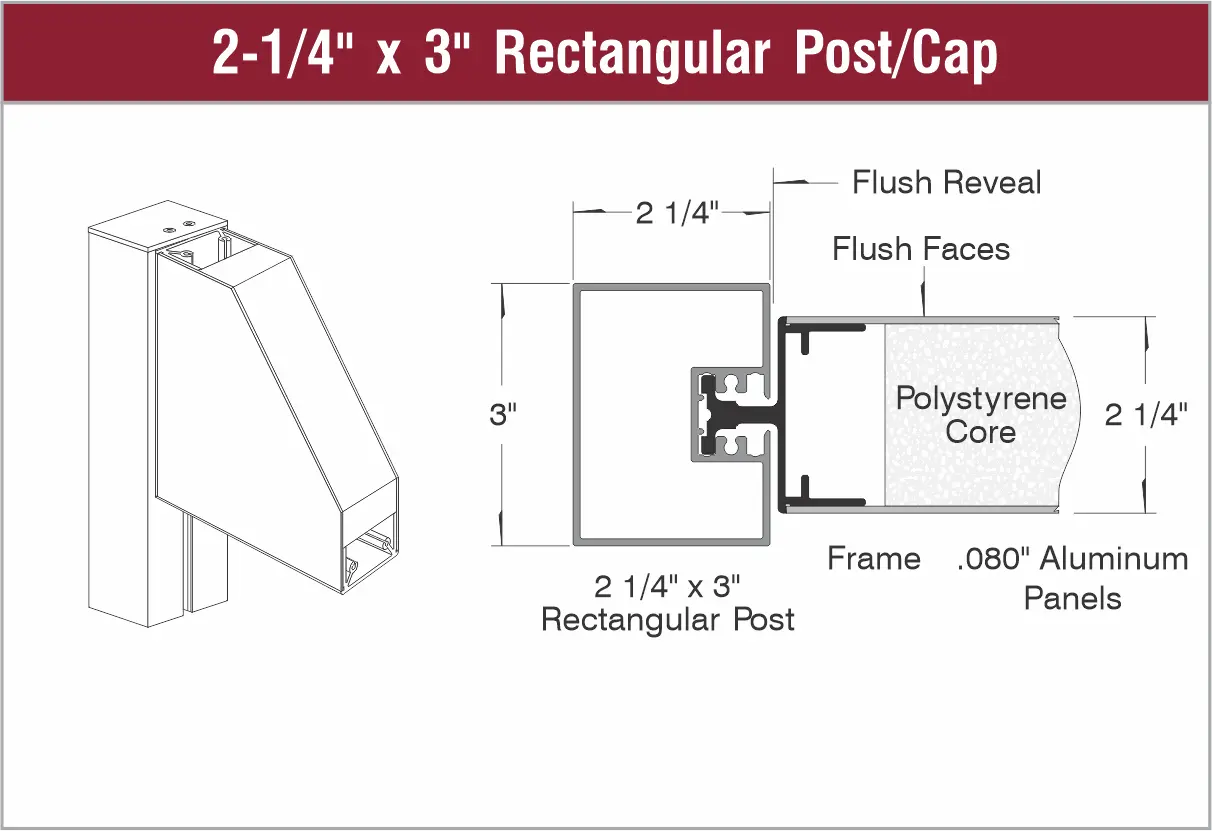

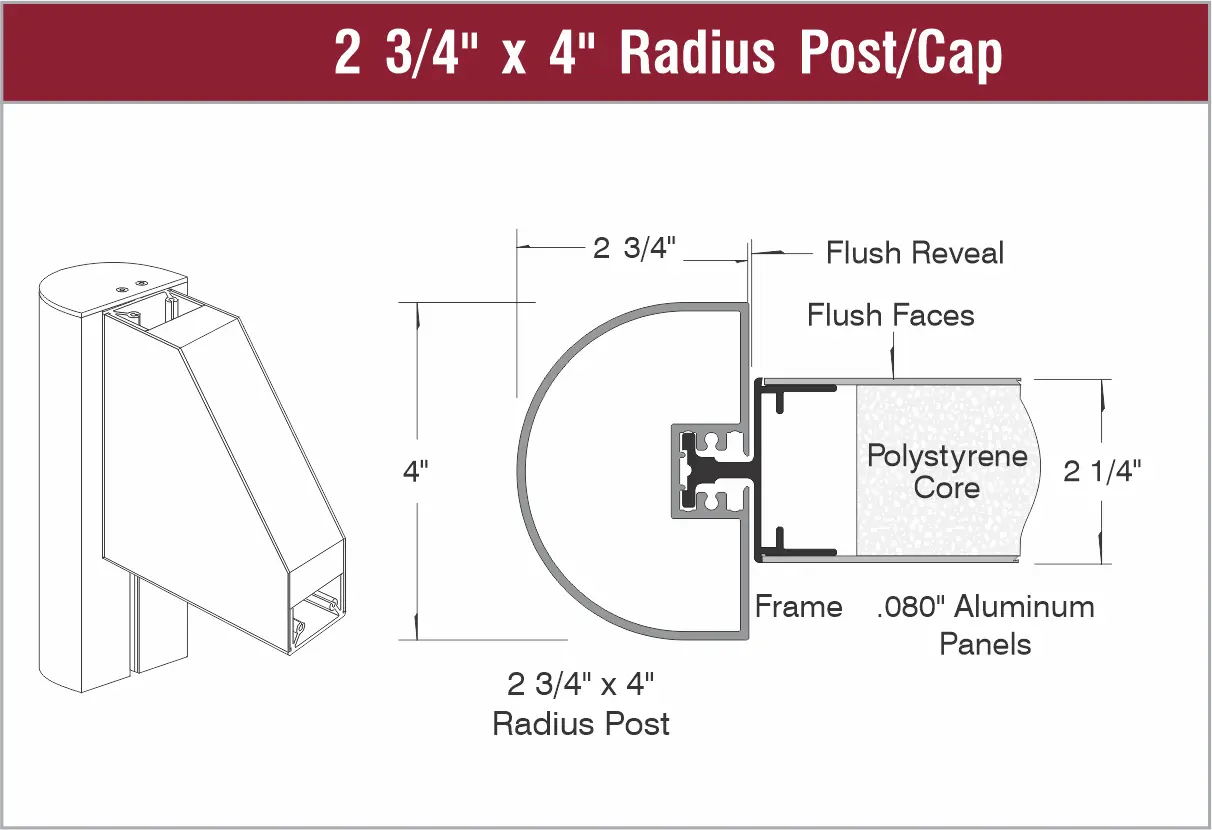

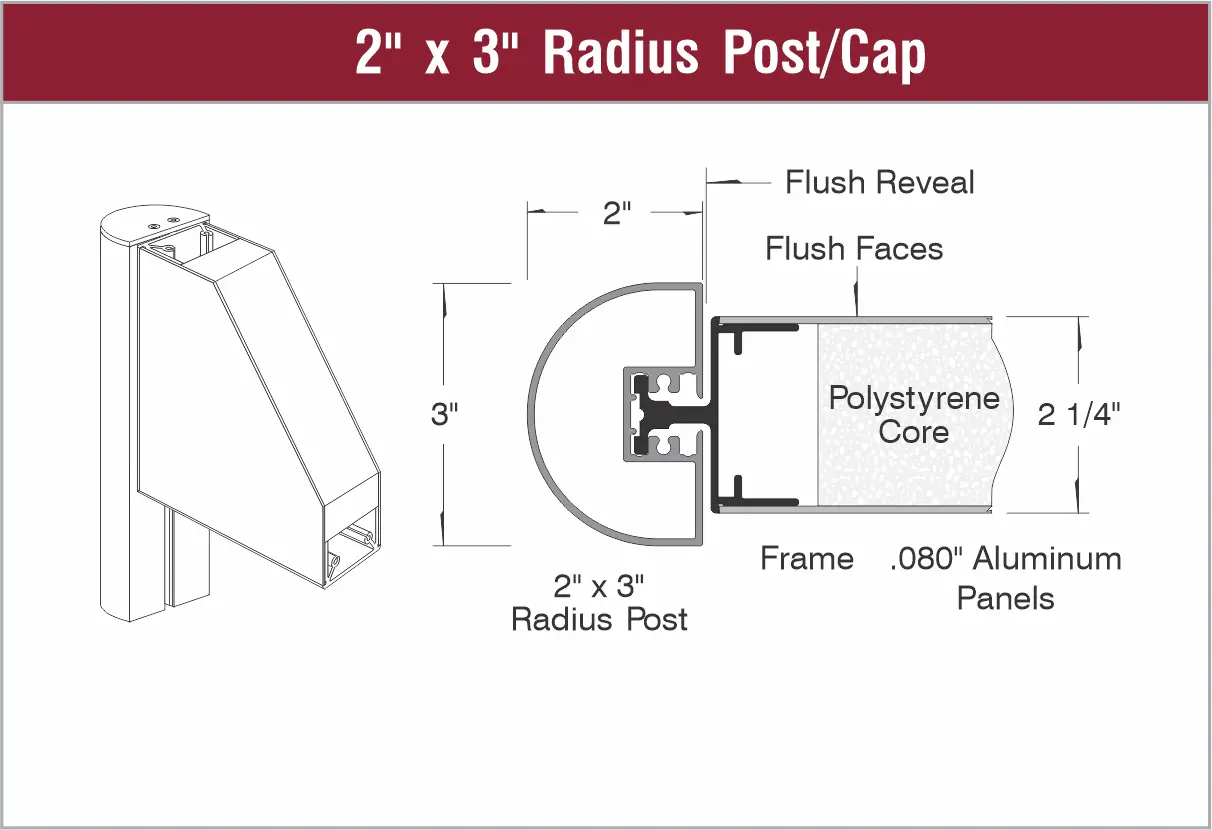

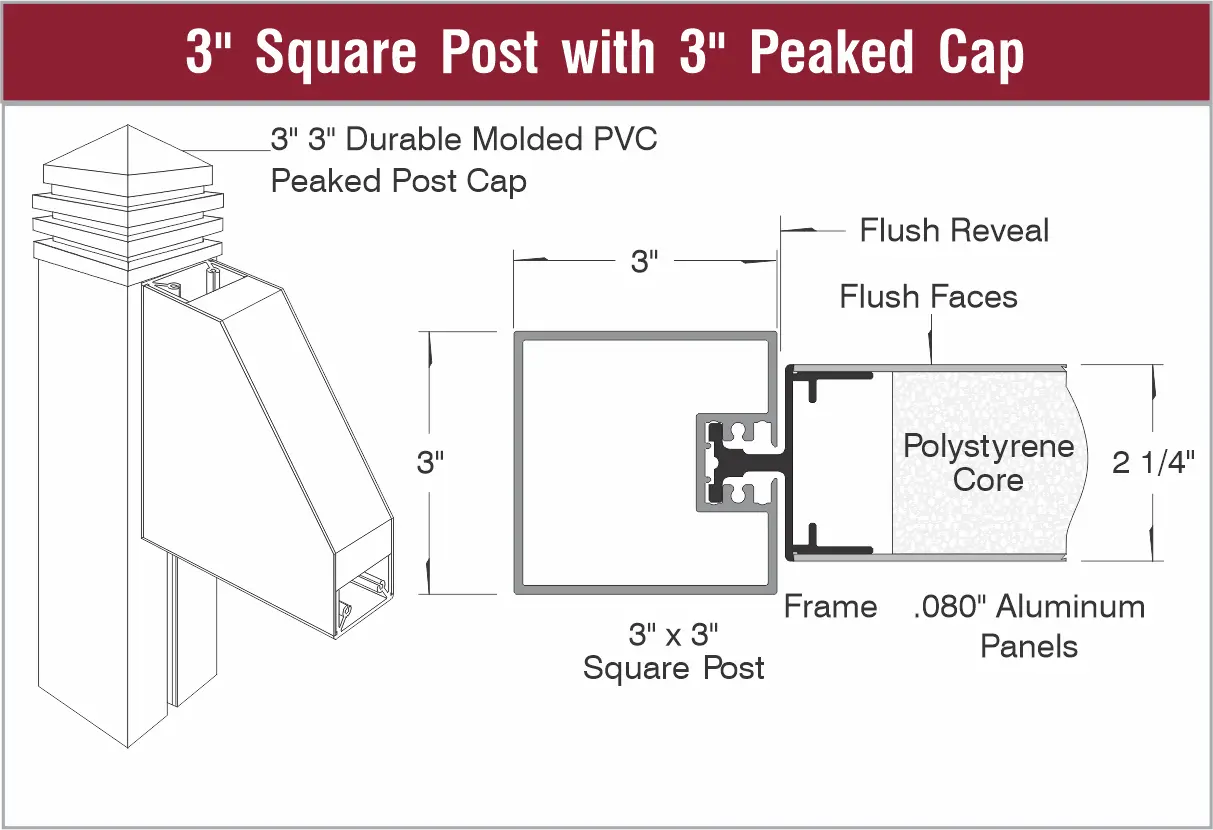

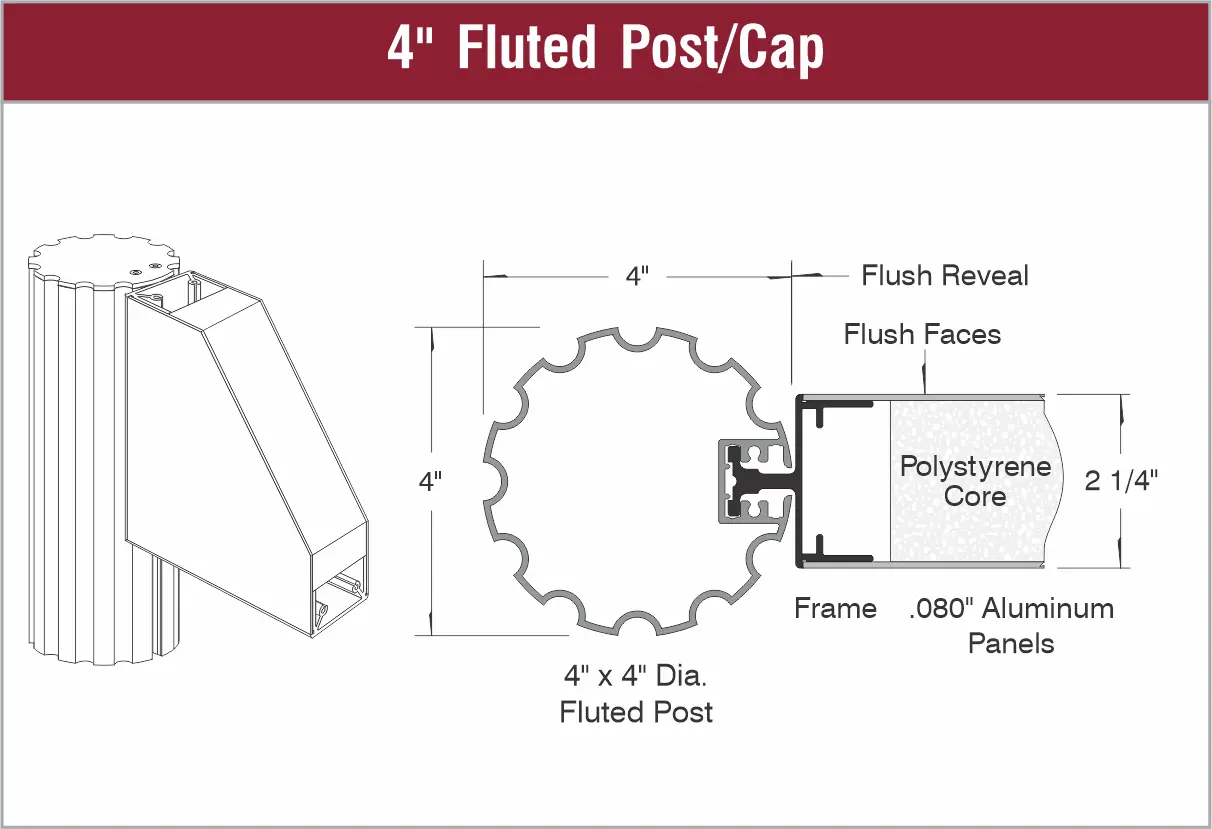

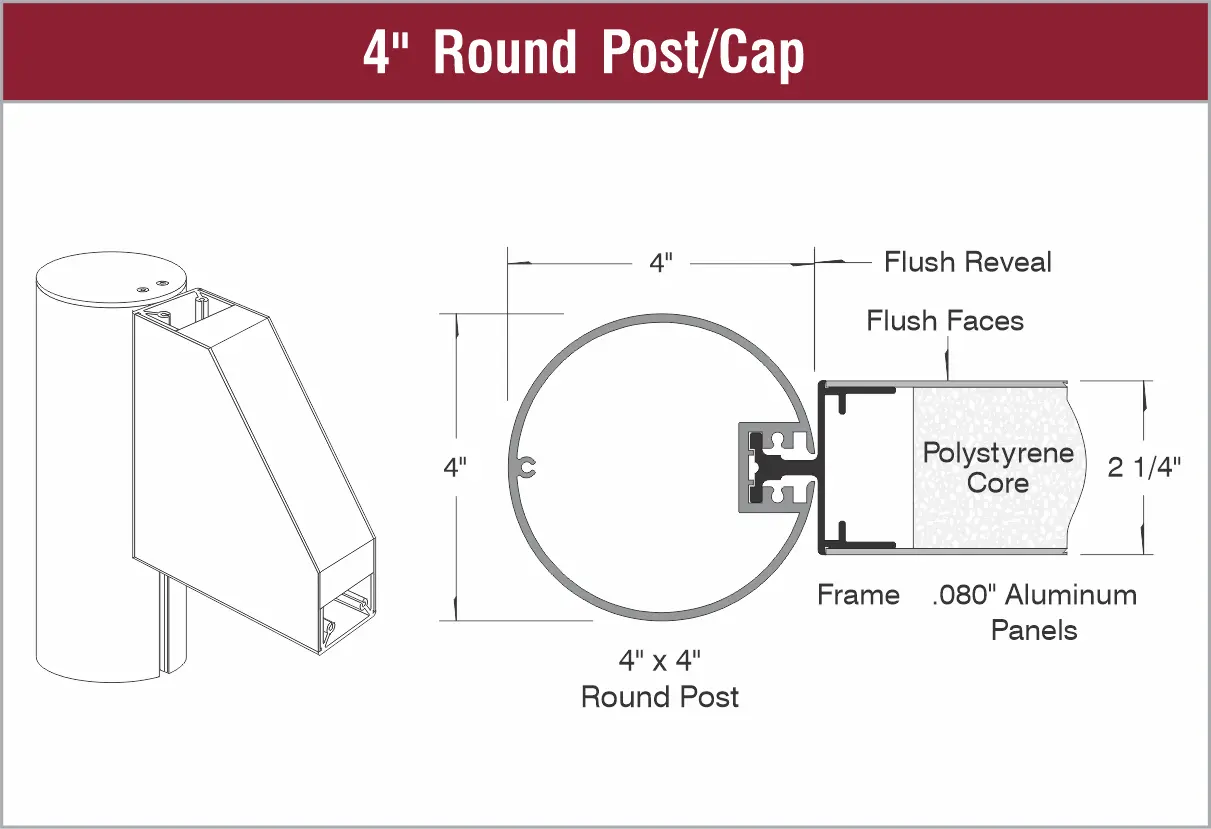

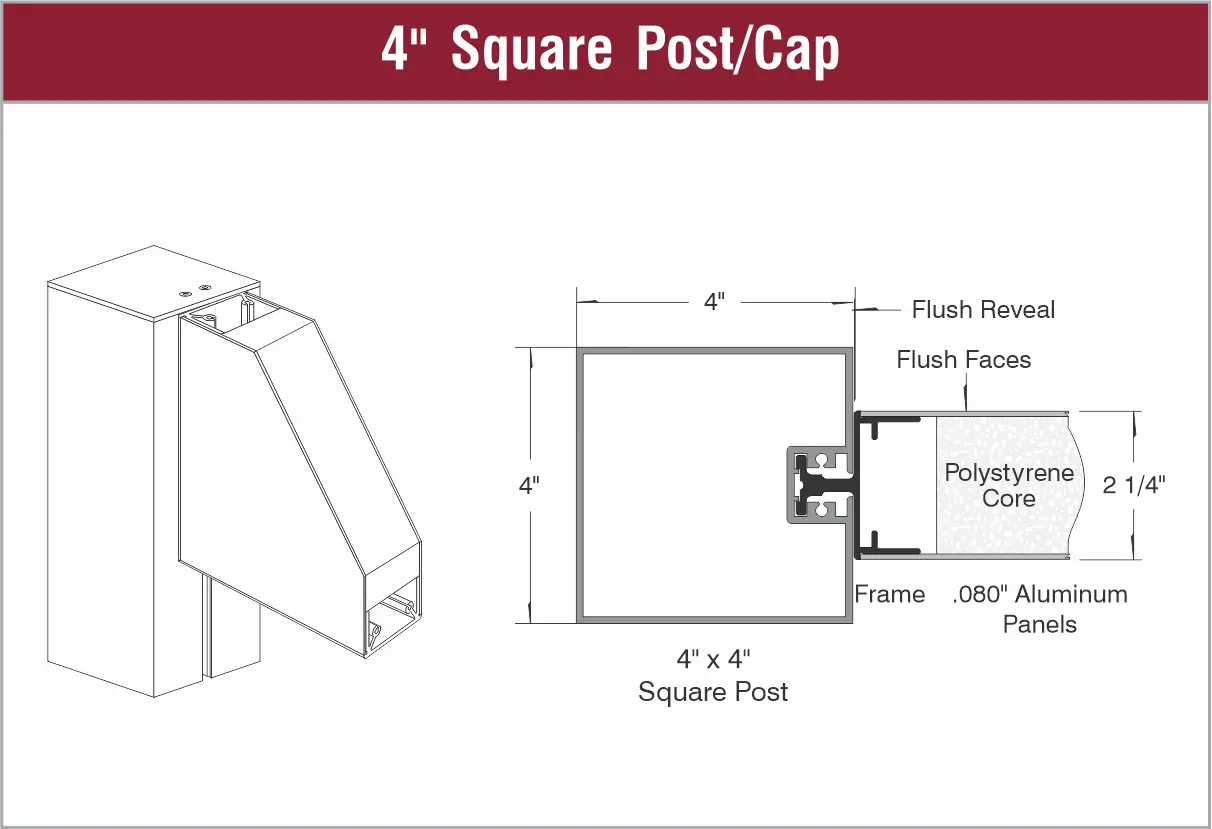

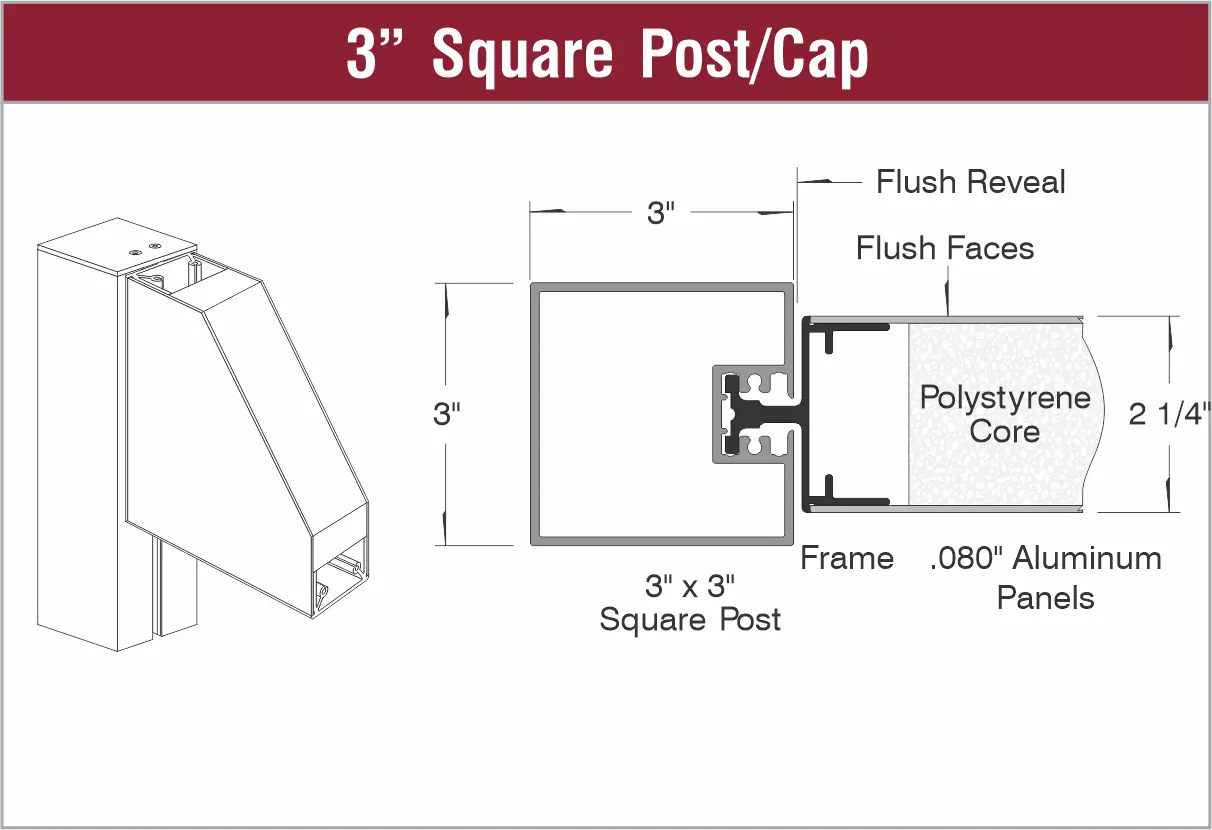

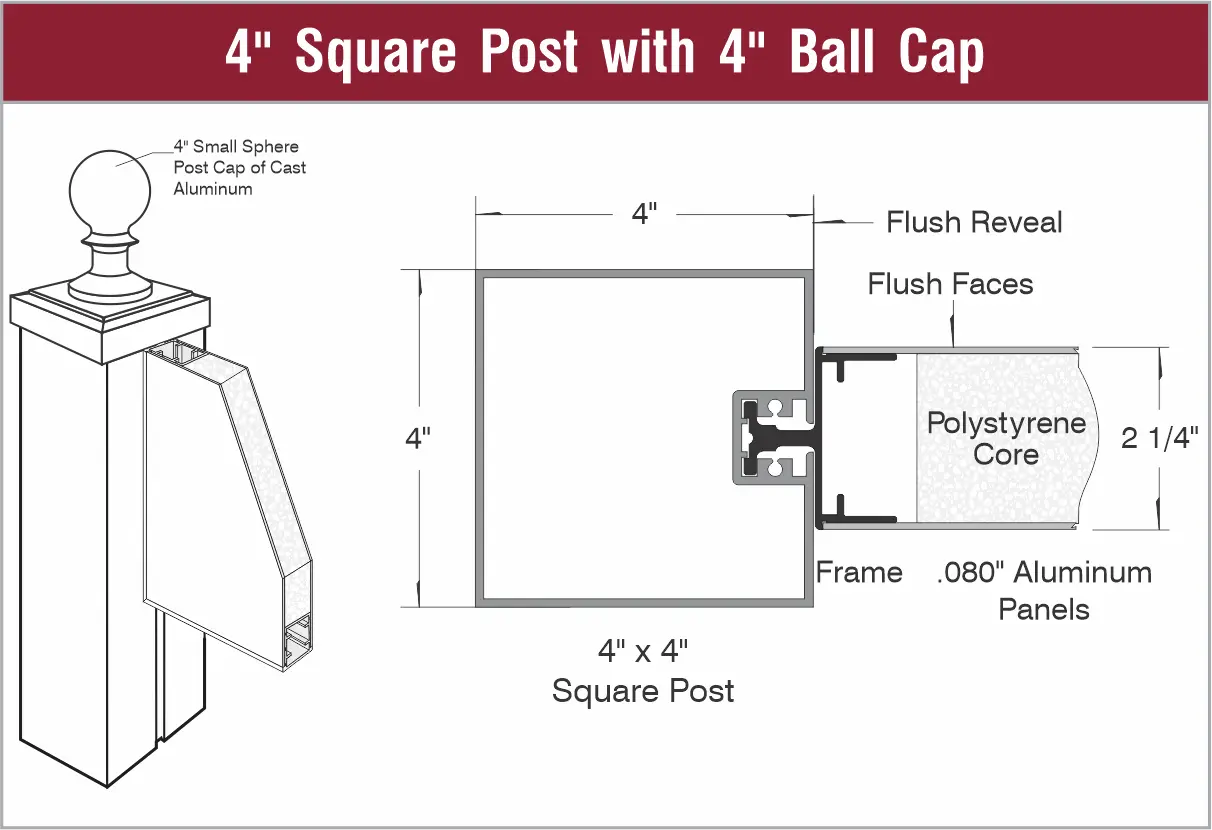

Post and Post Caps

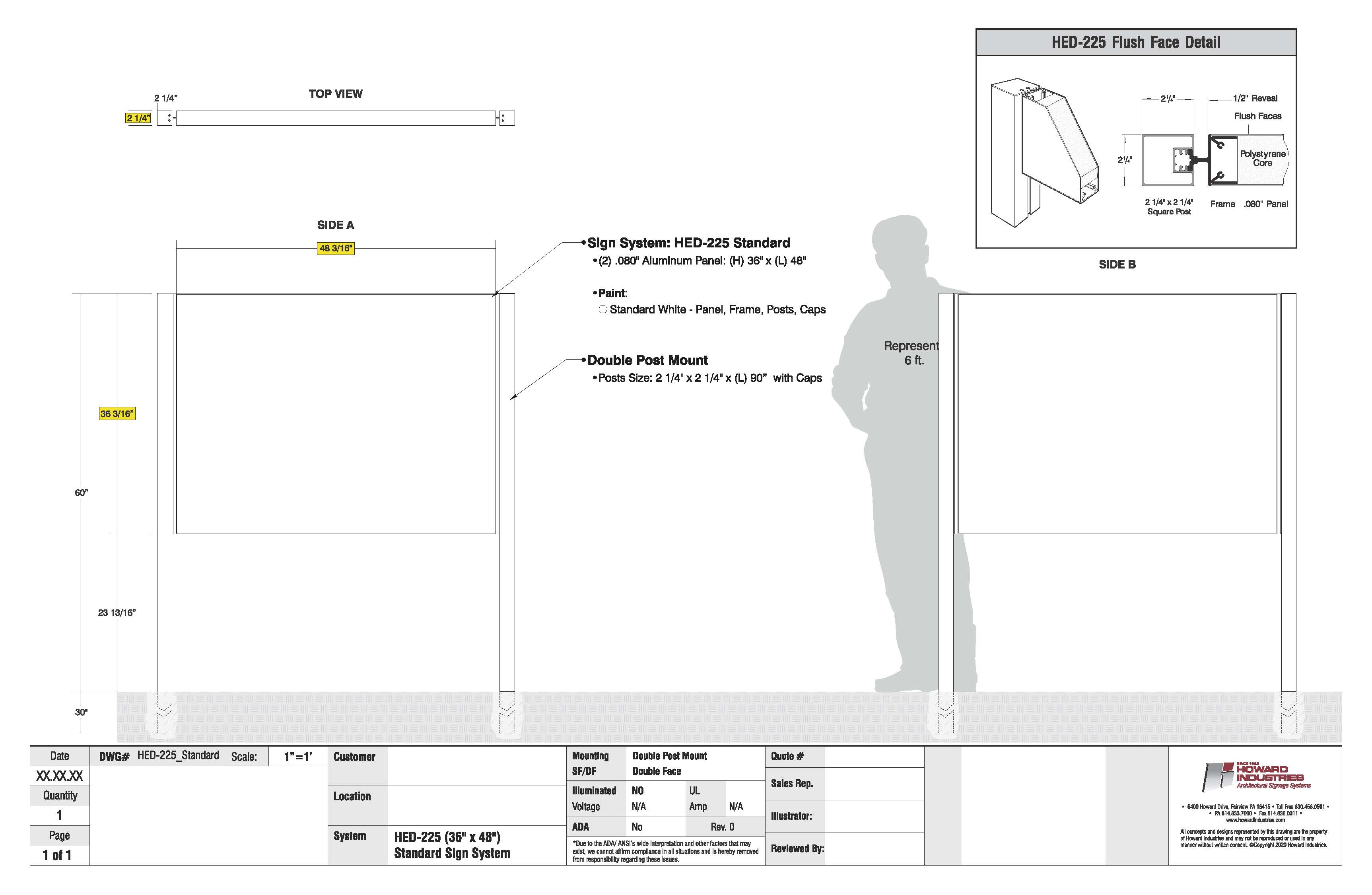

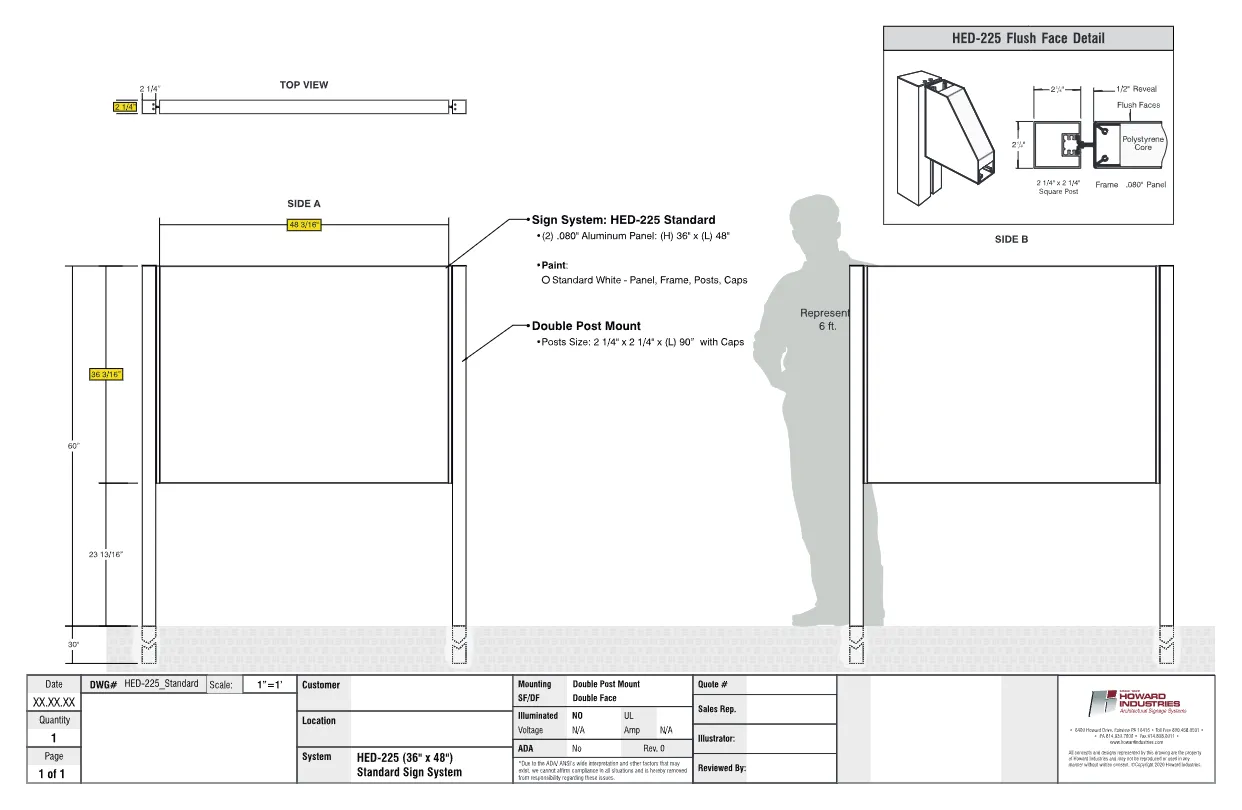

Hed-225 Techincal Detail

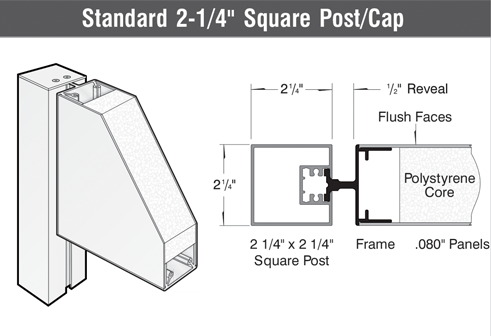

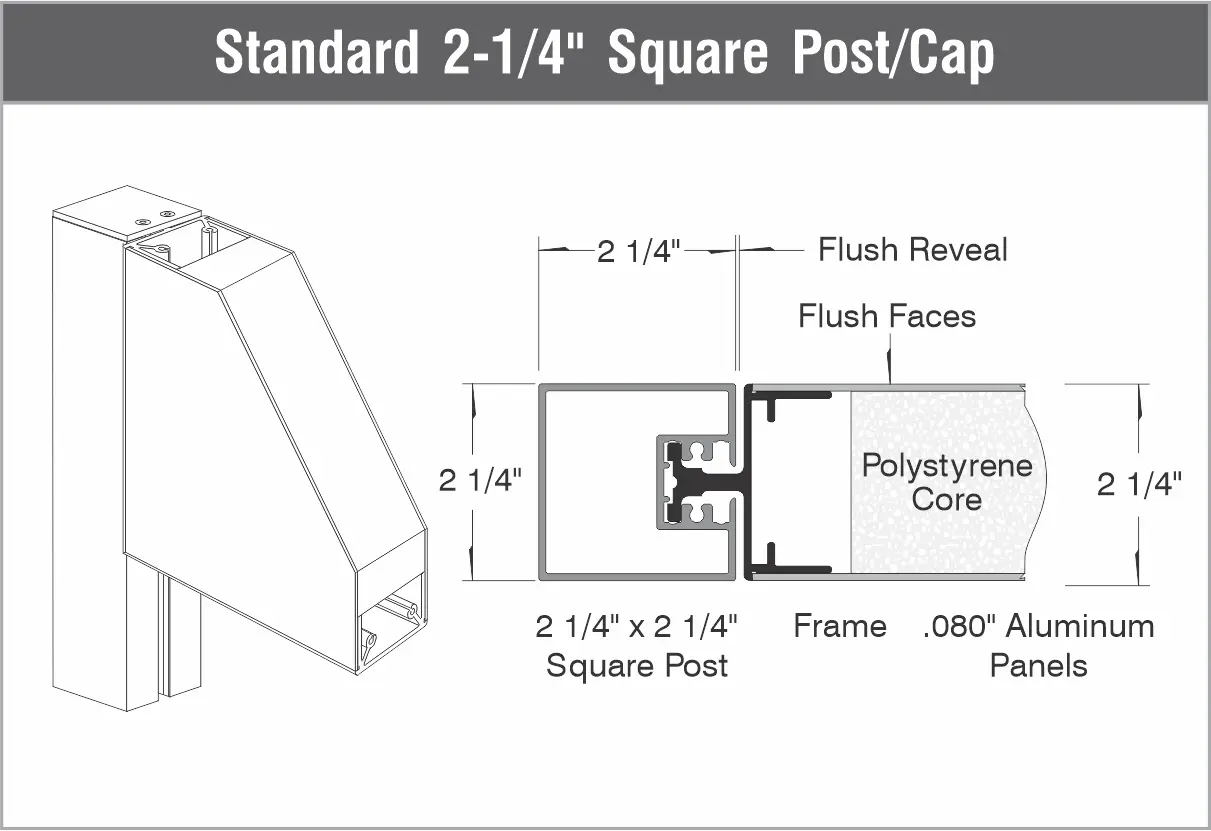

  1. Standard 2-1/4" square post
  2. Post slot offers optional flush or 1/2" reveal
  3. Injection molded post cap
  4. Corner key
  5. HED-225 top/bottom frame
  6. 2" Insulating polystyrene core
  7. .080" Aluminum message panel
  8. HED-225 mounting frame
  9. Locking square with set screw

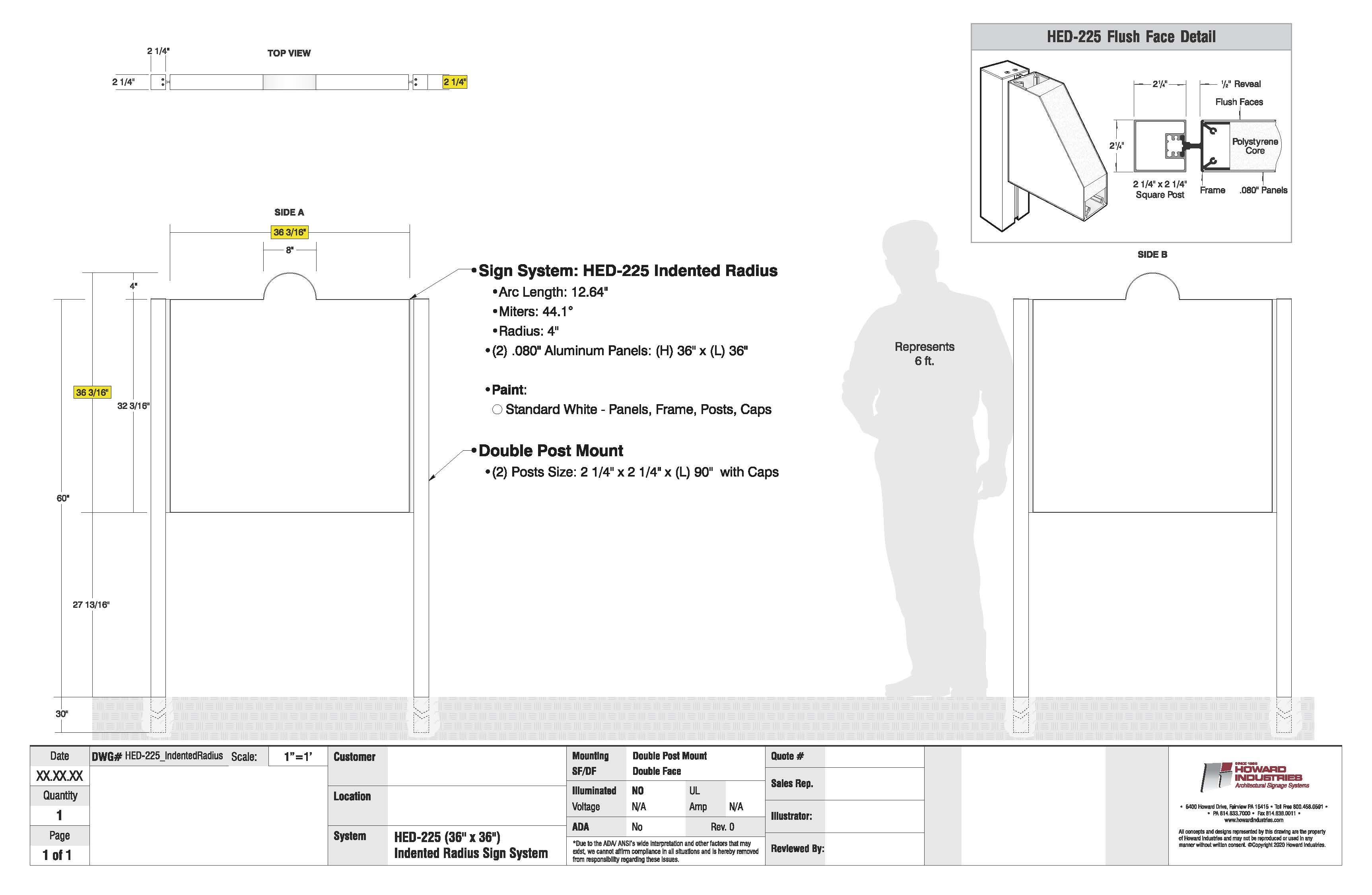

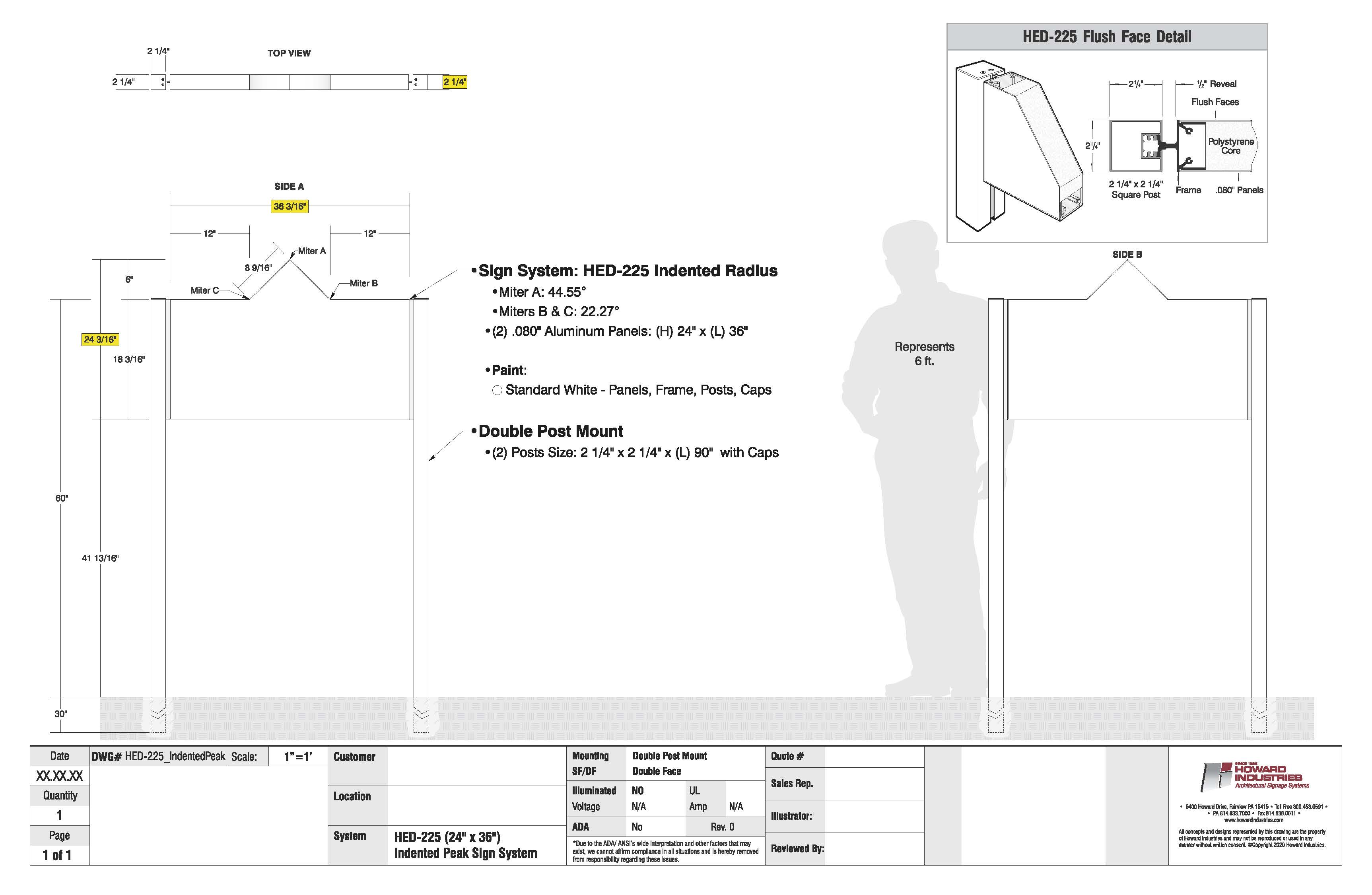

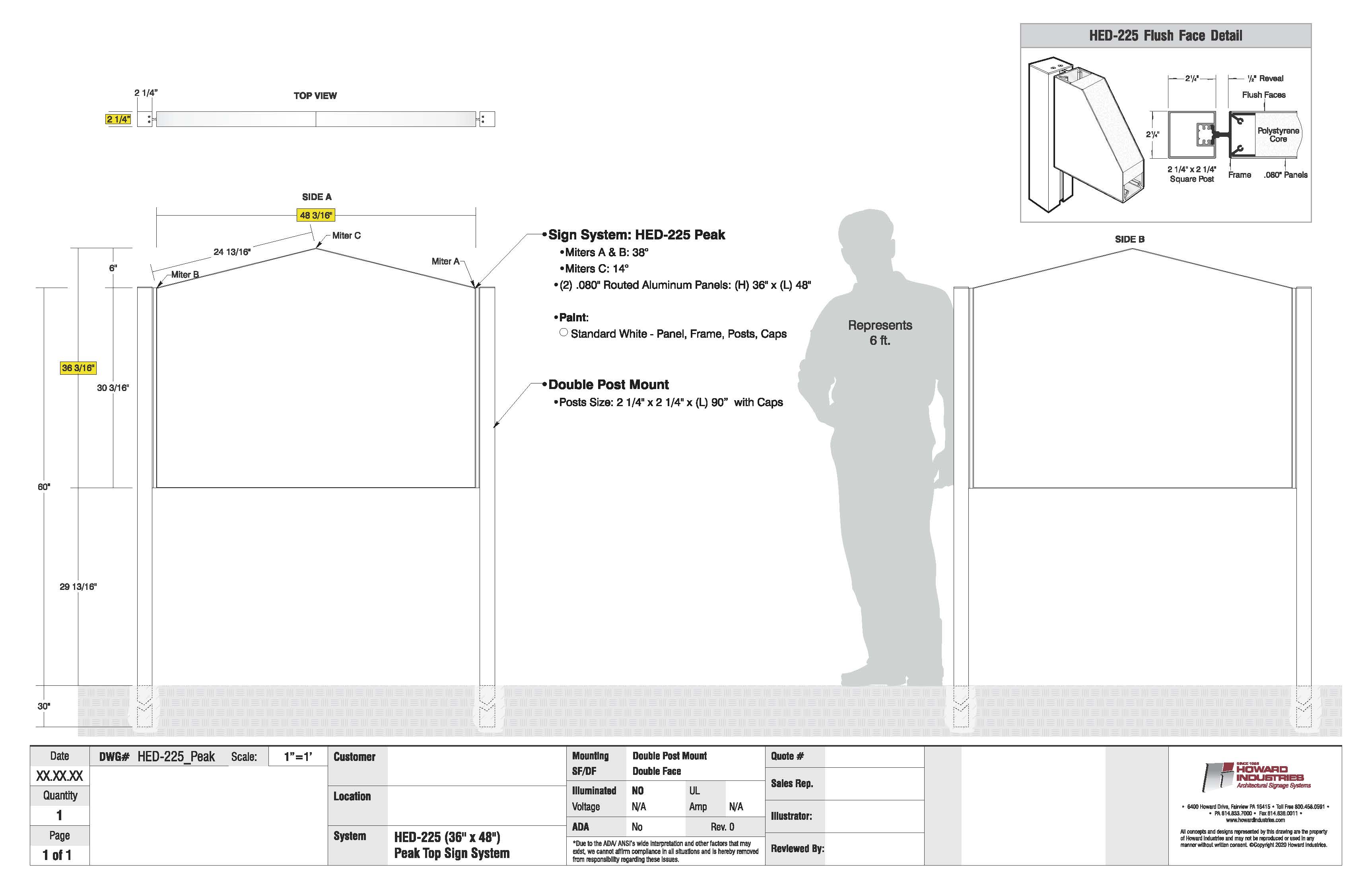

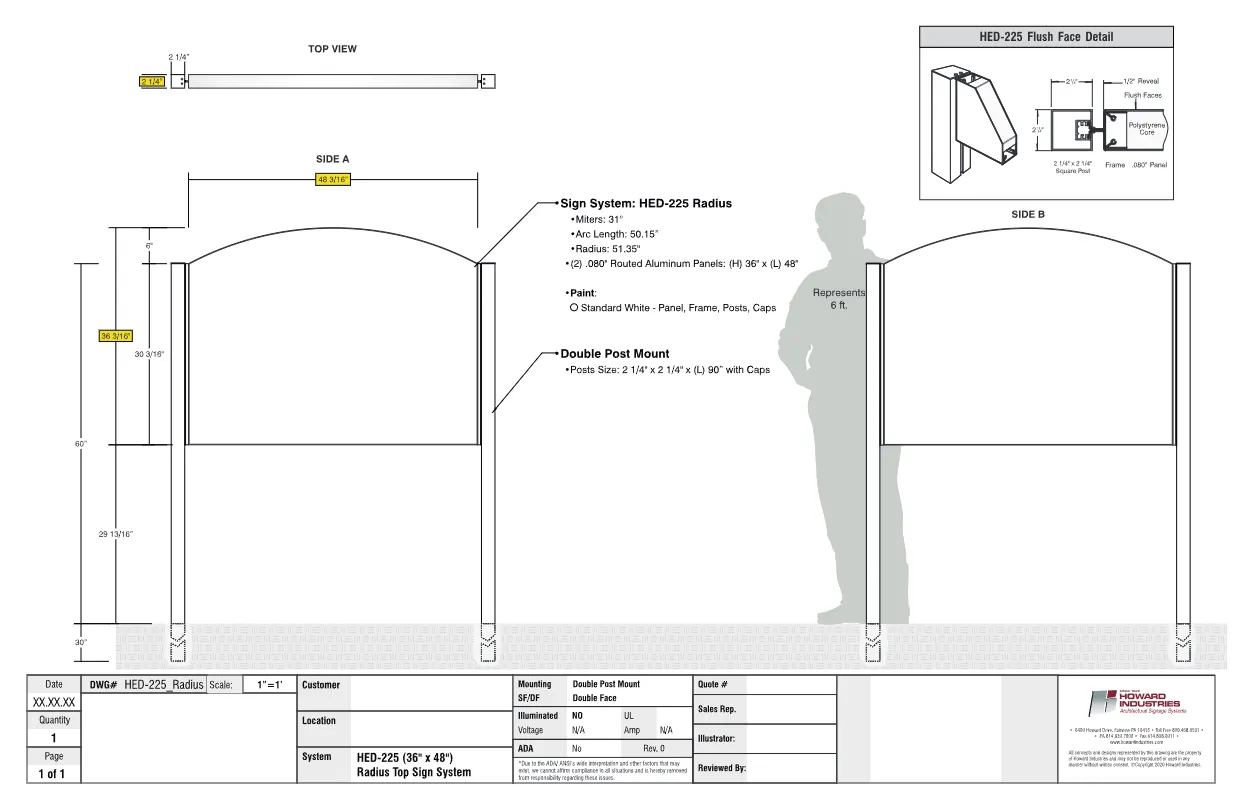

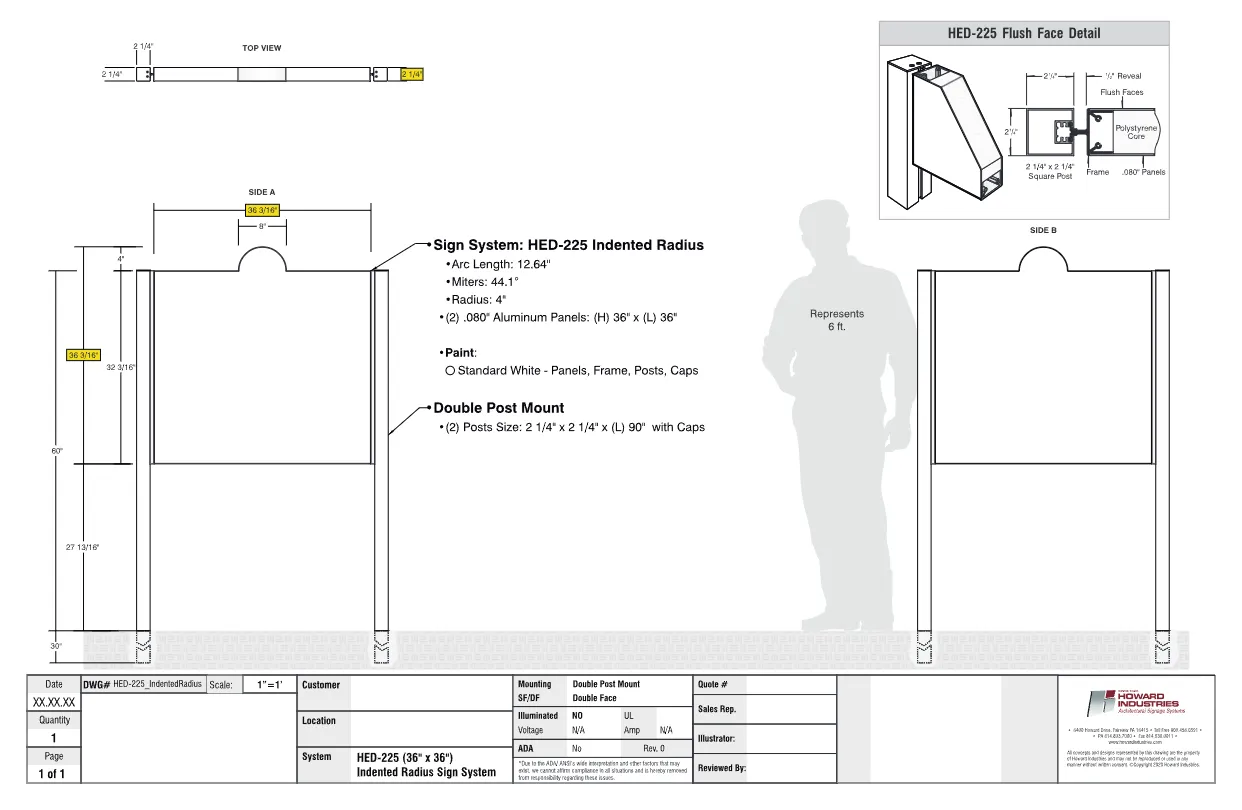

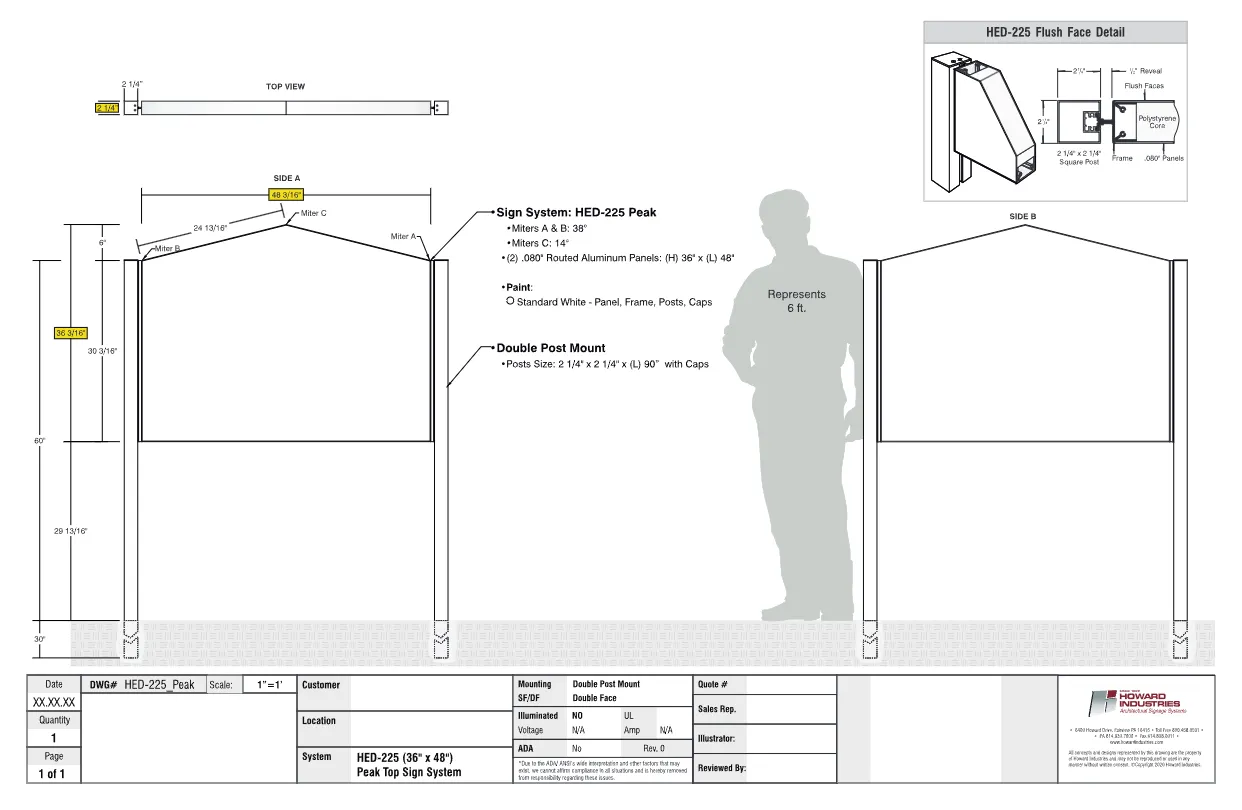

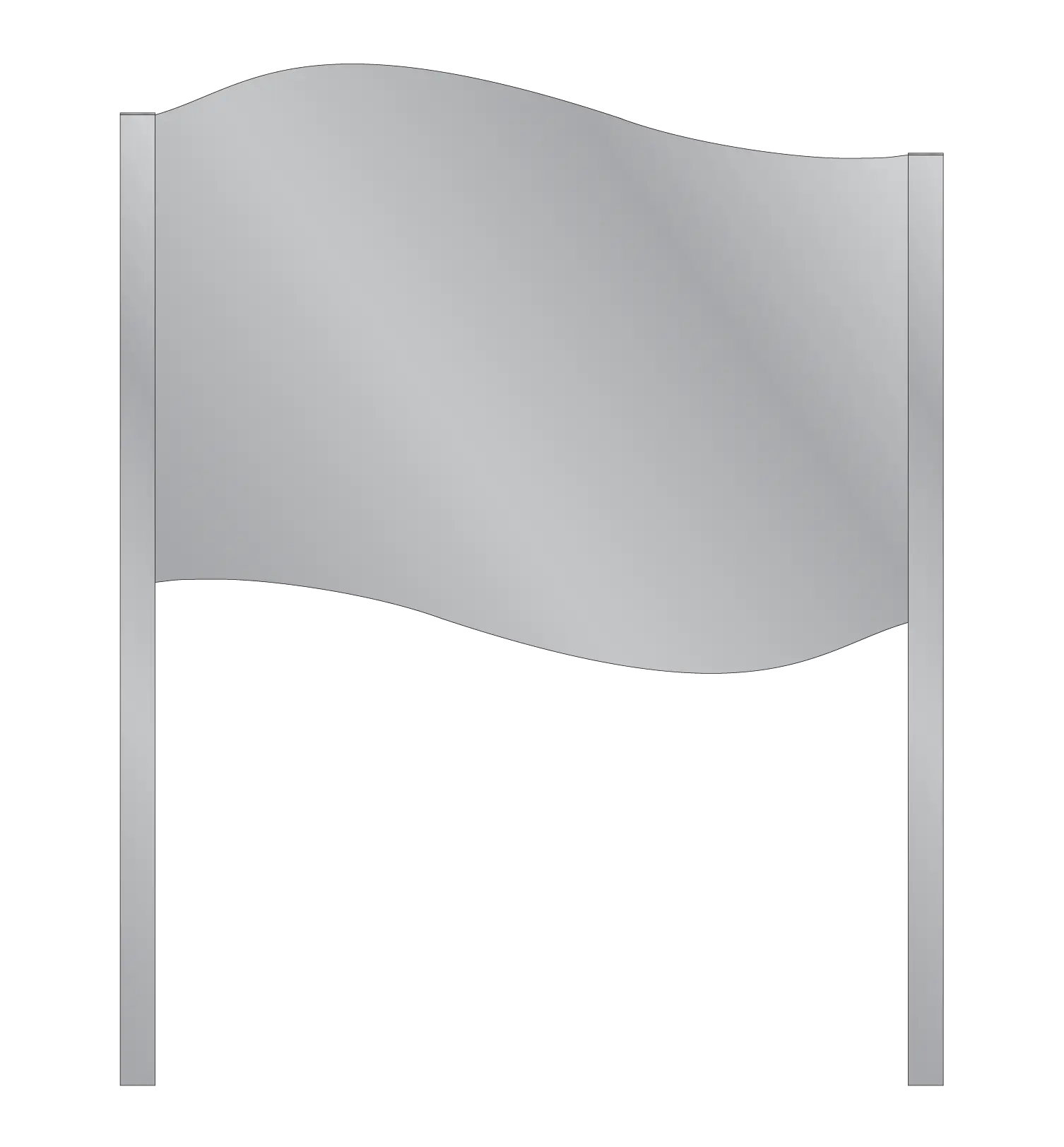

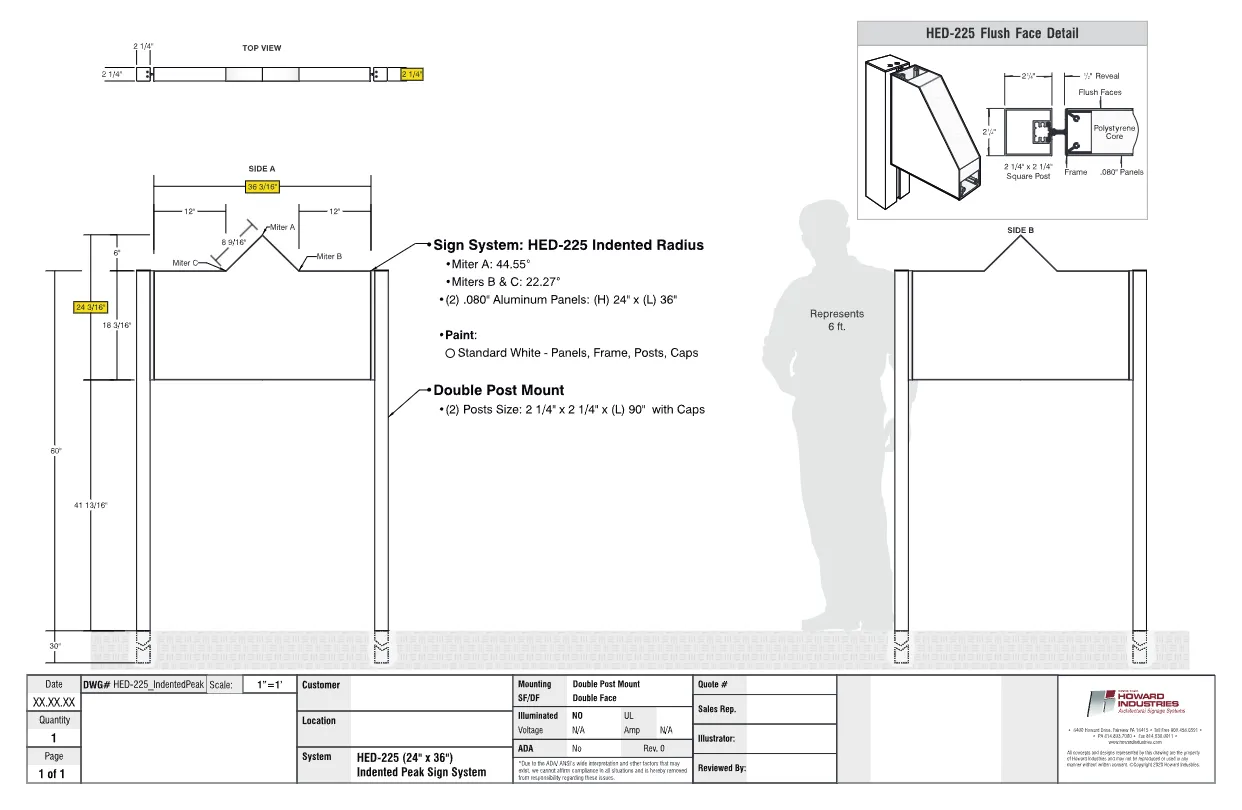

Popular Sign Tops

Max Size:
48" x 60"

Mounting Options:
Double Post

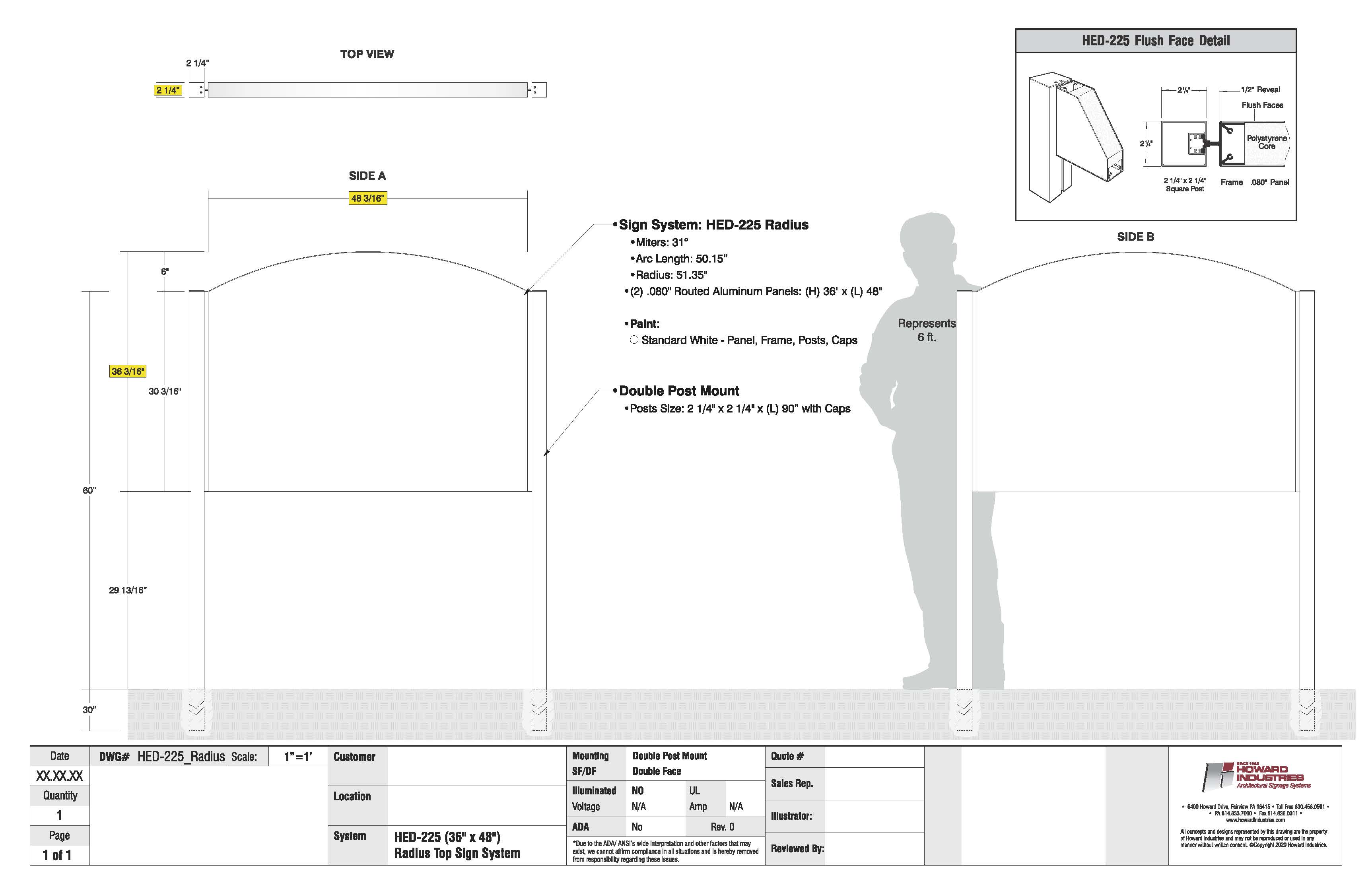

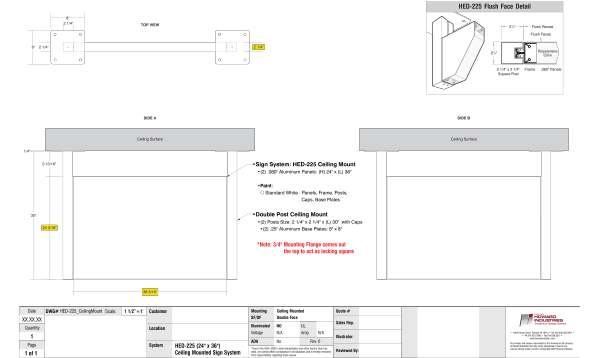

Center Post

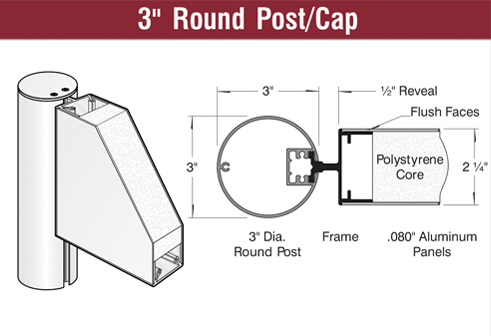

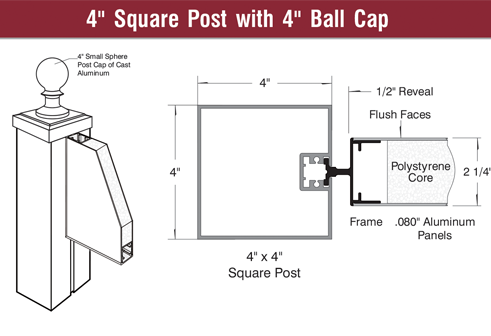

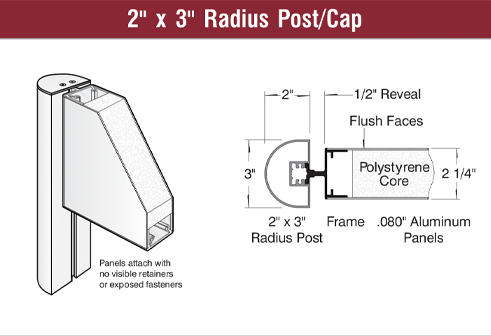

Decorative Post Caps
