Post and Panel Sign System

The HED-100 post and panel system contains a single panel that incorporates a beveled frame surround. This system has the same "picture frame" look as the HED-150 but comes with a standard post of 2-1/4" x 3", allowing for a larger panel size of up to 32 square feet or a maximum panel size of 48" x" 96". The beveled frame assembly slides into our slotted 2-1/4" x 3" mounting posts which carry the frame flush or with a 1/2" reveal. Post caps and concealed locking squares hold the frame securely in place.


Often Used For

  • Directional Signage
  • Parking Signage
  • Regulatory Signage
  • Secondary Site Identification

Customizable to Fit Your Signage Needs

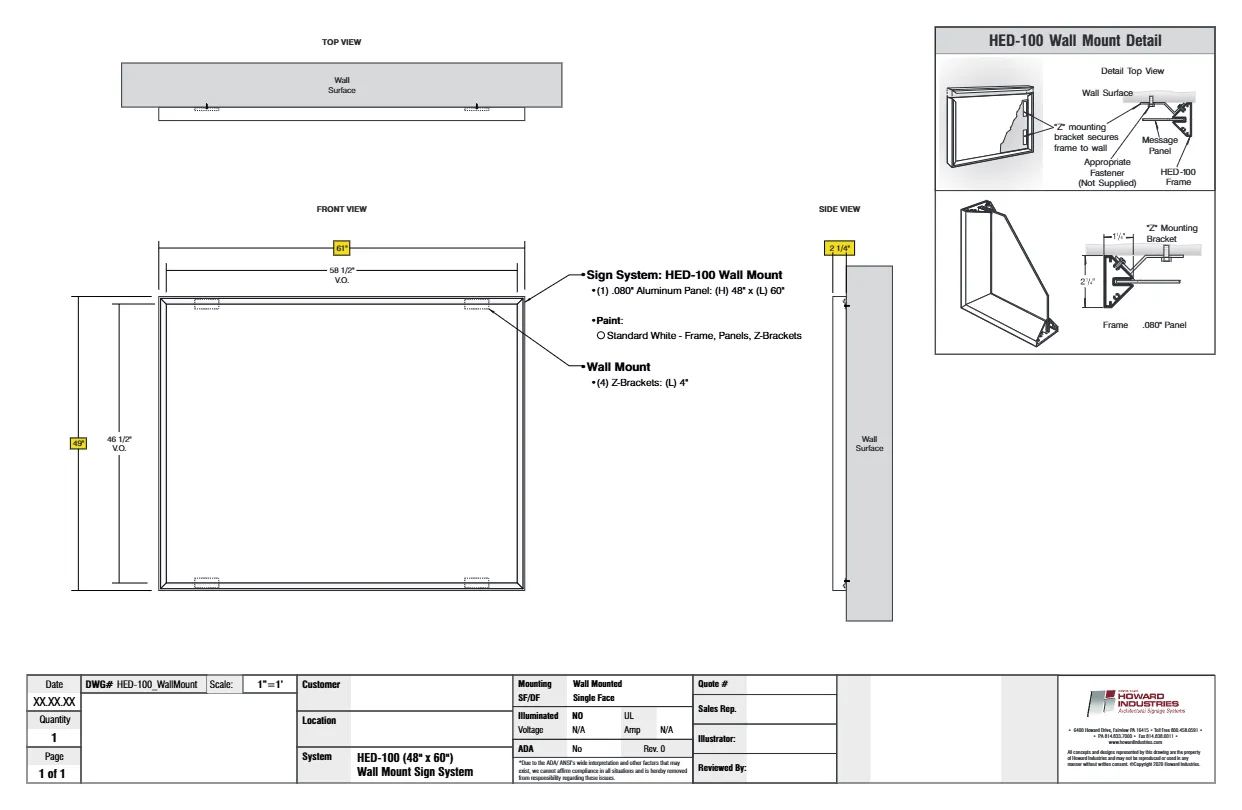

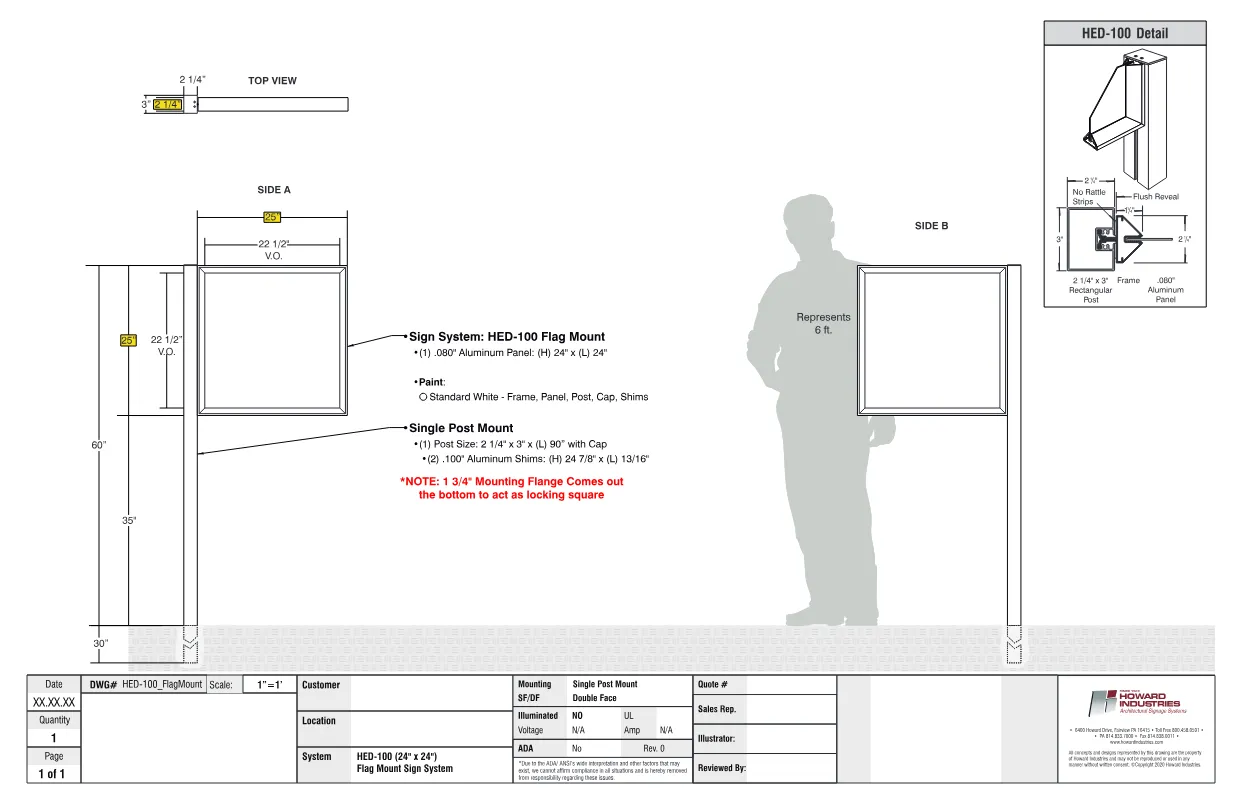

The HED-100 system is available in double post, flag, ceiling, and wall mount configurations. Often, the HED-100 system is used as the "header" sign with E-Z Change Wordbars mounted directly below, allowing for future copy changes to multiple listings. With the bigger square foot allowance, upgrade to a larger post and choose from one of our decorative caps. All stock material finish is off-the-shelf primer white or take advantage of our color matching capabilities and/or custom color options.

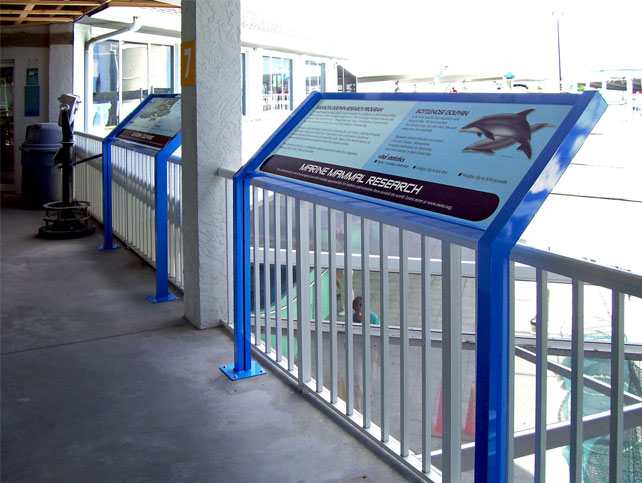

hed 100 mote marine lab angled back

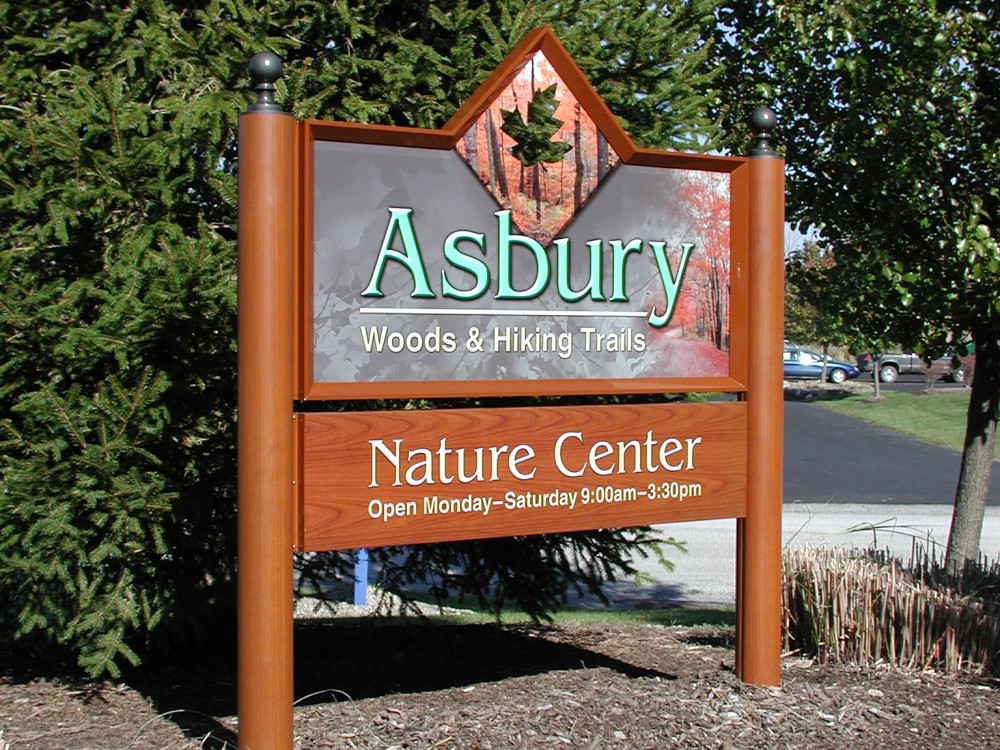

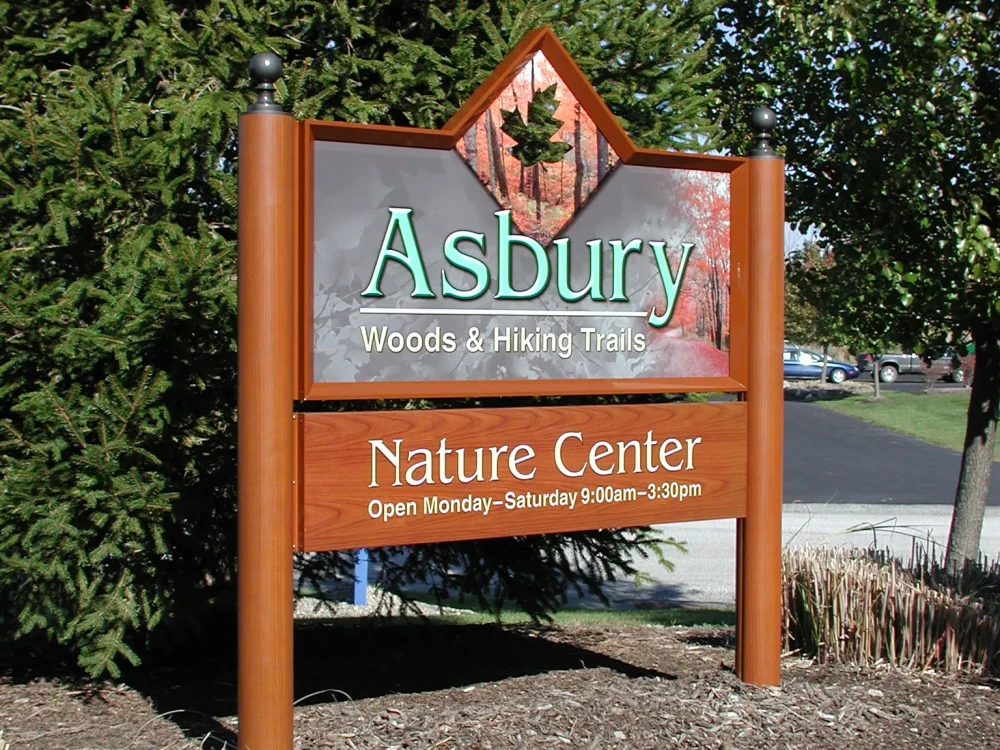

Asbury Woods

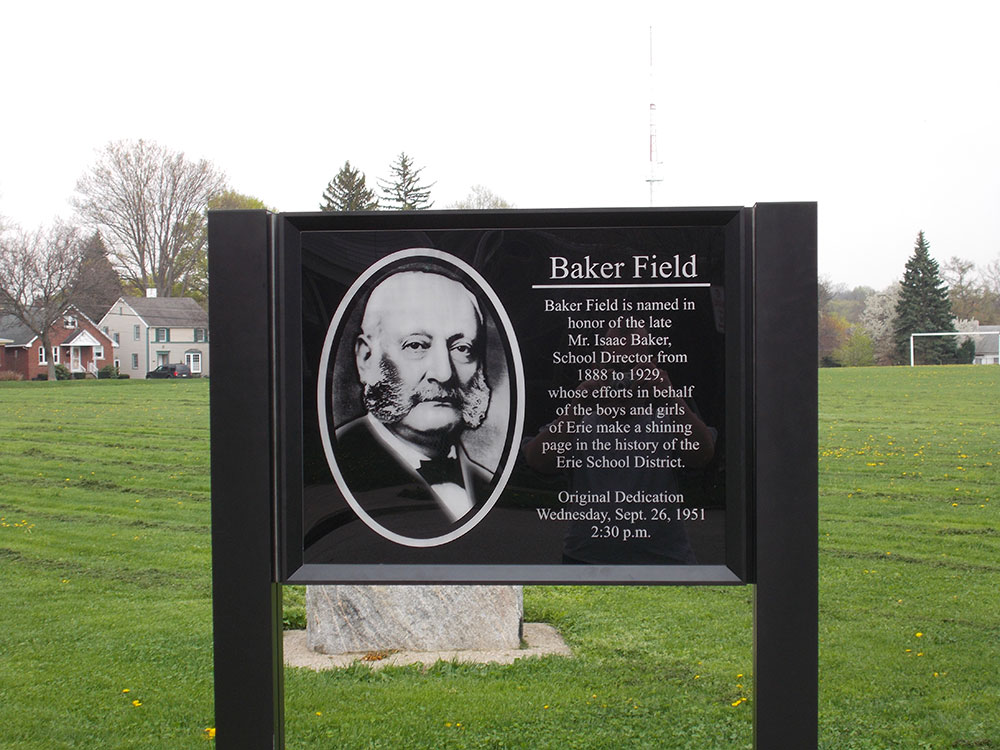

Baker Field

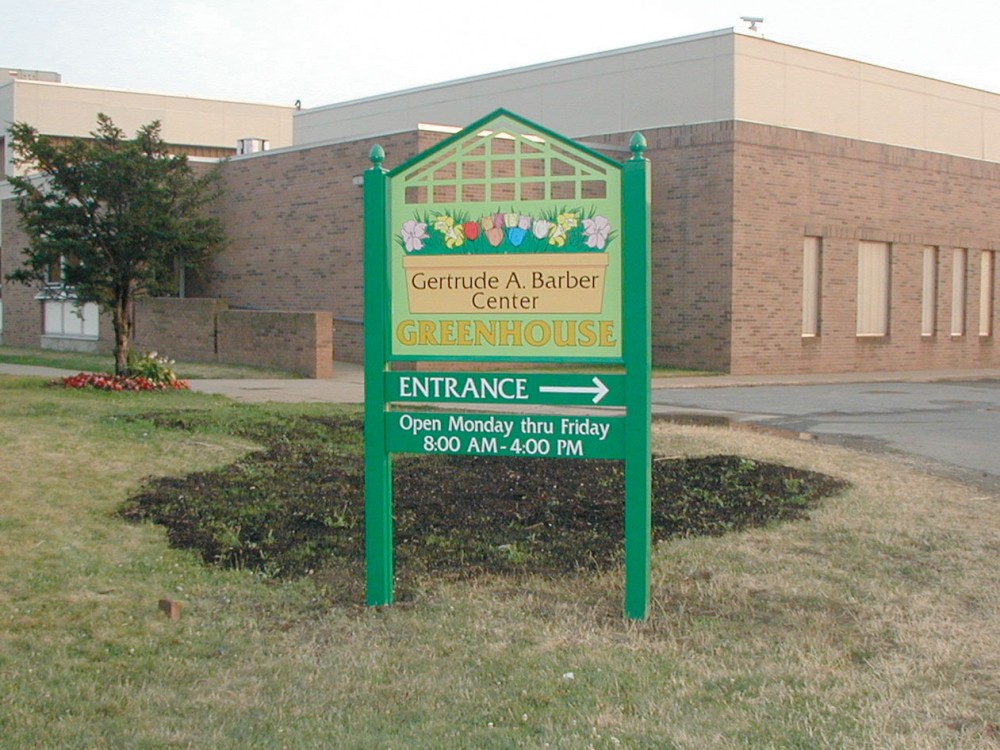

Barber Greenhouse

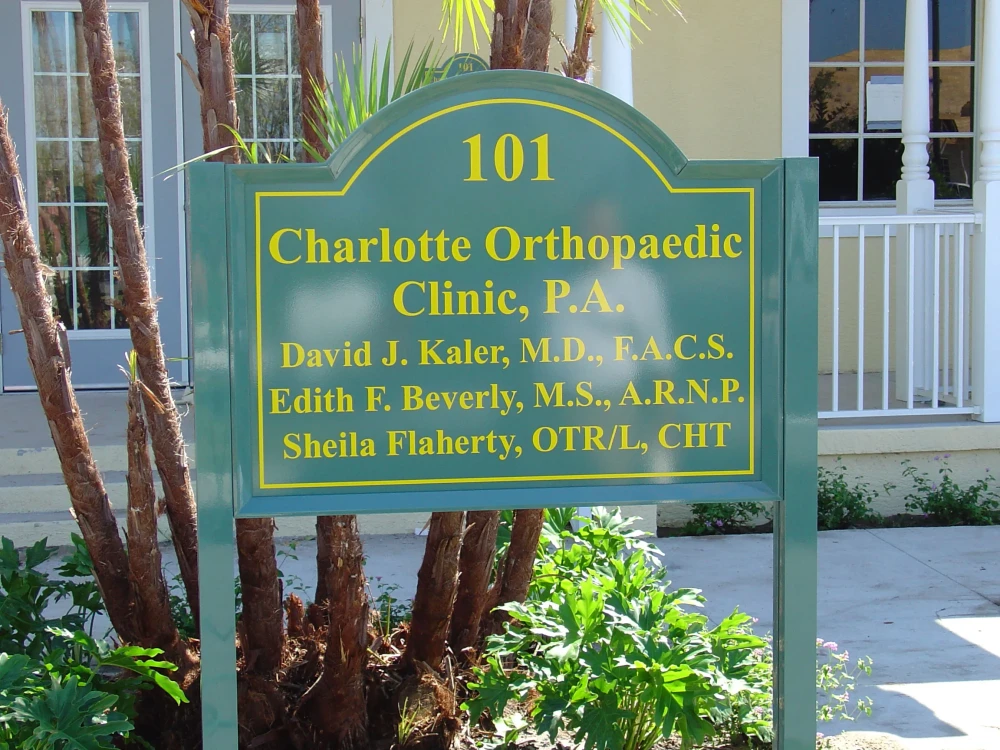

Charlotte Clinic
Tech Specs

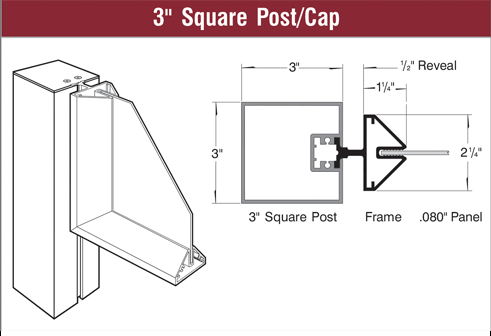

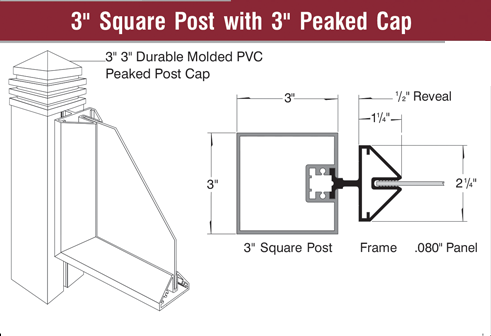

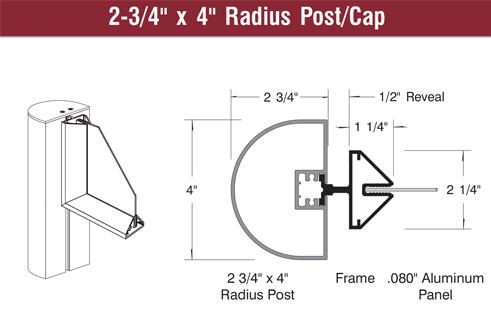

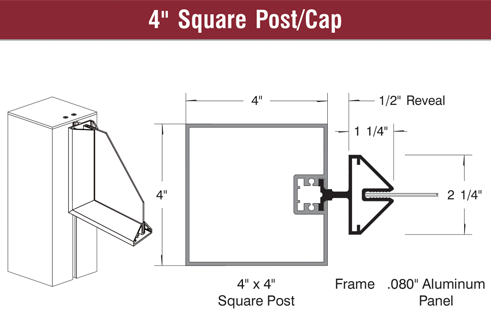

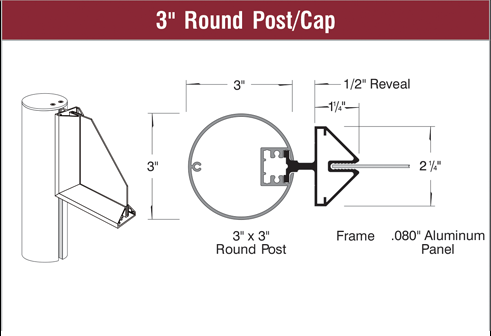

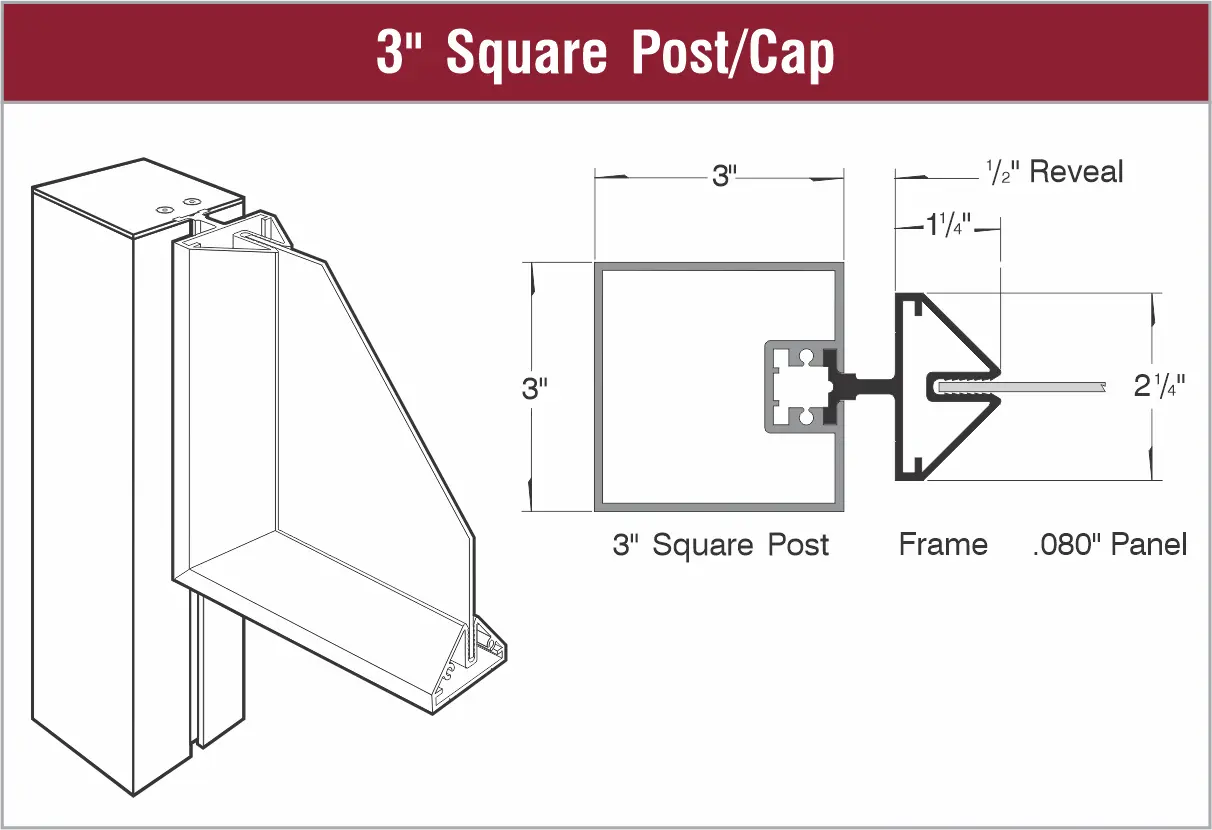

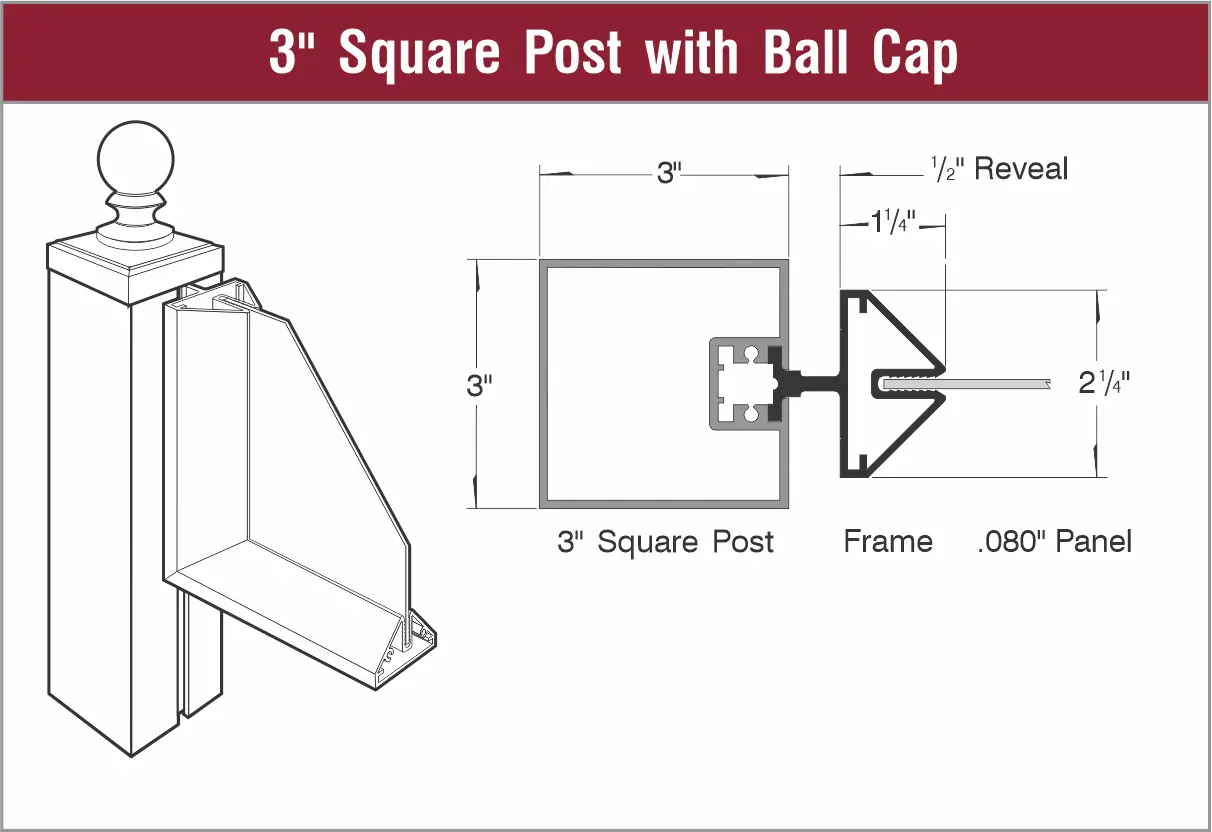

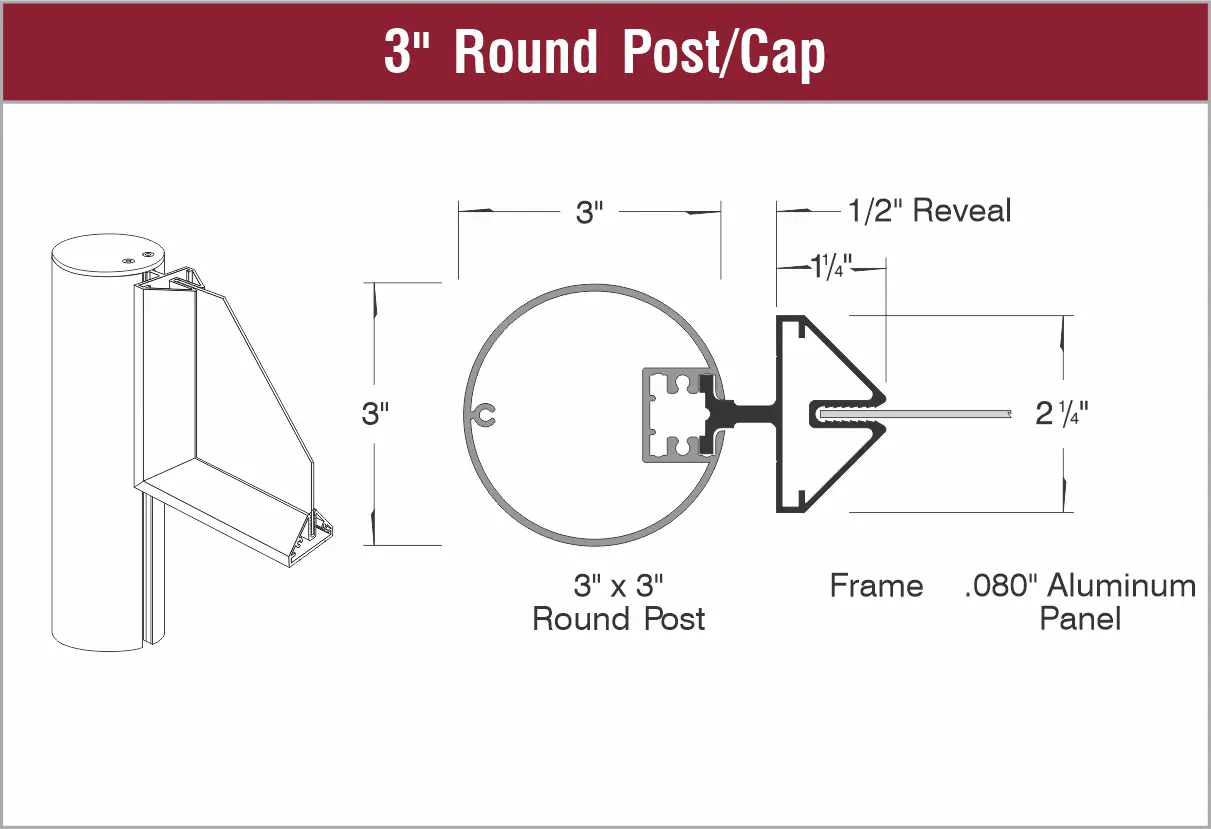

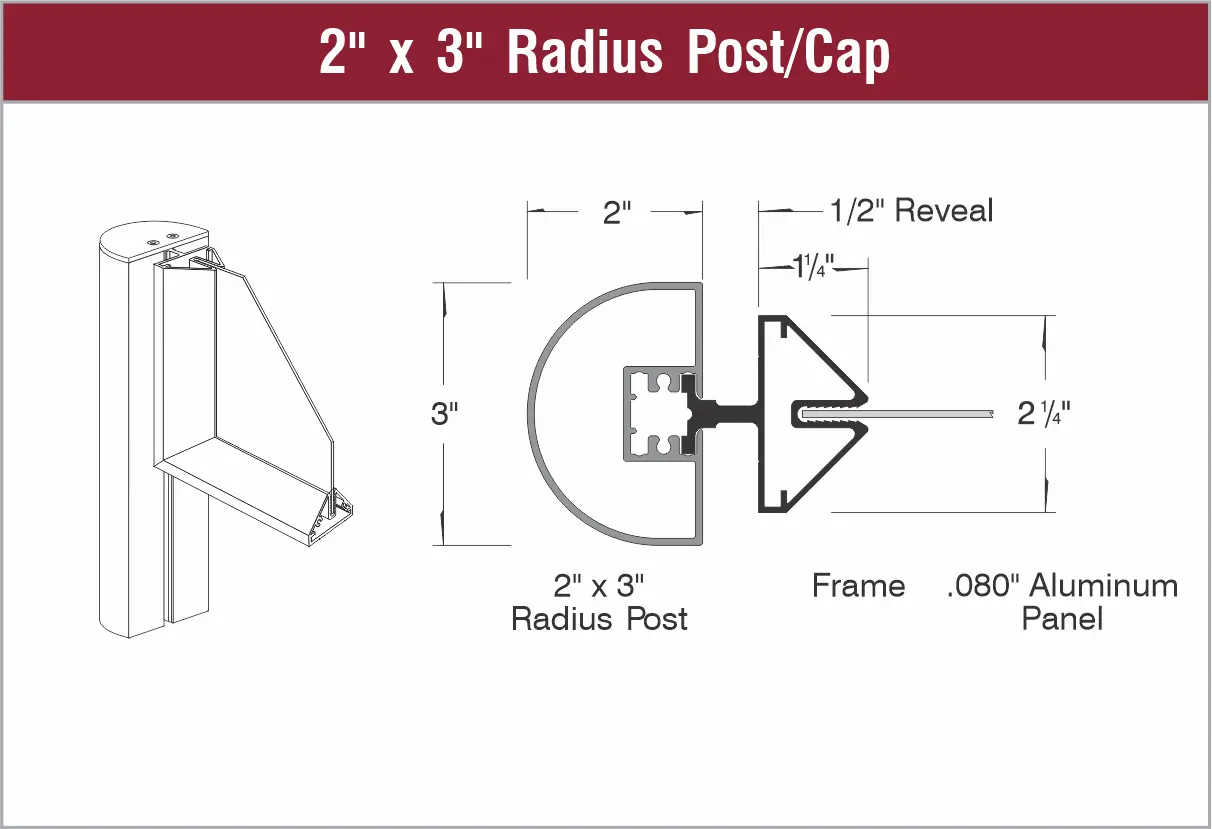

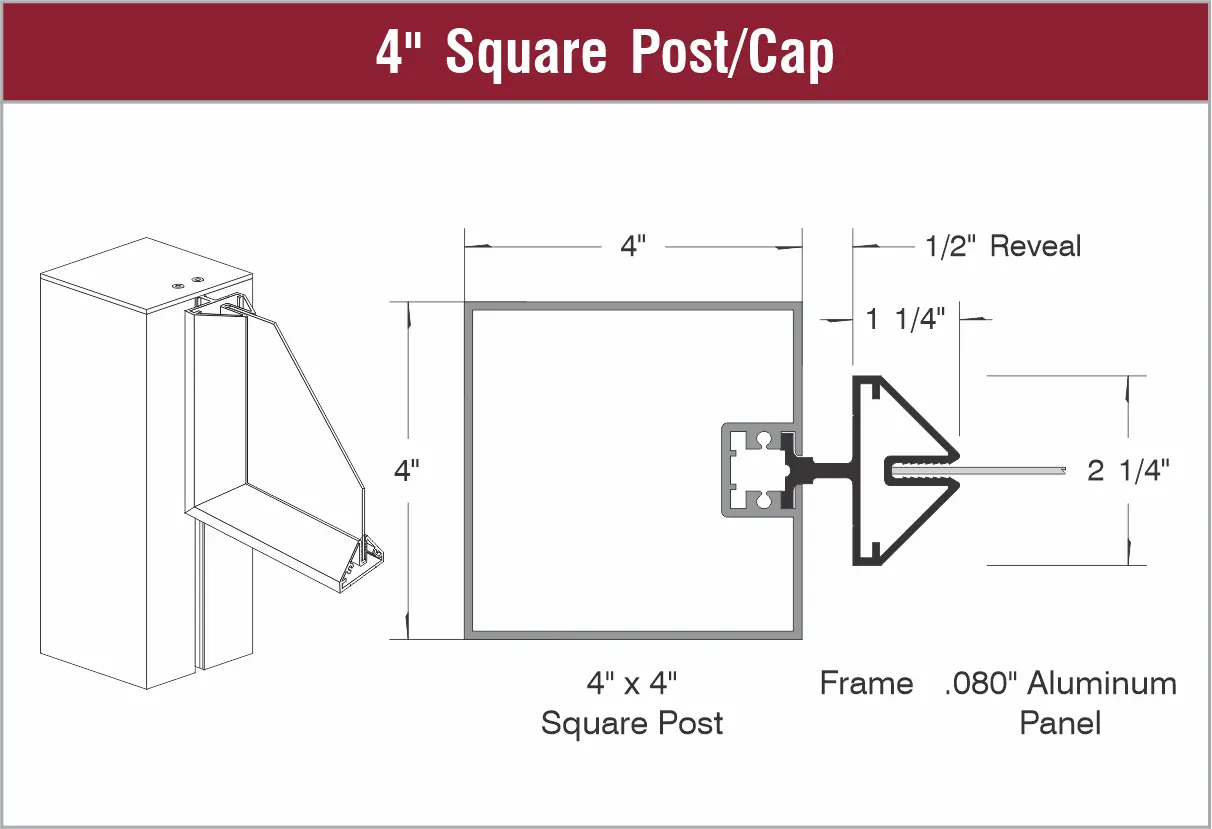

Post and Post Caps

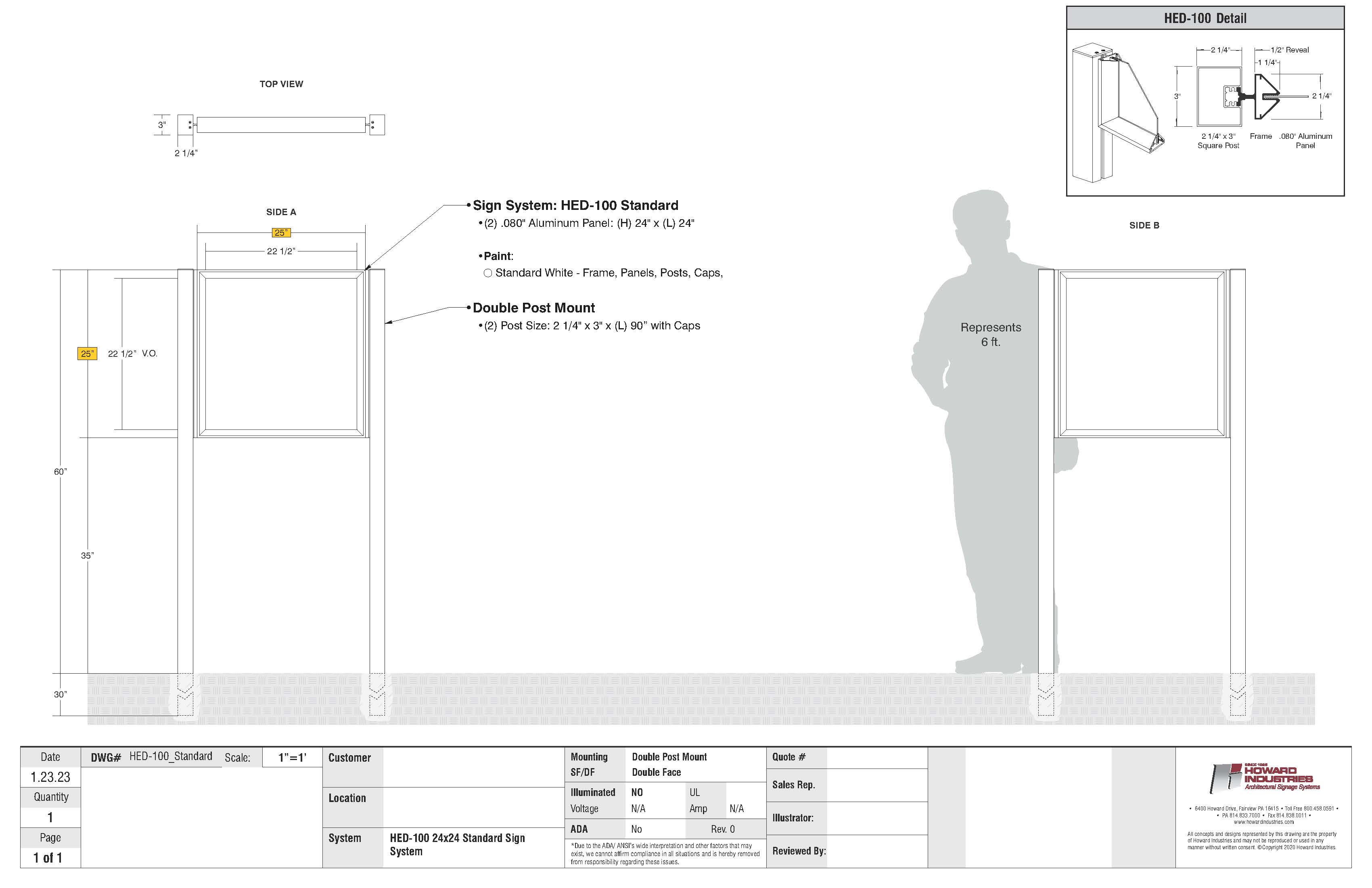

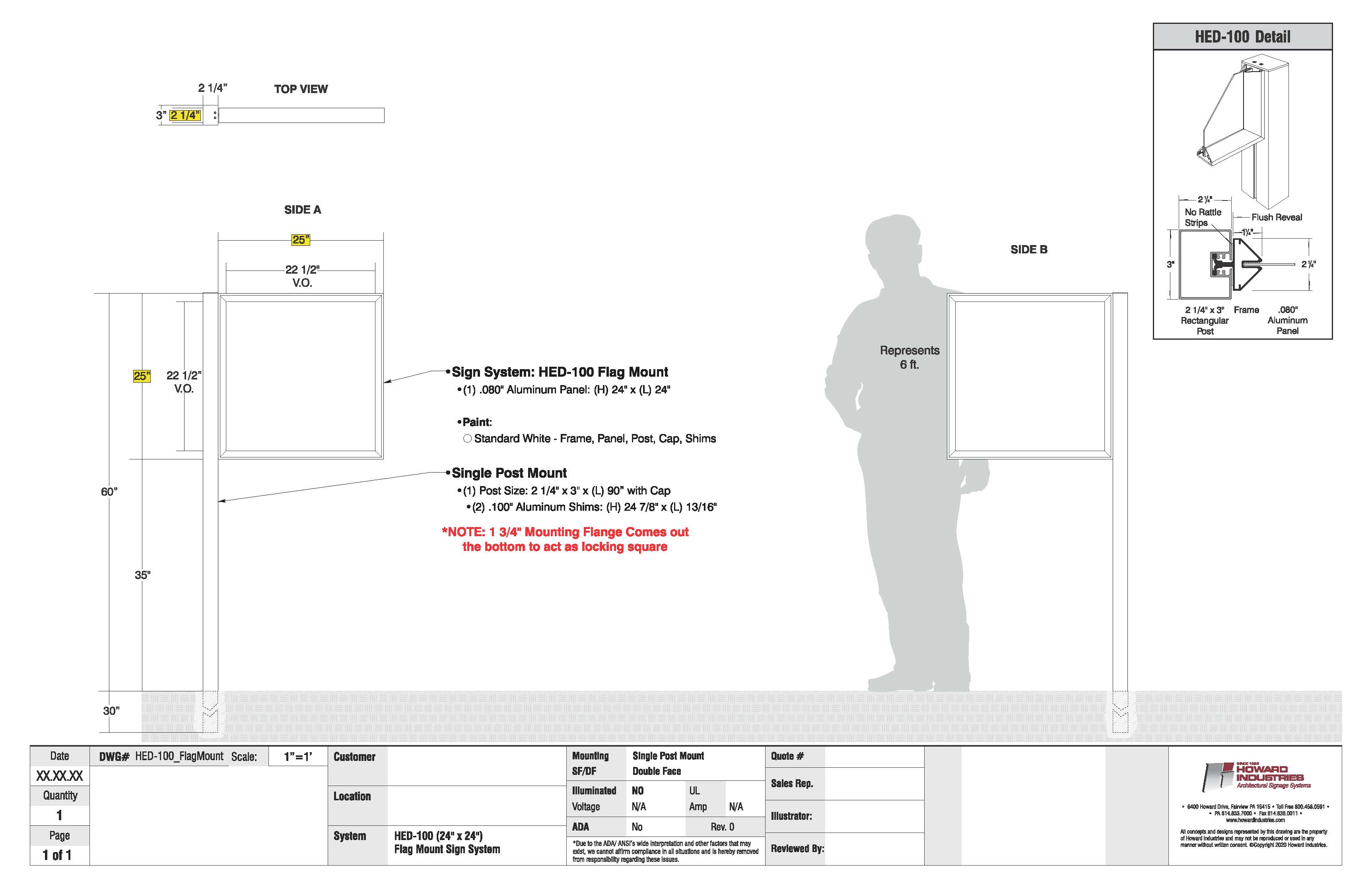

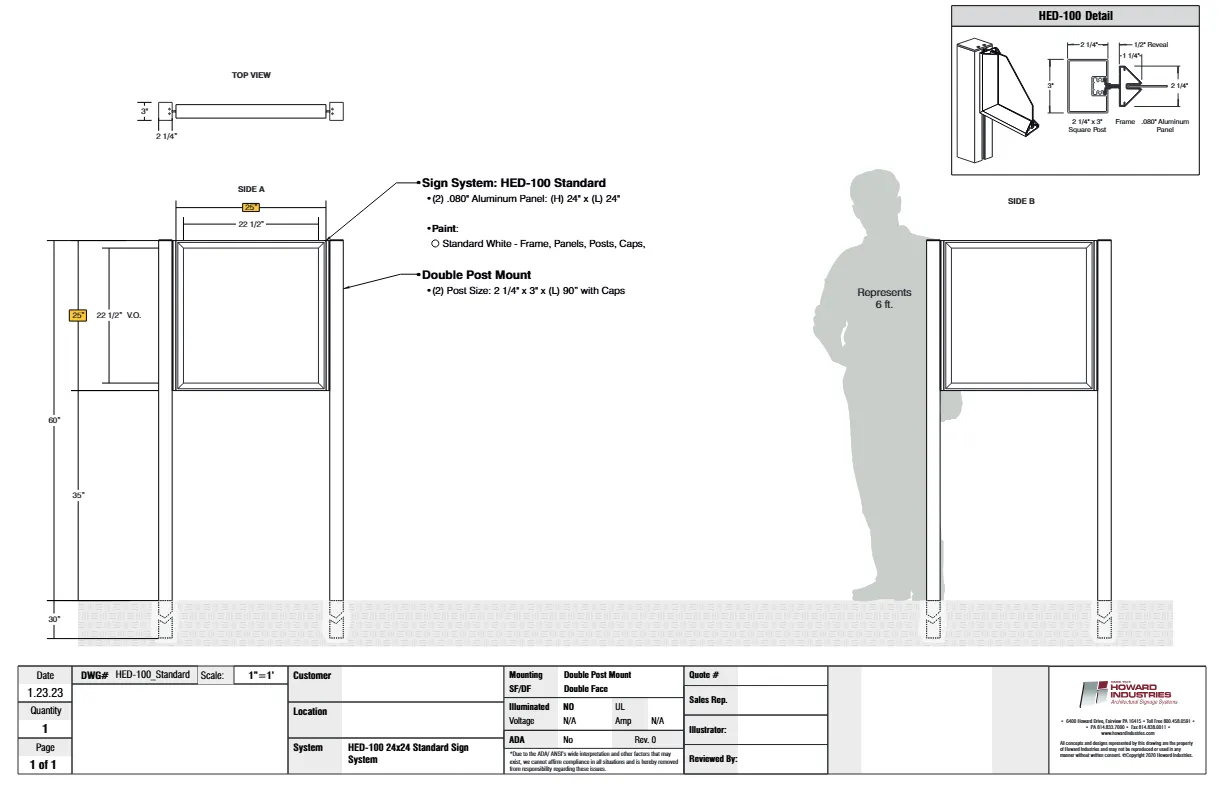

Hed-100 Technical Detail

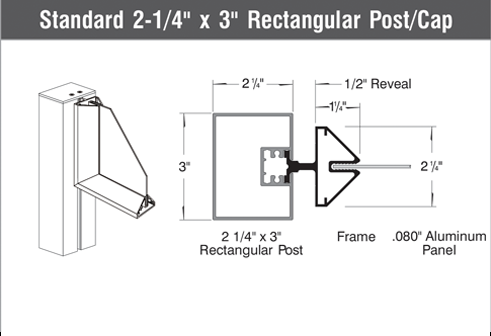

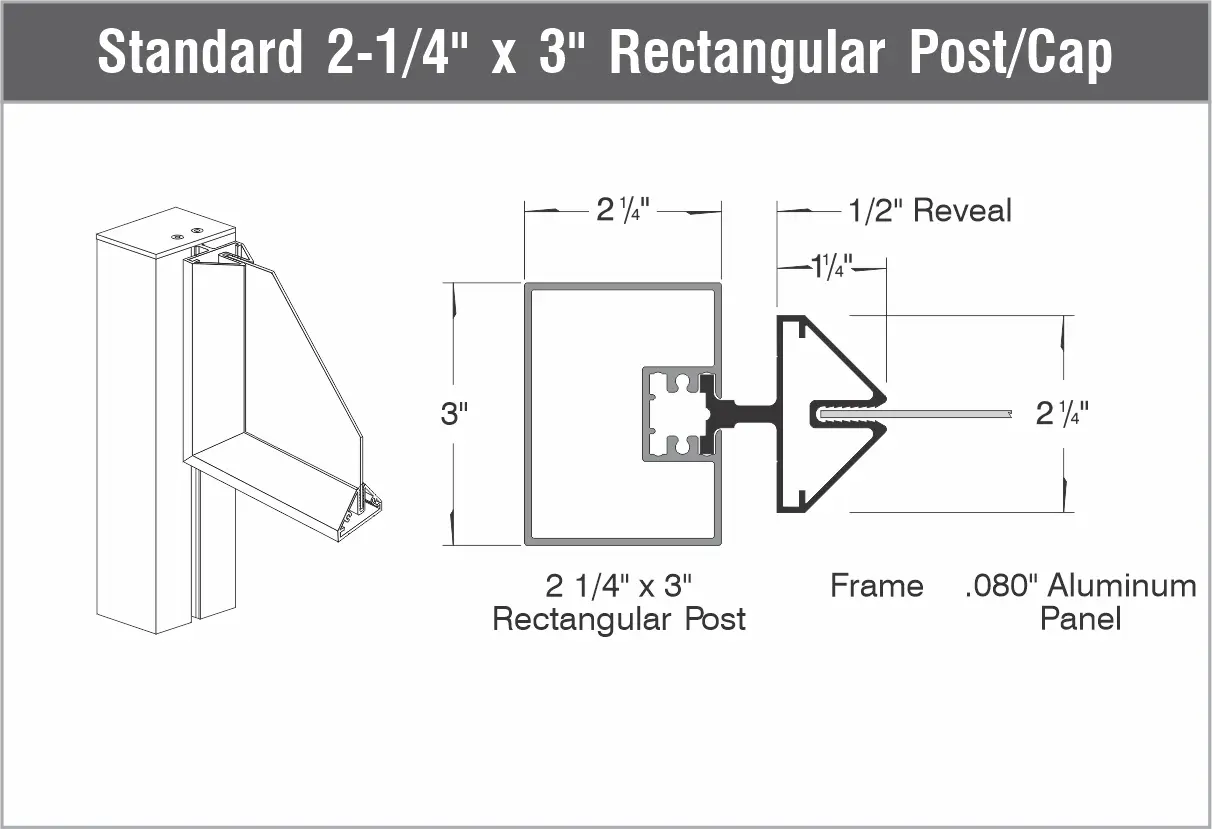

  1. Standard 2-1/4" x 3" rectangular post
  2. Post slot offers optional flush or 1/2" reveal
  3. Injection molded post cap
  4. Corner key
  5. HED-100 top/bottom frame
  6. .080" Aluminum message panel
  7. HED-100 mounting frame
  8. Locking square with set screw

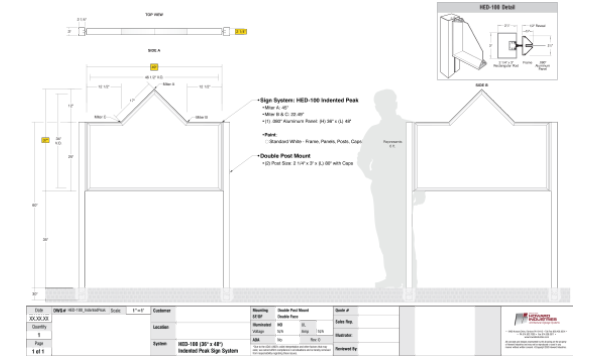

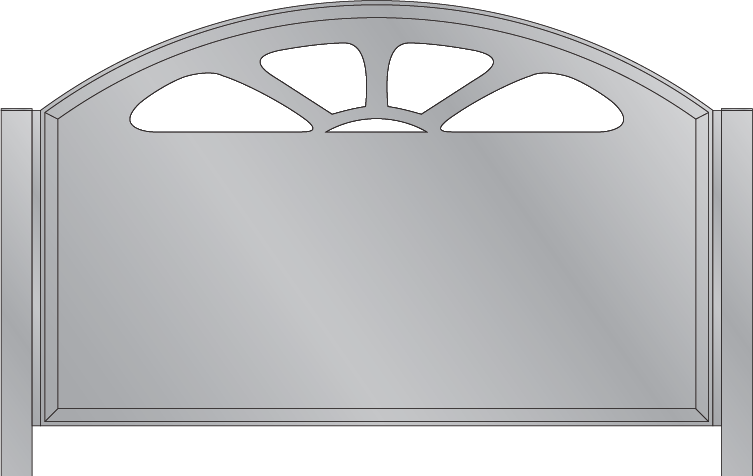

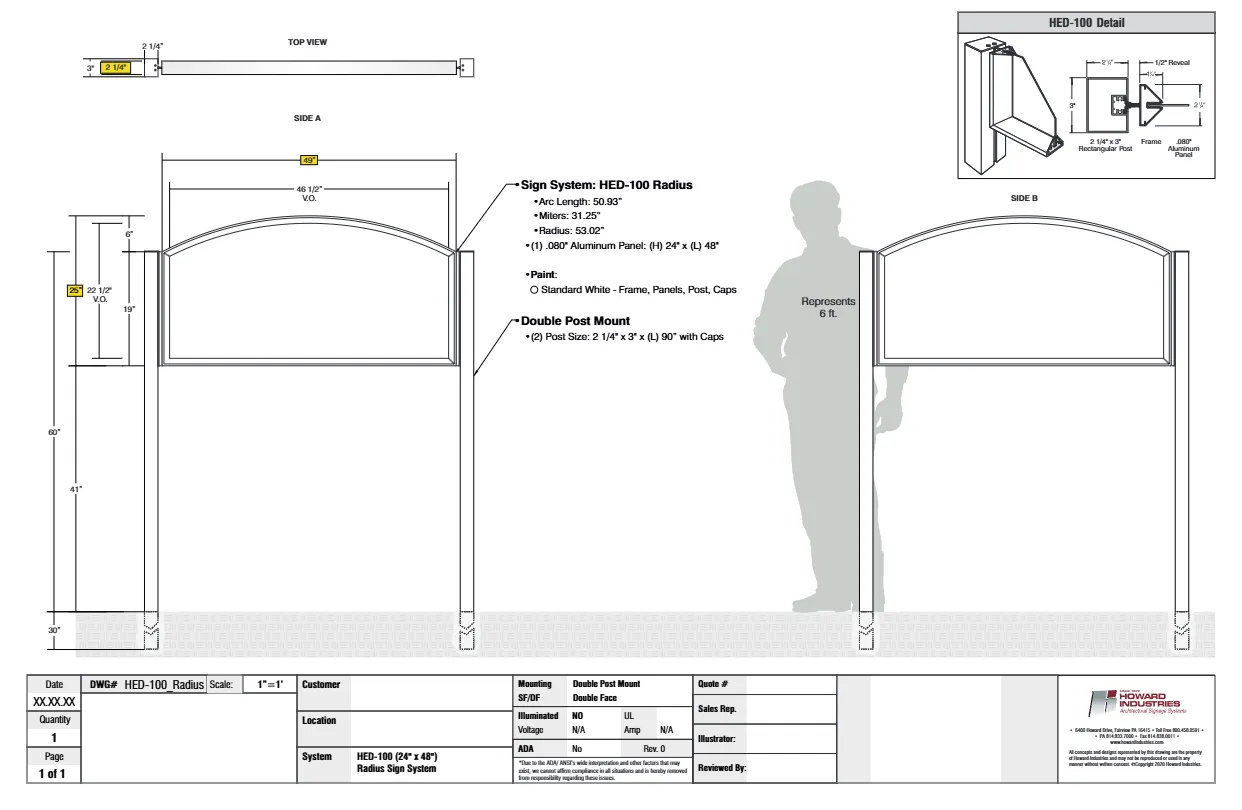

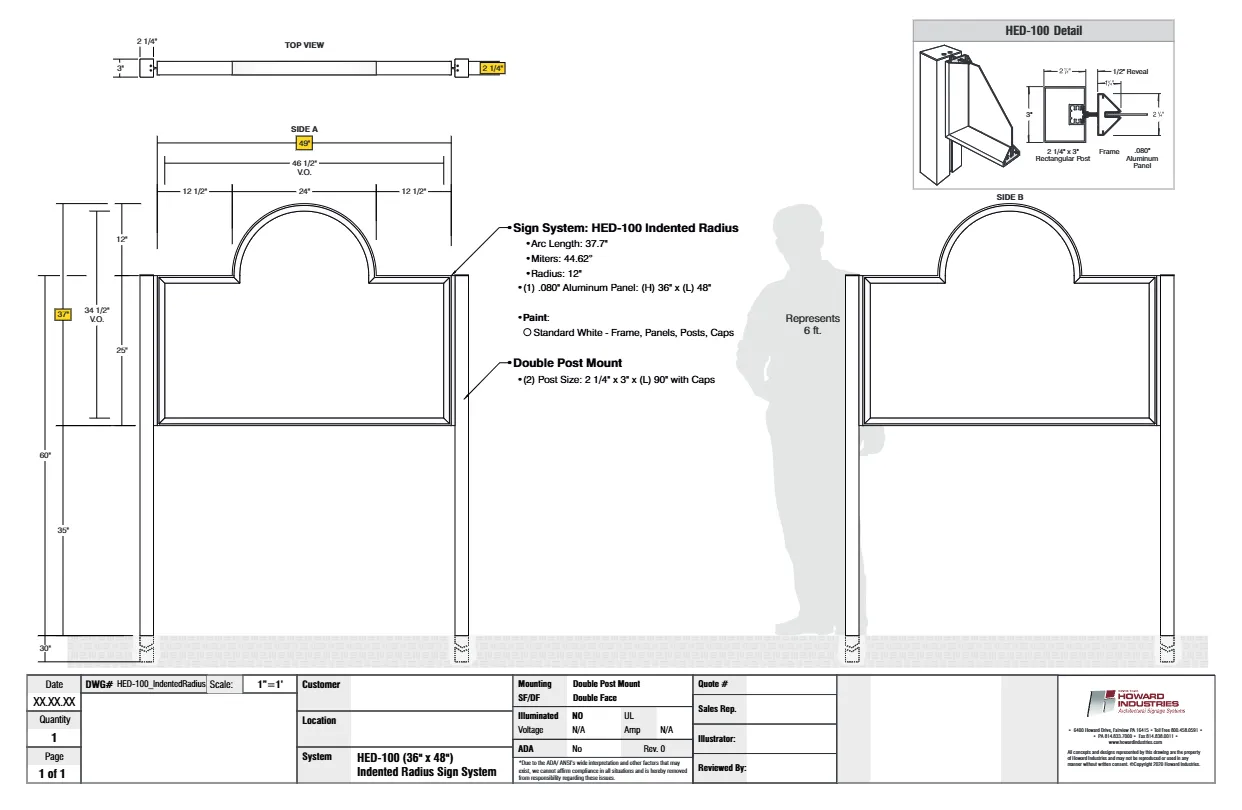

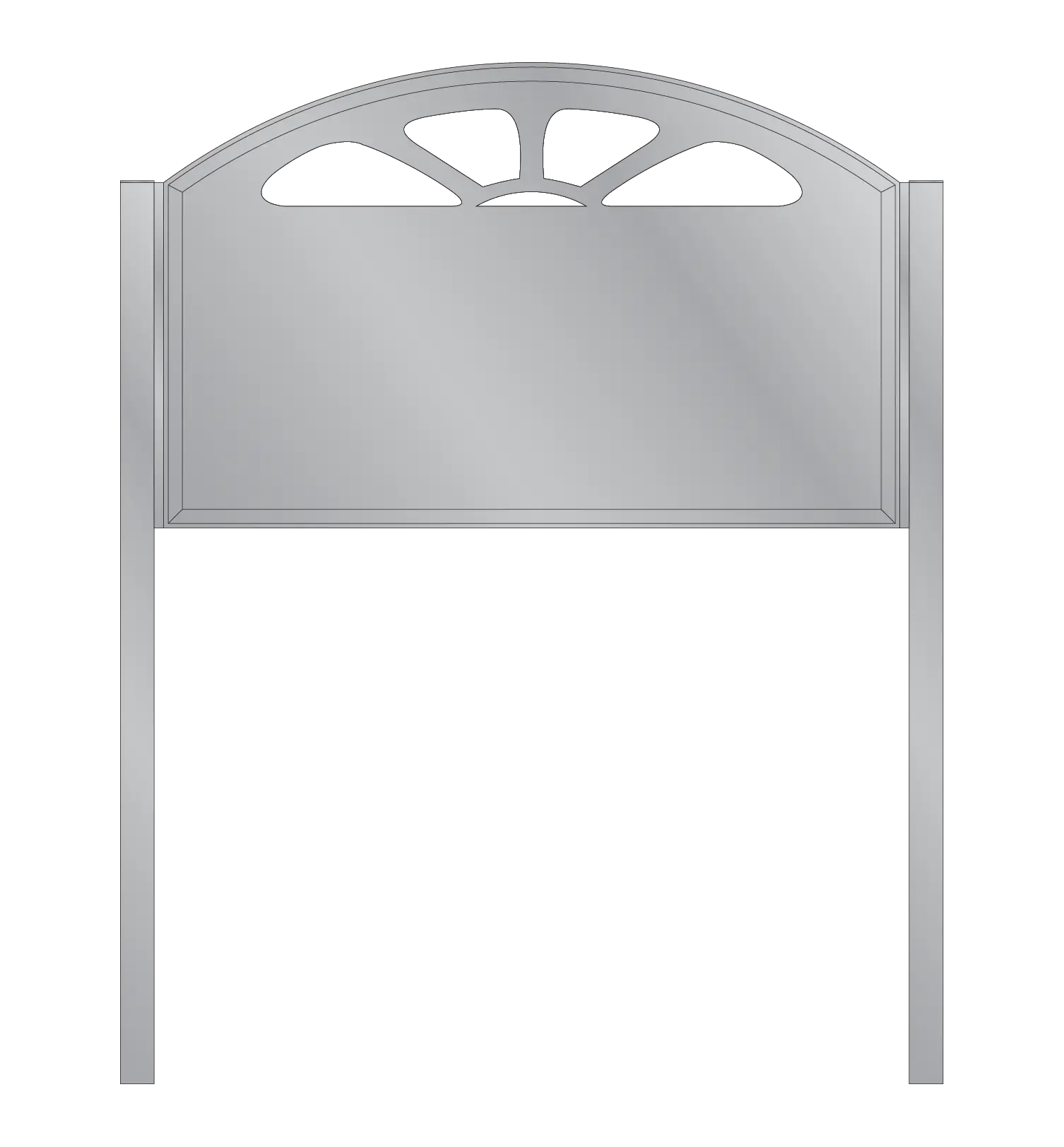

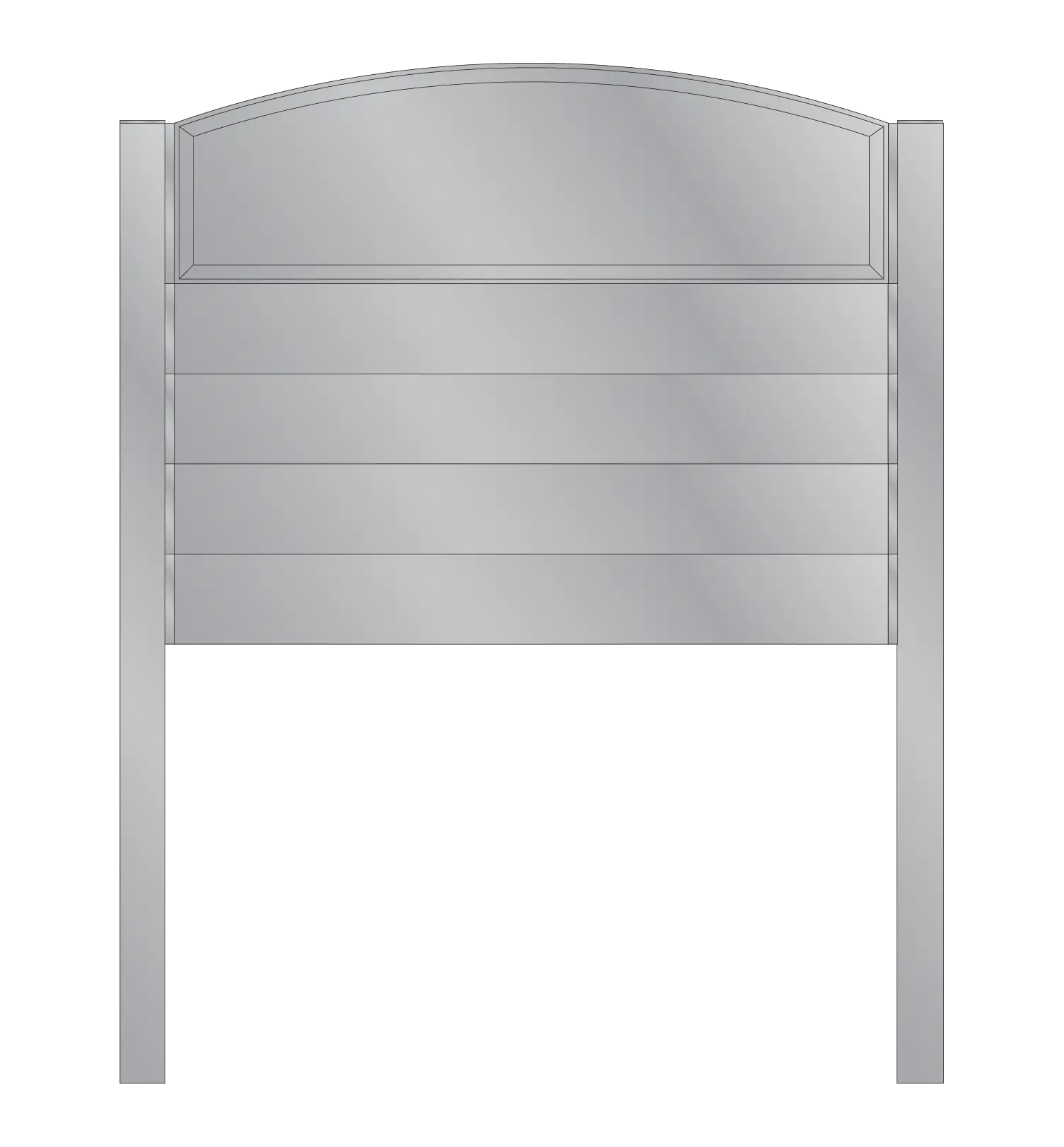

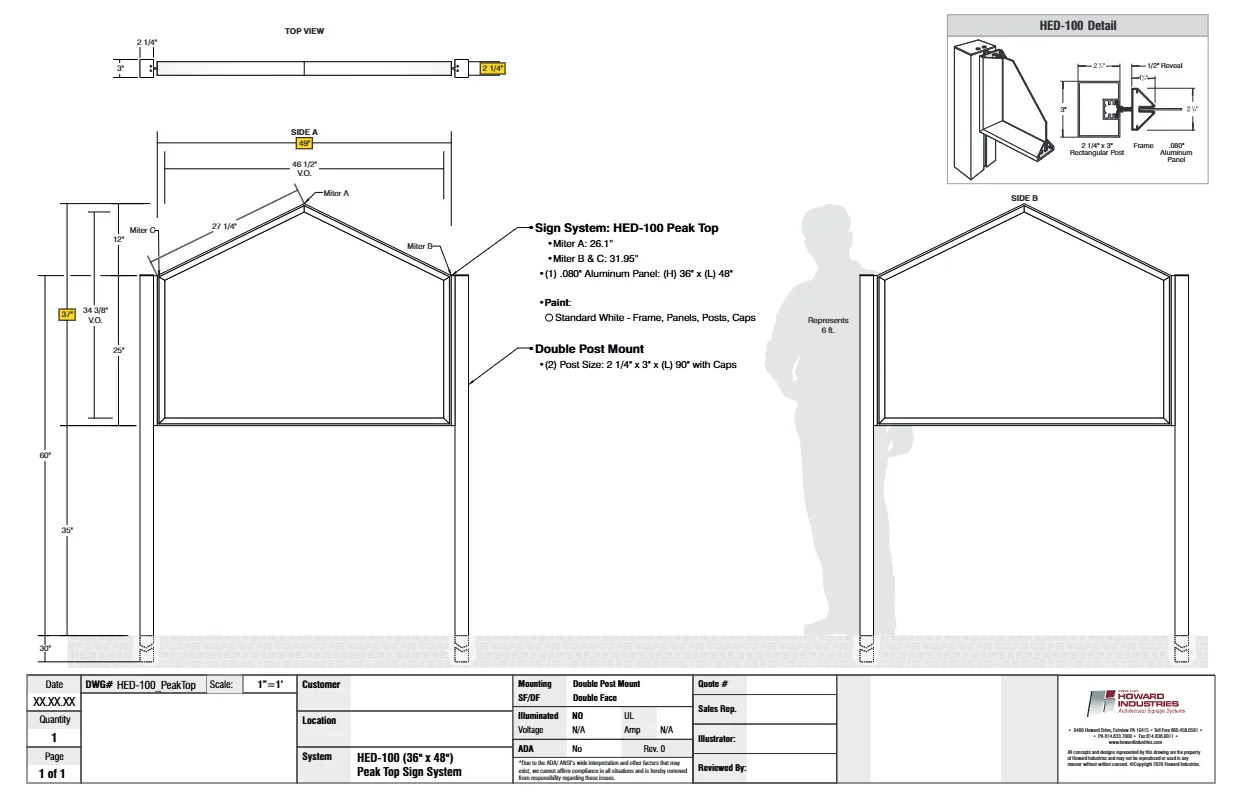

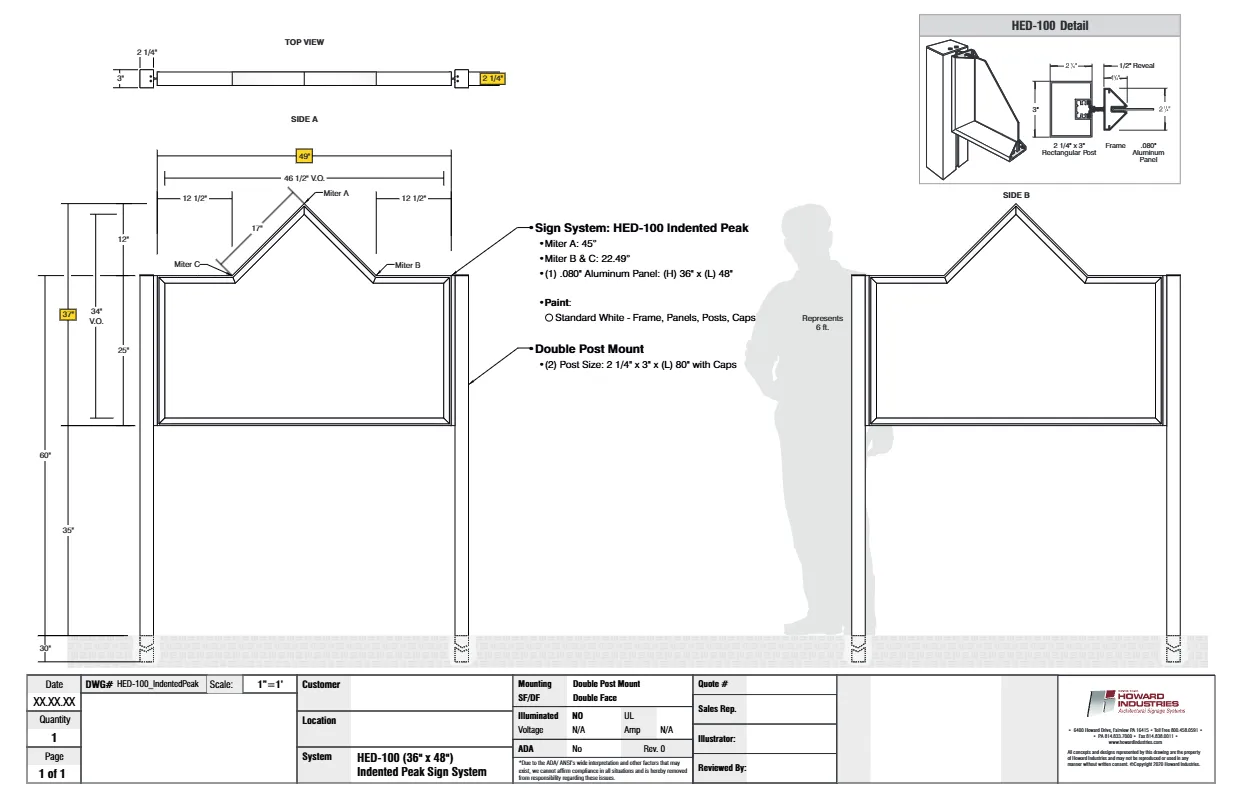

Popular Sign Tops

Max Size:
48" x 96"

Mounting Options:

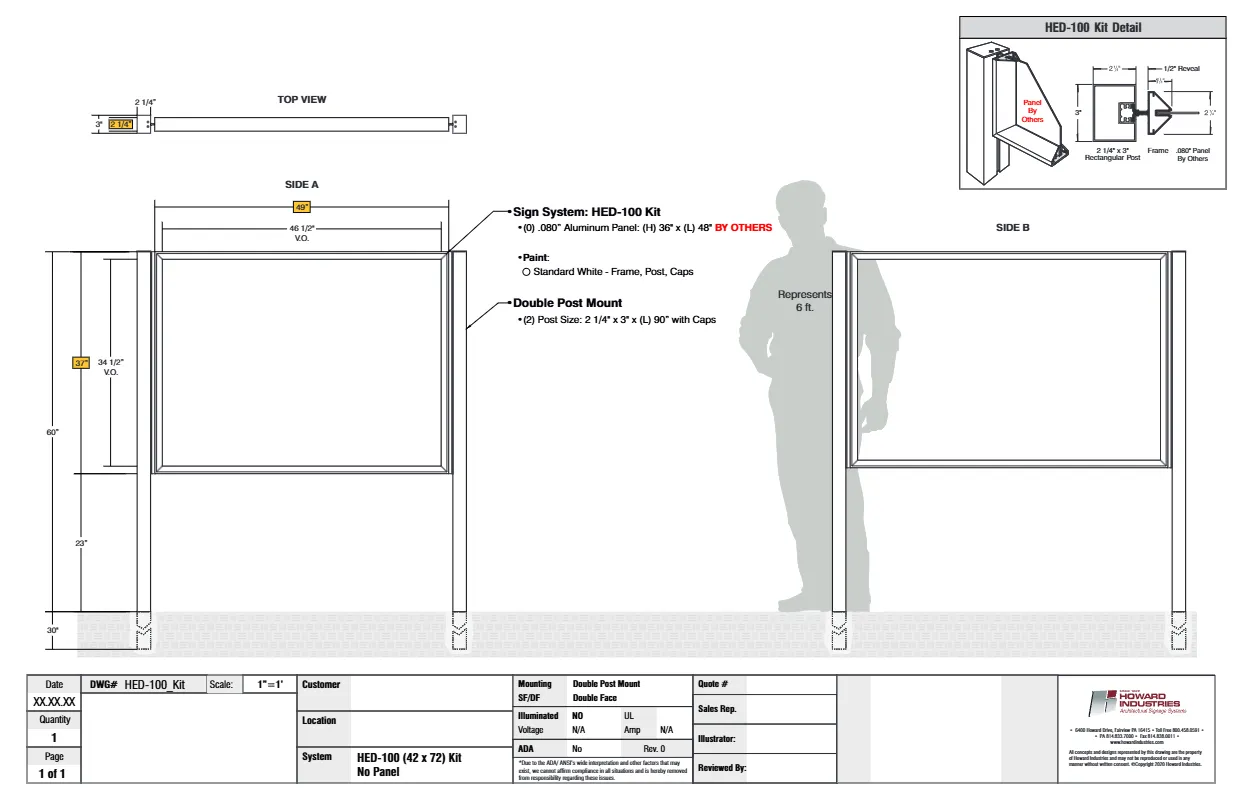

Double Post
Center Post

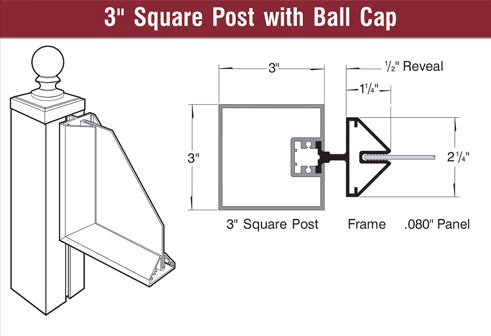

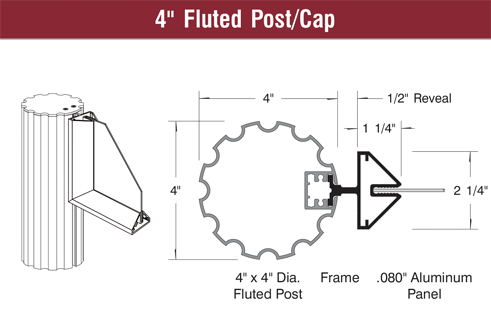

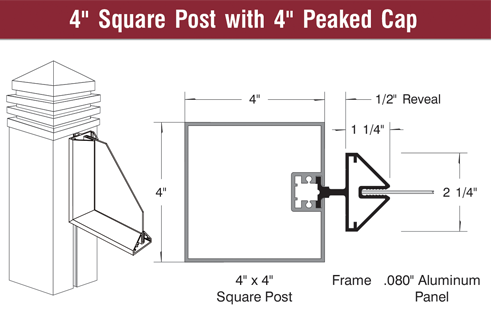

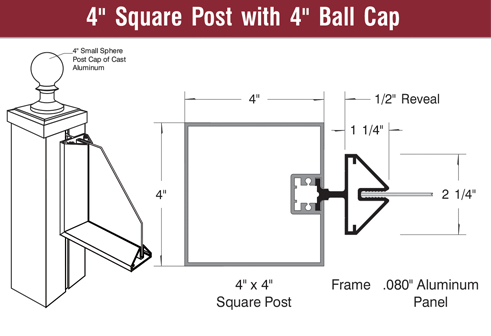

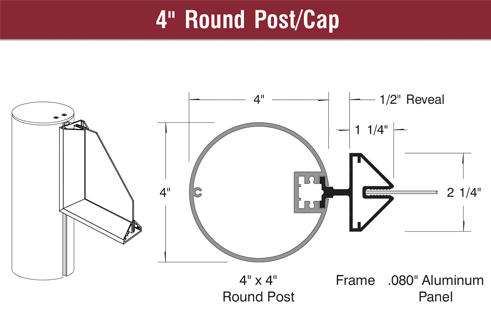

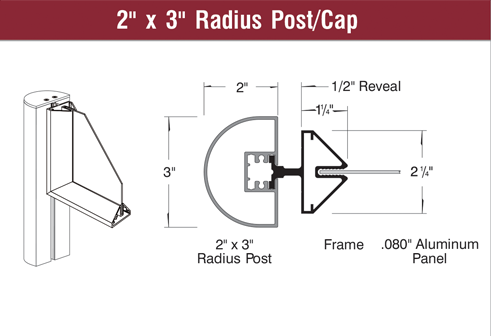

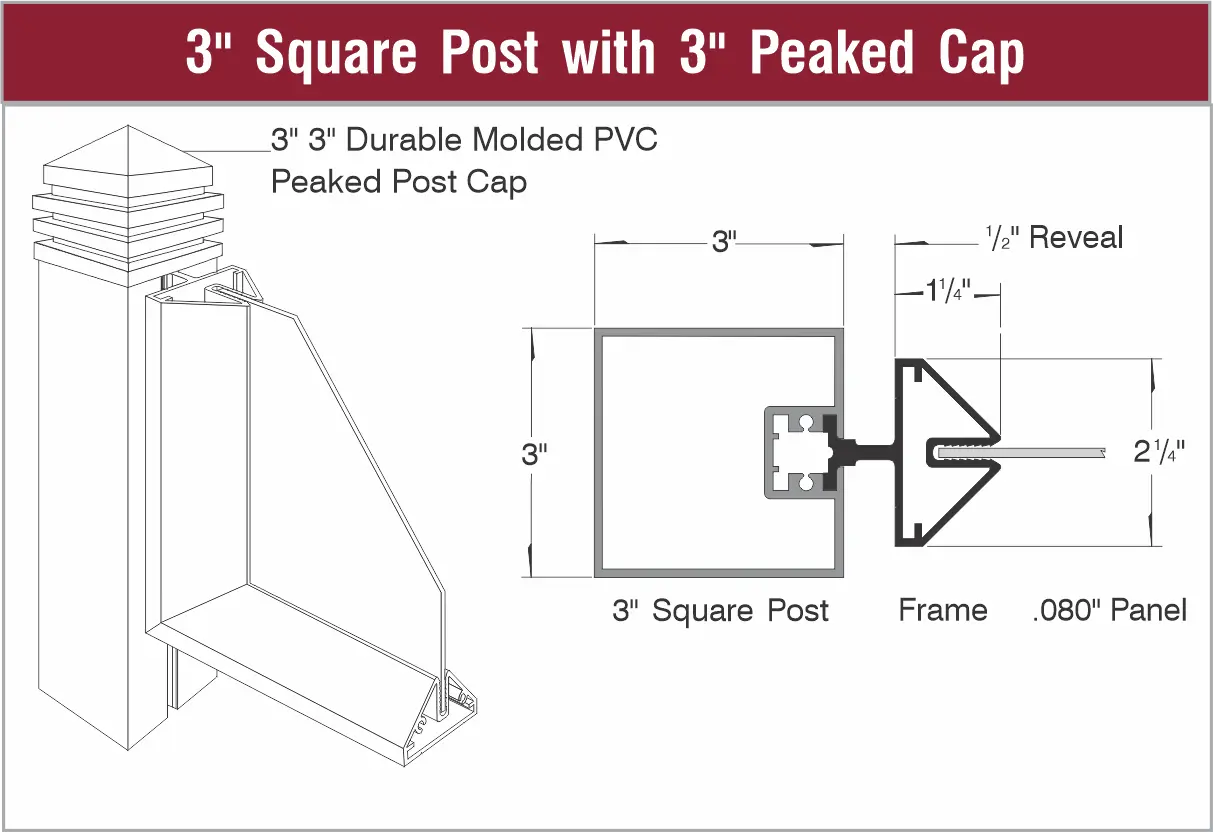

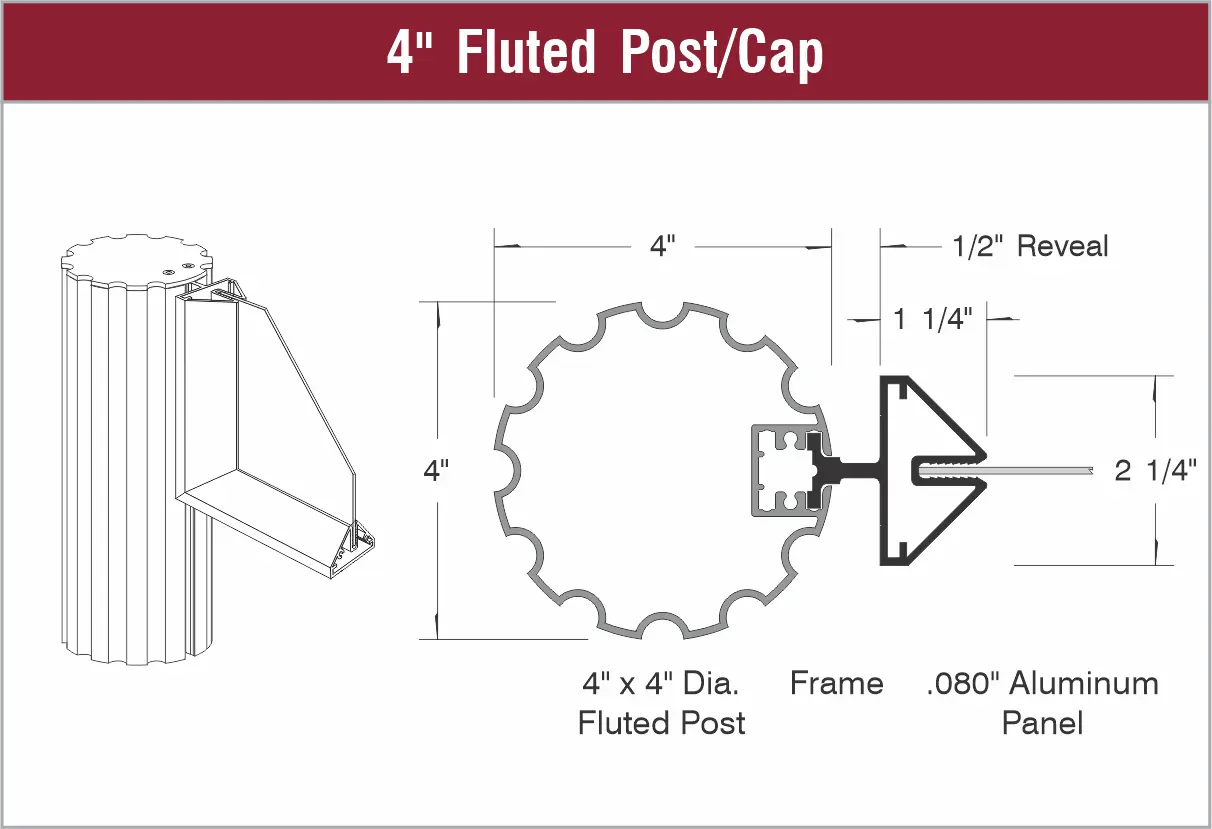

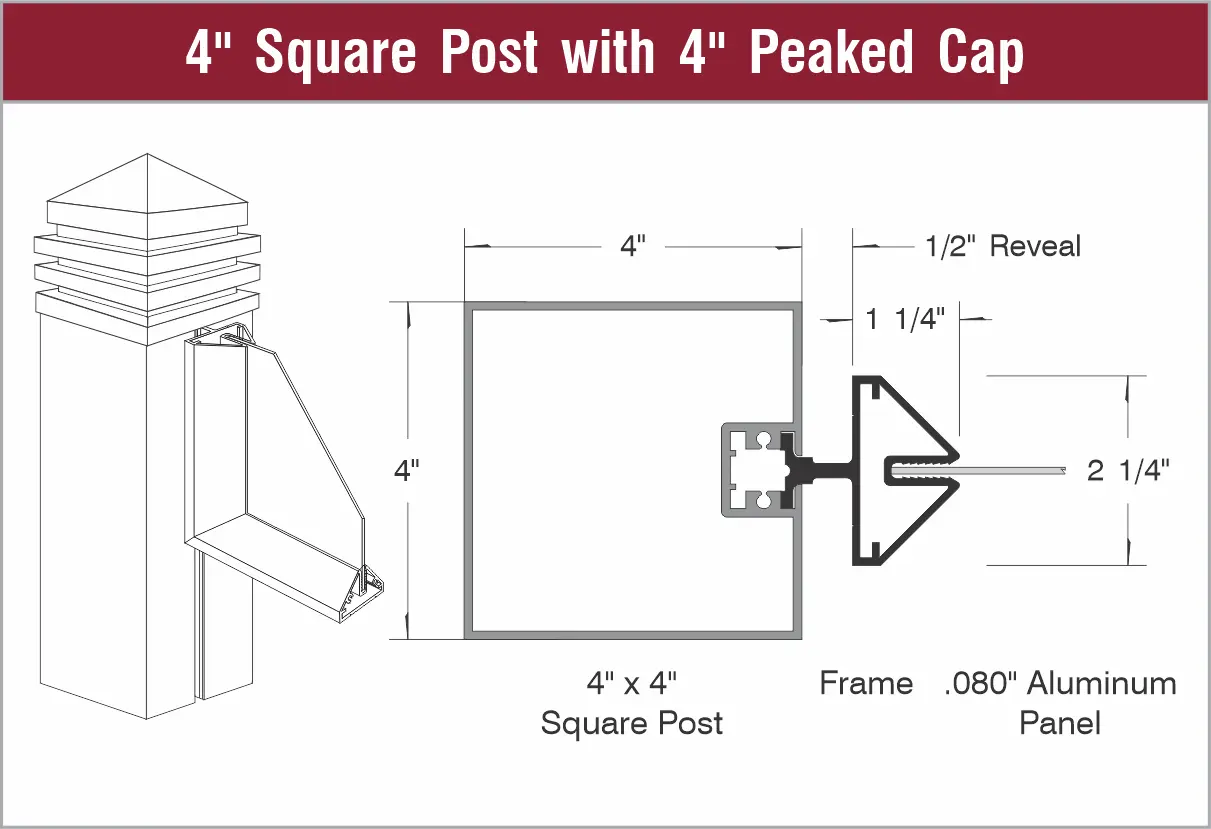

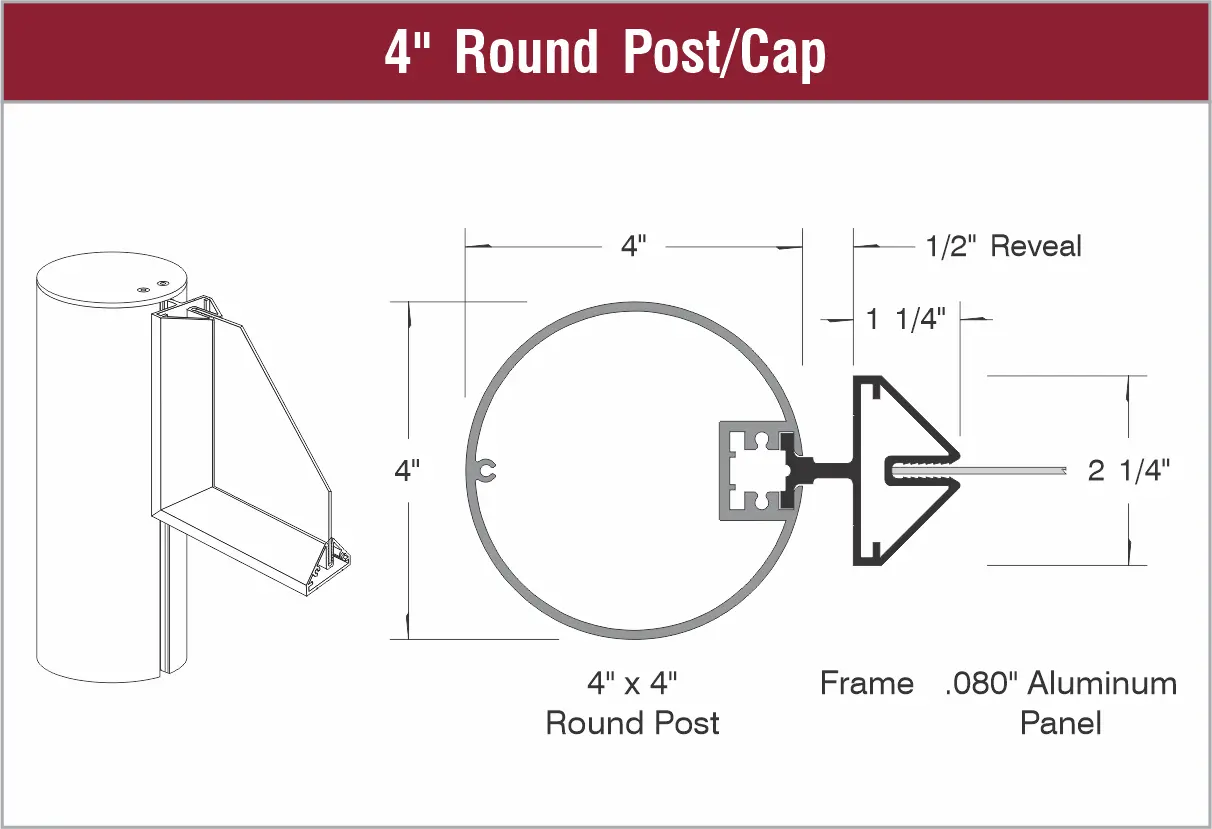

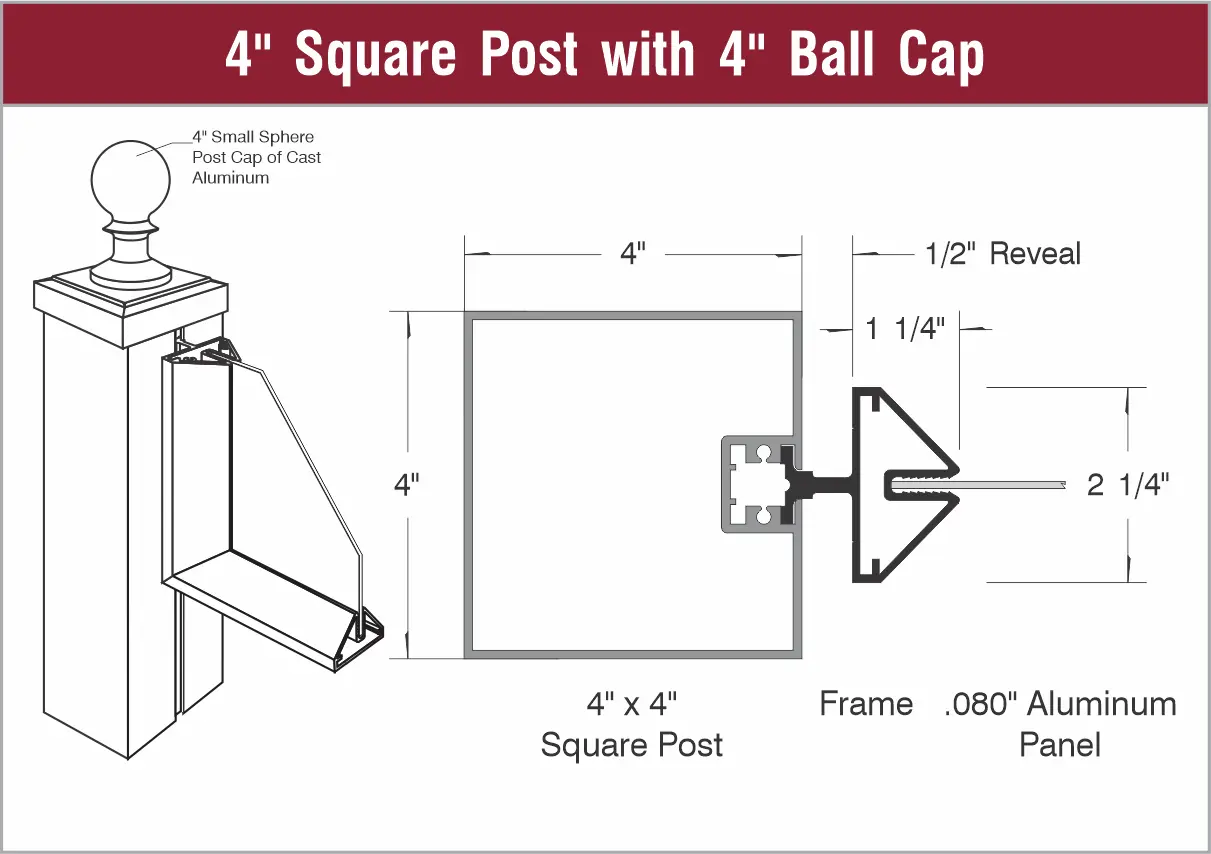

Decorative Post Caps
