HED P-20S Square

The HED P-20S combines 90° aluminum corner extrusions with .125" aluminum panels to create freestanding, equal-sided pylon signs. With a 6" high, recessed, skirted base and choice of crisp or soft radius vertical edge treatments, our square pylons project a truly monolithic look. Signs are evenly illuminated using long life, ultra-efficient LEDs.

Radius Edges, Internal Illumination

Our Pylon sign systems create unique and attractive illuminated and non-illuminated signage with monolithic styling for primary site identification, directions and information. Pylon signs feature clean edge treatments and countersunk fasteners. Removable access panels with countersunk fasteners are built in to accommodate the maintenance of lighting components. U.L. inspection and documentation is available on request. Take advantage of our color matching capabilities and/or custom color options.

Lifting pins for larger signs available upon request

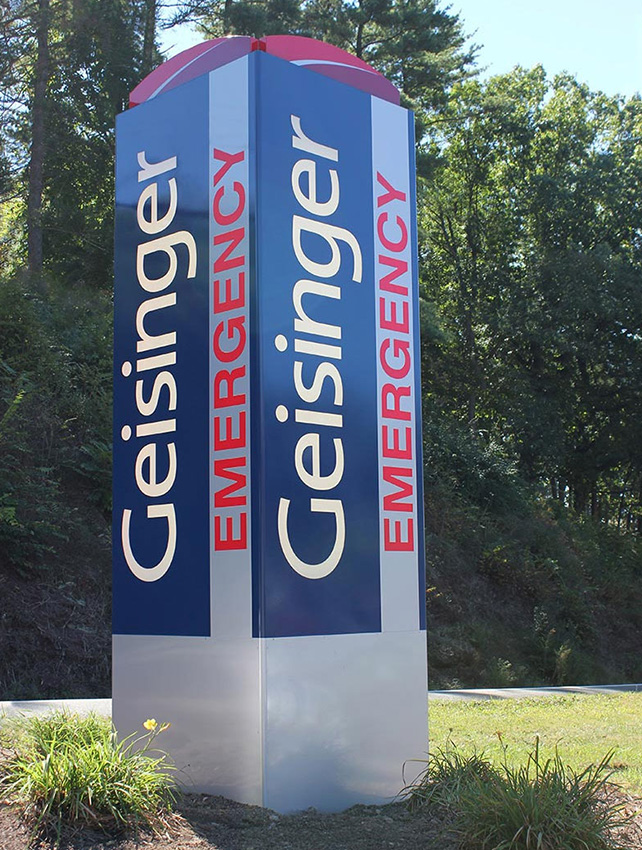

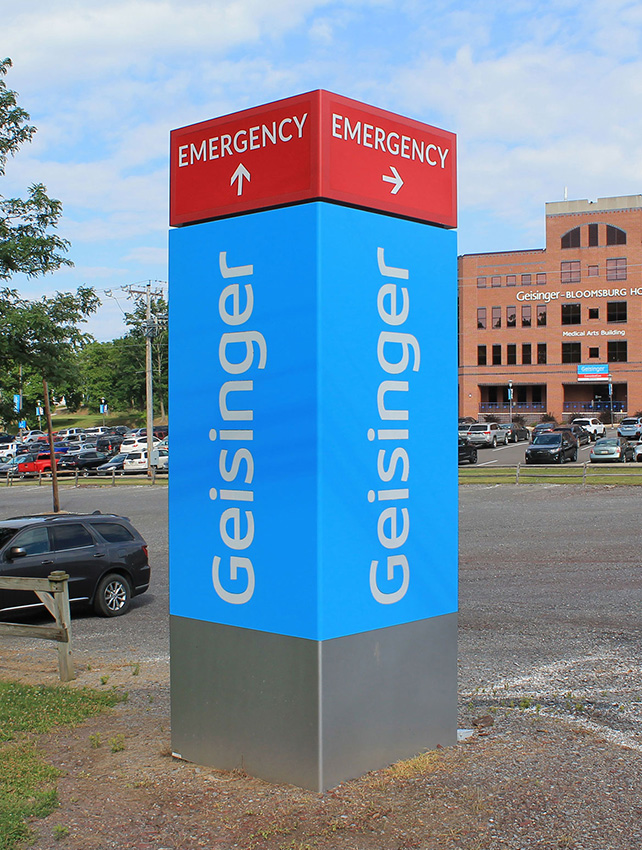

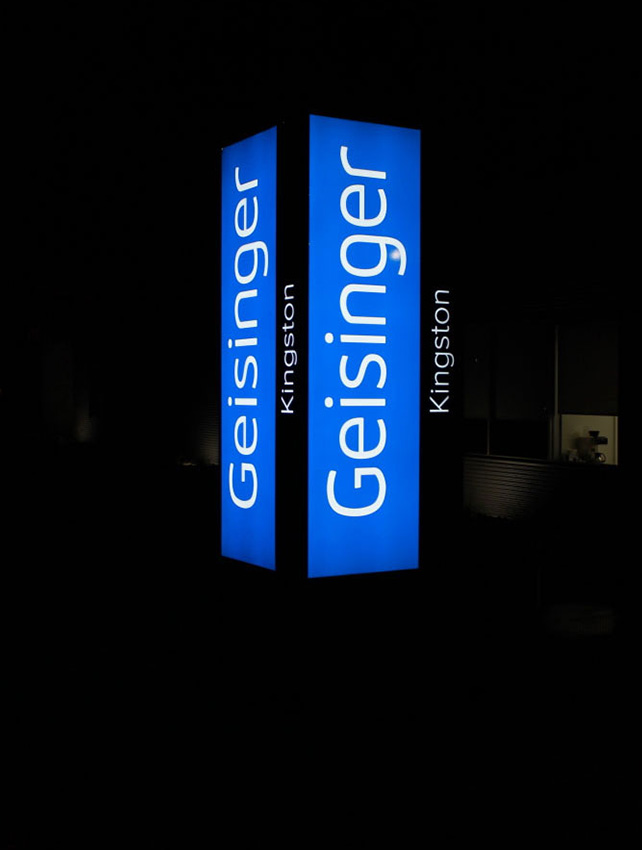

Often Used For

  • Primary Site Identification
  • Secondary Site Identification
  • Directional and Wayfinding Signage
  • Parking Signage
peds salus

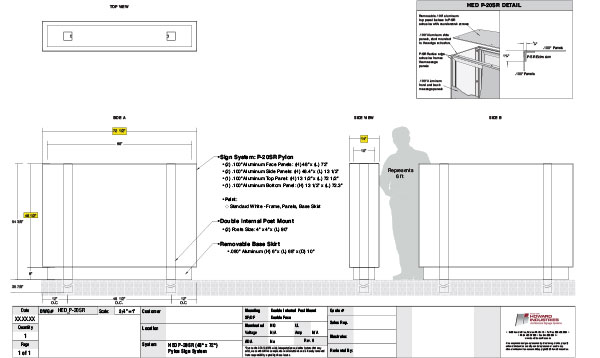

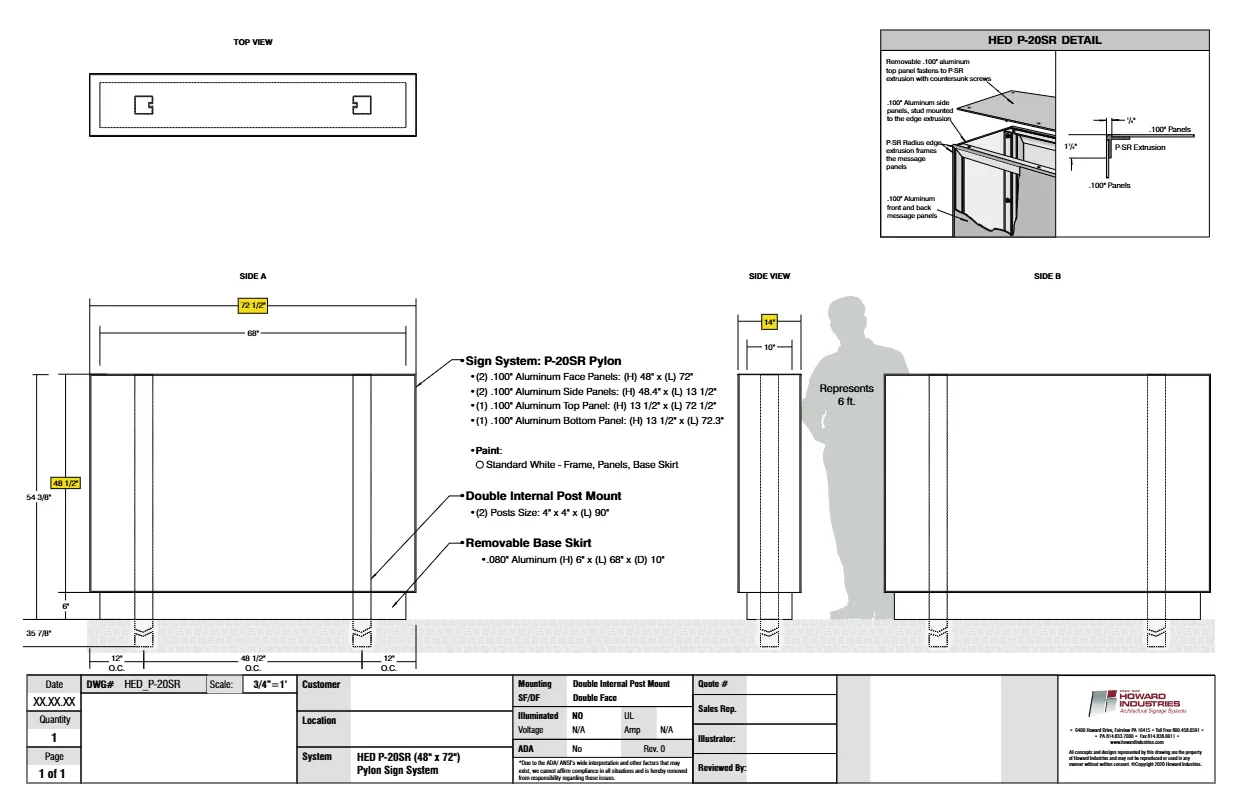

Tech Specs


  1. Removable .090" aluminum top panel
  2. P-20 radius edge extrusion encompass panels
  3. Panels are bonded to p-20 radius edge extrusion
  4. Energy efficient LED units
  5. .090" aluminum message panels

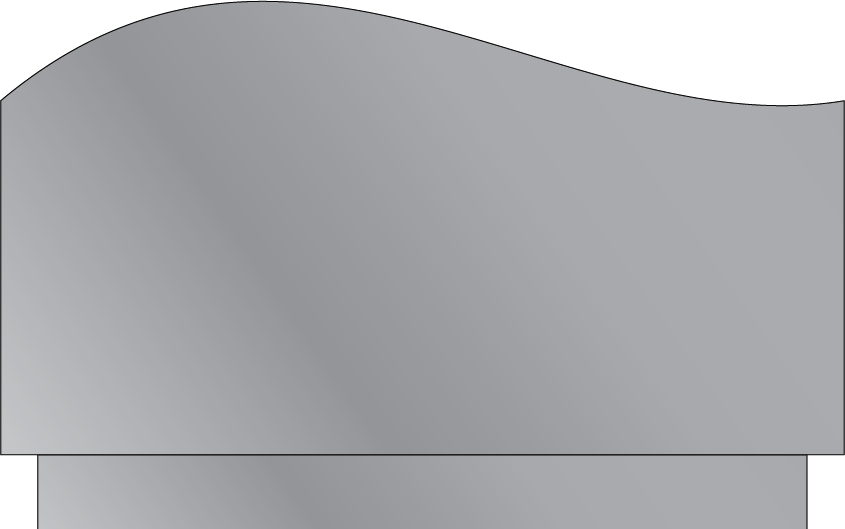

Popular Sign Tops


Max Size:
60" x 120"

Mounting Options:
Base Plate to Stabilizer Bar
Base Plate to Base Plate
Base Plate with Threaded Rod (j-bolts)
Direct Embedment

Three Styles to Choose From

Illuminated signs with aluminum message panels are available with routed copy in three finishes:

Acrylic Backed Copy

acrylic backed copy

Copy is recessed from sign face

Push Thru Flush Copy

push thru flush

Copy is flush with sign face

Push Thru Extended Copy

push thru extended

Copy extends 1/8" beyond sign face
