HED P-20 Monolithic

The HED P-20 combines radius edge extrusions of heavy gauge aluminum with .125" aluminum panels to create two-sided, freestanding, vertical and low-profile pylon signs. Standard signs are 14" to 18" deep, include a 6" high, recessed, aluminum skirted base, and offer custom options for horizontal and vertical reveals. LED lamps provide uniform illumination.

Internal Supports & Base Plates Standard

Our Pylon sign systems create unique and attractive illuminated and non-illuminated signage with monolithic styling for primary site identification, directions and information. Pylon signs feature clean edge treatments and countersunk fasteners. Removable access panels with countersunk fasteners are built in to accommodate the maintenance of lighting components. U.L. inspection and documentation is available on request. Take advantage of our color matching capabilities and/or custom color options.

Lifting pins for larger signs available upon request

Often Used For

  • Primary Site Identification
  • Secondary Site Identification
  • Directional and Wayfinding Signage
  • Parking Signage
ped 20 featured

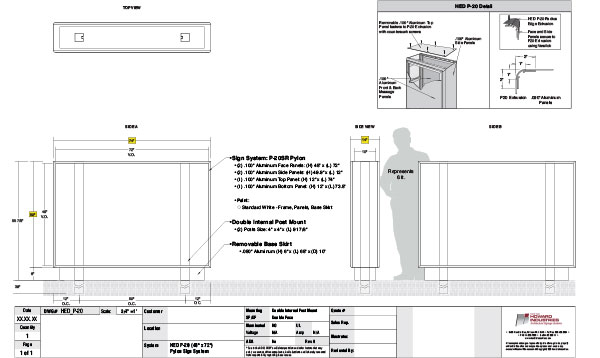

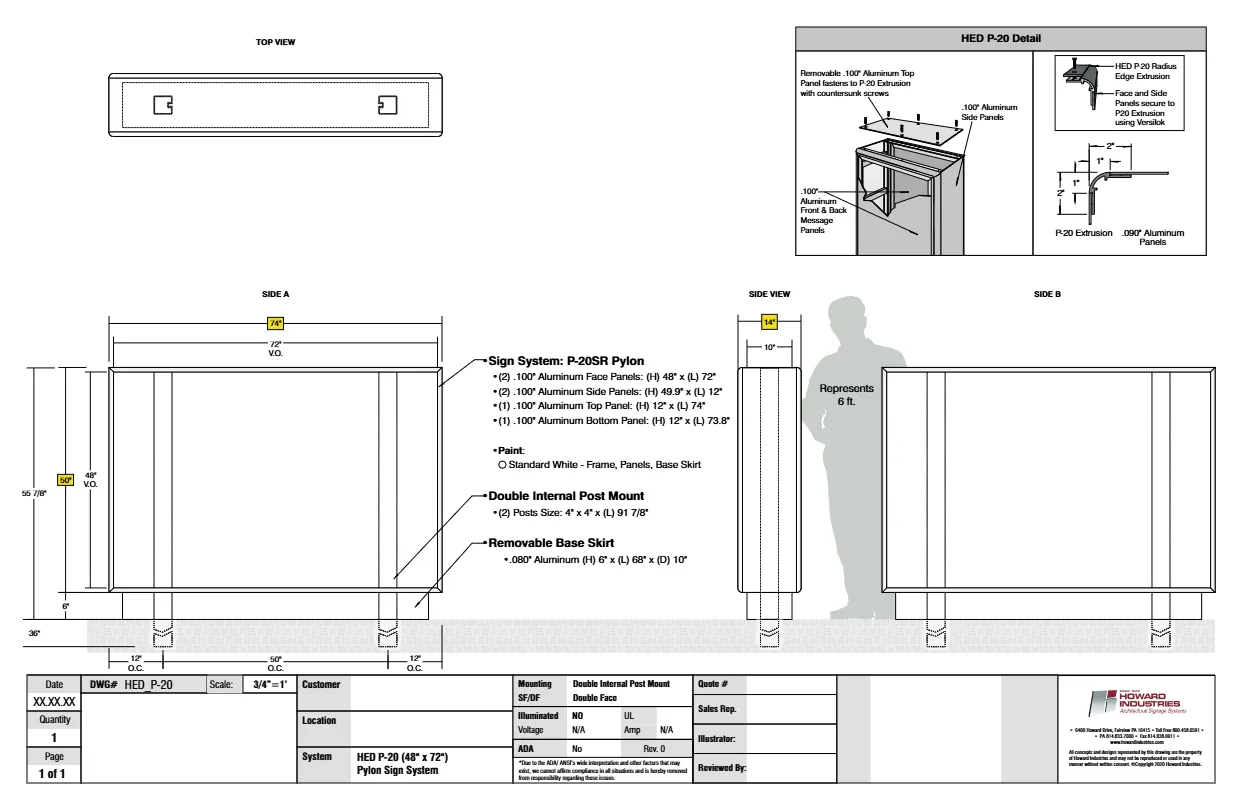

Tech Specs

HED P-20 Monolithic

  1. Removable .090" aluminum top panel
  2. P-20 radius edge extrusion encompass panels
  3. Panels are bonded to P-20 radius edge extrusion
  4. Energy efficient LED units
  5. .090" aluminum message panels

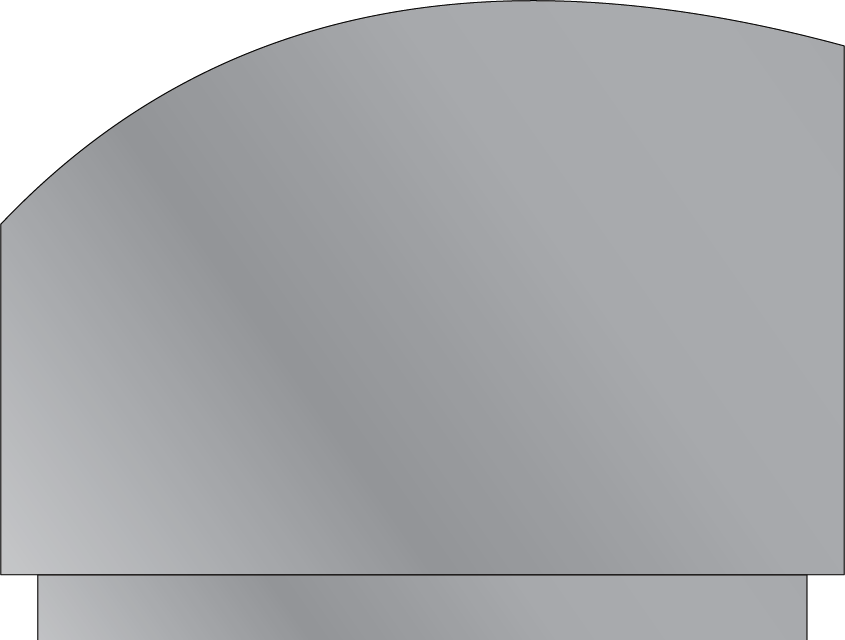

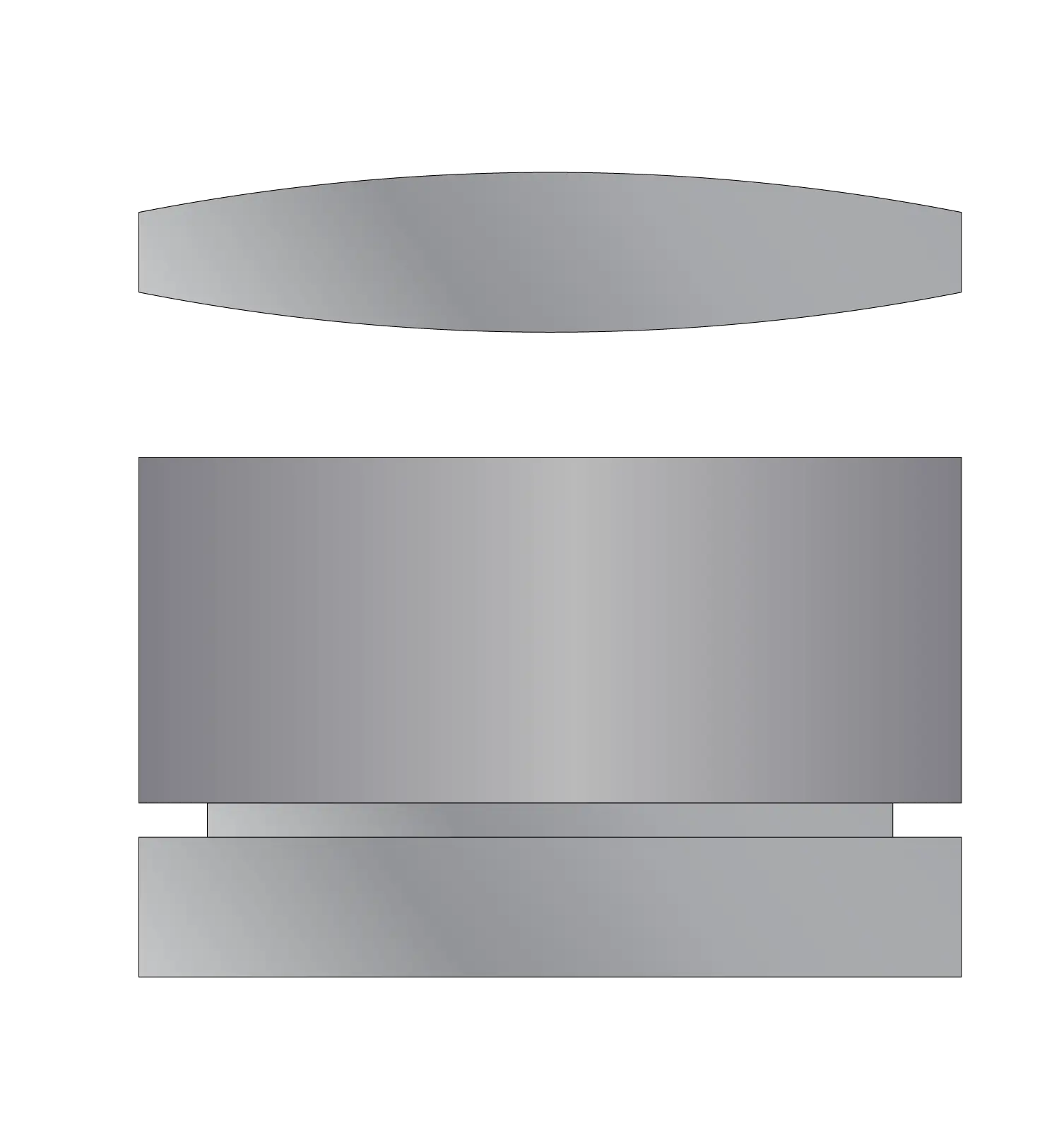

Popular Sign Tops


Max Size:
60" x 120"

Mounting Options:
Base Plate to Stabilizer Bar
Base Plate to Base Plate
Base Plate with Threaded Rod (j-bolts)
Direct Embedment

Three Styles to Choose From

Illuminated signs with aluminum message panels are available with routed copy in three finishes:

Acrylic Backed Copy

acrylic backed copy v2

Copy is recessed from sign face

Push Thru Flush Copy

push thru flush

Copy is flush with sign face

Push Thru Extended Copy

push thru extended

Copy extends 1/8" beyond sign face
