Post & Panel Signage, Aluminum Signage

HED-100 with peaked top and routed panel

HED-100 with peaked top and routed panel

HED-150 with custom vinyl graphics

HED-150 with custom vinyl graphics

HED-200 with radius top

HED-200 with radius top

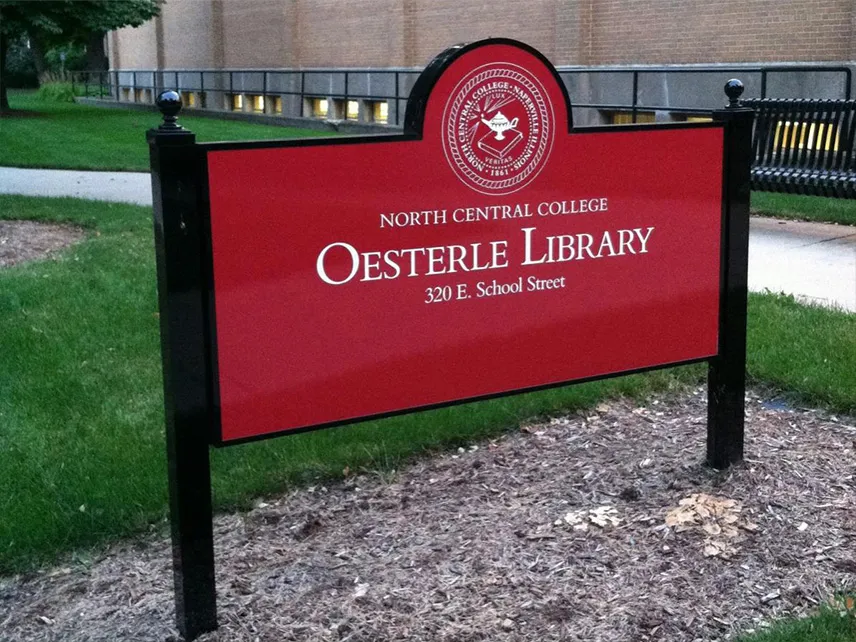

HED-300 with radius top, raised letters, and post caps

HED-300 with radius top, raised letters, and post caps

HED-400 with internal posts and base

HED-400 with internal posts and base skirtcaps

Our all-aluminum post and panel sign systems are perfect for site identification, wayfinding and directional signage applications.  Available in a wide variety of configurations, including double post, flag, ceiling, and wall mount, we have a post and panel model to fit every situation.  Signs can be customized with special paint colors and finishes, decorative posts, designer post caps, wordbars, and custom shaped toppers & panels.  Illumination options, such as internal LED and Incandescent lights, are available on select models.

Post & Panel Kits Available

Most sign systems are available in kit form (sign posts & frame extrusions without panels), giving you a more economical choice. These kits give you the flexibility of using your own panels.


HED-100 Post & Panel Signage System

HED-100 Post & Panel Signage System

The HED-100 post and panel system features a beveled picture style frame that carries a single message panel. The frame assembly slides into slotted 2-1/4" x 3" standard rectangular mounting posts or optional radius posts. Both post styles can carry the frame flush or with a 1/2" reveal. Concealed locking squares hold the frame securely in place.


HED-150 Post & Panel Signage System

HED-150 Post & Panel Signage System

The HED-150 post and panel system is an economical version of the HED-100. The frame slides into our slotted 2-1/4" square mounting posts which carry the frame flush, or with a 1/2" reveal. Post caps and concealed locking squares hold the frame securely in place.


HED-200 Frameless Post & Panel Signage System

HED-200 Frameless Post & Panel Signage System

The HED-200 post and panel system features a frameless message panel that allows for cost effective signs often with unique shapes. U-channels are attached to the panel's vertical edges which then slide into slotted 2-1/4" square mounting posts leaving no exposed fasteners. Set screws hold the u-channels securely in the posts.


HED-225 Flush Face Post & Panel Signage System

HED-225 Flush Face Post & Panel Signage System

The HED-225 post and double panel system features a 2-1/4" cabinet style frame that attaches two panels with no visible retainers and no exposed fasteners for a frameless appearance. A 2" polystyrene core is chemically bonded to the panels for increased strength and durability. The frame assembly slides into slotted 2-1/4" square posts which carry the frame flush or with a 1/2" reveal. Concealed locking squares hold the frame secure.


HED-300 Post & Panel Signage System

HED-300 Post & Panel Signage System

The HED-300 post and double panel system features a 3" deep, traditional cabinet style frame with two message panels chemically bonded to a 2-3/4" polystyrene core. The frame assembly slides into our slotted 2-1/4" x 3" standard rectangular mounting posts or optional radius posts. Both post styles carry the frame flush or with a 1/2" reveal and use concealed locking squares to hold the frame securely in place. Also available with flush faces.


HED-400 Post & Panel Signage System

HED-400 Post & Panel Signage System

The HED-400 post and double panel system features a traditional 4" cabinet style frame with two message panels chemically bonded to a 3-3/4" polystyrene core. The frame assembly slides into our slotted 4" x 4" square mounting posts, 4" radius, round or rectangular posts. All posts carry the frame flush or with a 1/2" reveal and use concealed locking squares to hold the frame securely in place. Also available with flush faces.


HED I-70 Illuminated Signage System

HED I-70 Illuminated Signage System

The HED I-70 system is designed for use with two aluminum or one polycarbonate illuminated face. It features a 7" wide heavy gauge, extruded aluminum cabinet style frame with two adjustable retainers. The frame locks together with corner keys and supports the lamp raceways and electrical components.


HED I-10 Illuminated Signage System

HED I-10 Illuminated Signage System

The HED I-10 system is primarily designed for signs with two illuminated polycarbonate faces or illuminated signs with sign frames having radius tops or radius corners. The system features a 10" wide heavy gauge, extruded aluminum cabinet style frame with two adjustable retainers.


HED I-12 Illuminated Signage System

HED I-12 Illuminated Signage System

The HED I-12 system features a 12" wide heavy gauge, extruded aluminum cabinet style frame and hinged faces for easy access to the electrical components. The HED I-12 system provides vivid illuminated signs with strong visual impact for primary and secondary site identification, directions, and information. The system is also ideal for non-illuminated signs where greater visual emphasis is essential.


HED I-12 Twin Hinge Illuminated Signage System

HED I-12 Twin Hinge Illuminated Signage System

HED I-12 Directory signs are well-suited for churches, schools, and businesses where there is need for a strong identification sign with readily changeable copy to display information or promote events.


HED I-12 Slide Panel Illuminated Signage System

HED I-12 Slide Panel Illuminated Signage System

The HED I-12 "Slide Panel" system creates illuminated signs with easily removable insert panels for tenant listings or information that is likely to change in the future.
